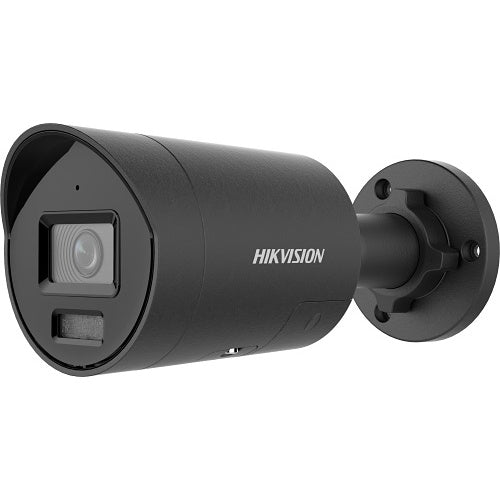

Hikvision DS-2CD3046G3-LIUY/SL(2.8mm)eFBLACK mini bullet, 4MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hikvision DS-2CD3046G3-LIUY/SL(2.8mm)eFBLACK is a mini bullet from the AcuSense range.
Hikvision has been dedicated to developing products with security since its establishment. Hikvision always follows security by design principle and has adopted many methods of security technologies into our product development lifecycle, including terminal security, data security, application security, network security, and privacy protection. In the meantime, the security technologies used by Hikvision are all in compliance with local applicable laws and safety regulations.
These security measures could enhance product's cyber security protection capability and protect your devices as well as your data from malicious cyber attacks. Hikvision Darkfighter 2.0 technology provides 24/7 vivid colorful images with F1.0 advanced lenses, high performance sensors and friendly lighting. F1.0 Super-aperture collects more light to produce brighter images.
Advanced sensor technology can vastly improve the utilization of available light.
Key features
- HIK AI-ISP for excellant noise reduction effect
- 24/7 Colorful imaging via Darkfighter 2.0 technology
- Scene-adaptive WDR
- SU mFocus on human and vehicle classification based on deep learning
- Built-in arrayed dual-microphone for real-time high quality audio security
- Provide real-time security via built-in two-way audio
- Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
- Smart Hybrid Light; Integrates IR and white lights, 3-supplemental lighting modes
- Water and dust resistant (IP67)
- Active strobe light and audio alarm to warn intruders off
Specifications
Technical information
Audio
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Memory
Physical characteristics
Power description
Product information
Storage
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | DS-2CD3046G3-LIUY/SL(2.8mm)eFBLACK |
| Product Series | AcuSense |
| Product Type | Bullet Camera |
Technical information
| Aperture | f/1 |
|---|---|
| Built-in Microphone | Yes |
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Illumination Distance | 40m |
| Lens Mount Type | M16 |
| Lens Type | Fixed Focus |
| Maximum Aperture | f/1 |
| Maximum Frame Rate | 60fps |
| Motion Detection | Yes |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Power Consumption | 12.0000W |
| Protocols | DHCP, DNS, FTP, HTTP, HTTPS, RTP, RTSP, SFTP, SNMP, TLS/SSL, UDP, WebSocket |
| Video Formats | H.264 / AVC, H.264+, H.265 / HEVC, H.265+, MJPEG |
| Wide Dynamic Range | Yes |
Audio
| Audio Encoding | AAC-LC, G.711, G.722.1, G.726 |
|---|---|
| Memory Card Slot | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 40.00m |
Certifications
| CE marking | Yes |
|---|---|
| Ingress protection | IP67 |
Display & graphics
| Image Sensor Size | 1/1.8" |
|---|---|
| Maximum video resolution | 2688 x 1520 |
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 95% |
| Operating Temperature (T-T) | -30-60°C |
| Storage Temperature (T-T) | -30-60°C |
Exposure
| Longest Shutter Speed | 1 Second |
|---|---|
| Minimum Illumination | 0.0001lux |
| Shortest Shutter Speed | 1/100000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 2.80mm |
Memory
| Memory Card Supported | microSD, microSDHC, microSDXC |
|---|
Physical characteristics
| Colour | Black |
|---|---|
| Durability | Dust Resistant, Water Resistant |
| Form Factor | Bullet |
| Material | Metal |
Power description
| Input Voltage | 12V DC |
|---|---|
| Maximum Power Consumption | 16.00W |
| Power over Ethernet (PoE) | Yes |
| Power Source | DC Power, PoE (Power over Ethernet) |
Product information
| Diameter | 74.40mm |
|---|---|
| Length | 176.30mm |
Storage
| Storage Type | SD Card |
|---|
Video
| Maximum Resolution | 2688 x 1520 |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Impact protection | IK10 |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Power Source | DC Power, PoE (Power over Ethernet) |
