Hikvision DS-2CD2543G2-IS 4MP AcuSense Mini Dome IP Camera, 4mm Fixed Lens

Please note: this is a non-returnable item (excluding faulty goods)

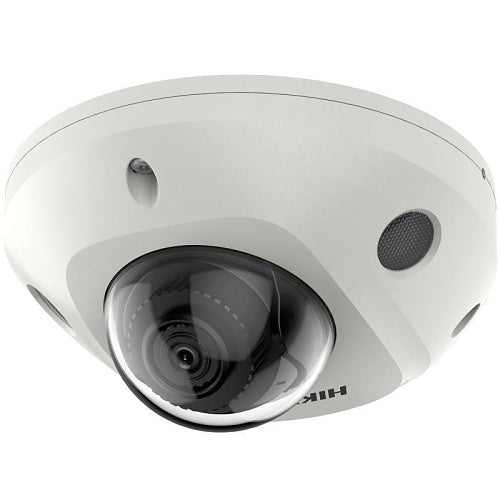

The Hikvision DS-2CD2543G2-IS(4MM) is a 4 MP AcuSense fixed mini dome network camera with a 4 mm lens, a built-in microphone and audio and alarm terminals.

This is the audio and alarm version of Hikvision's 4 MP AcuSense mini dome, supplied with the 4 mm fixed focal lens for a tighter, longer view than the 2.8 mm option. The 1/3-inch progressive scan CMOS sensor records at 2688 x 1520, and 120 dB wide dynamic range keeps faces readable when a doorway or window is throwing hard backlight into the frame. AcuSense deep-learning analytics sit on the camera itself, classifying human and vehicle targets so that line crossing and intrusion alarms can be limited to the things that actually matter rather than every moving branch.

The aluminium base and plastic cover carry IP67 and IK08 ratings, the body measures Ø110 mm by 57.4 mm, and it runs on 802.3af PoE or on 12 V DC.

Key features

• 4 MP AcuSense imaging: A 1/3-inch progressive scan CMOS sensor records up to 2688 x 1520 pixels, at 25 fps on 50 Hz and 30 fps on 60 Hz.
• Human and vehicle classification: Deep-learning perimeter protection separates people and vehicles from other movement, so line crossing and intrusion alarms can be restricted by target type.
• 4 mm fixed lens: Gives an 83.7° horizontal, 43.0° vertical and 100.3° diagonal field of view at F1.6, with a depth of field from 1.6 m to infinity.
• 120 dB wide dynamic range: Holds detail in bright and dark parts of the same frame, backed by BLC, HLC and 3D digital noise reduction.
• Infrared to 30 m: 850 nm smart supplement light with an IR cut filter for day, night, auto or scheduled switching.
• Built-in microphone with audio and alarm I/O: The -IS version adds one line-in and one line-out on two-core terminal blocks, plus one alarm input and one alarm output rated 12 V DC, 20 mA.
• PoE or 12 V DC: IEEE 802.3af Class 3 at up to 6.5 W, or 12 V DC ±25% at up to 5.5 W through a 5.5 mm coaxial plug with reverse polarity protection.
• Edge and network recording: A built-in microSD slot takes cards up to 512 GB, with NAS recording over NFS or SMB/CIFS and auto network replenishment to backfill gaps.
• IP67 and IK08: Sealed to IEC 60529 against dust and water, and rated IK08 to IEC 62262 for impact. Specified from -30 °C to 60 °C.
• Open integration: ONVIF Profile S and Profile G, ISAPI and the Hikvision SDK, with HTTPS, 802.1X, IP address filtering and a security audit log.

Use cases

At 4 mm this camera suits a corridor, a driveway, a car park bay or an approach path rather than a wide open forecourt. Hikvision quotes DORI figures of 85 m to detect, 34 m to observe, 17 m to recognise and 9 m to identify. A person can still be identified at the far end of a small yard.

The compact mini dome shape and the IK08 rating suit shop floors, receptions, stairwells, school corridors and communal entrances where a full-size dome would be conspicuous or a target. Because it is the -IS variant, a door contact, a break-glass or a sounder can be wired straight to the alarm terminals and tied into the same recording. The line-in and line-out pair supports an external microphone or a talk-back speaker, where audio evidence or a live challenge matters.

IP67 sealing and the -30 °C to 60 °C range mean the same part number covers external walls, soffits and unheated stores as well as the indoor positions it is most often specified for.
