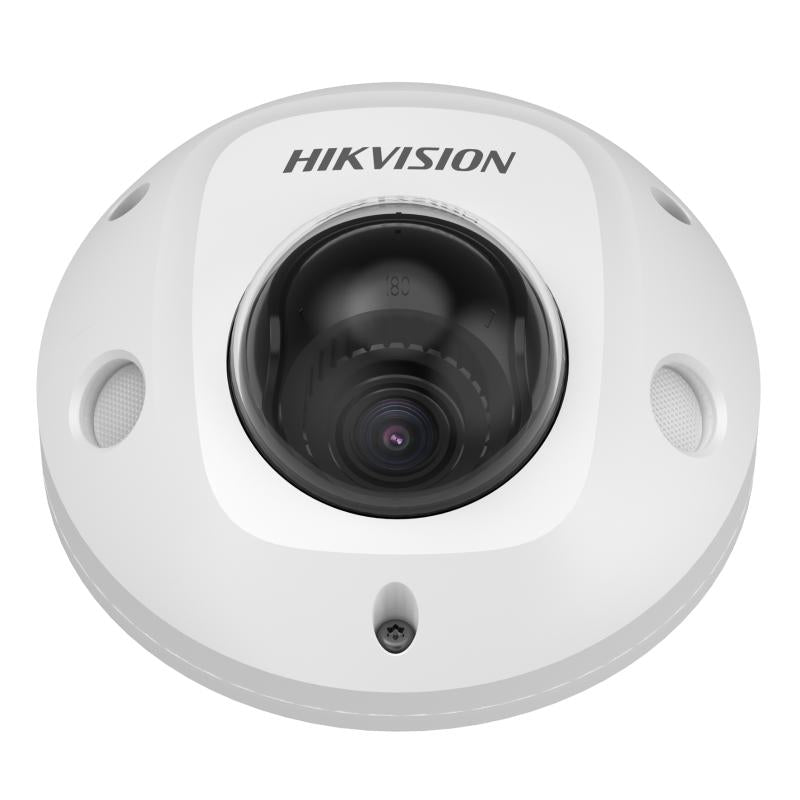

Hikvision DS-2XM6726G1-ID(4MM) Mobile Dome Camera, 2MP, 4mm
About this product
The Hikvision DS-2XM6726G1-ID(4MM) is a 2MP mobile dome camera with a 4 mm fixed lens, built to IP67 and IK10 and carrying automotive and railway approvals (EN50155-2017, EN45545 and E-MARK (ECE R10)). It records up to 1920 × 1080 with 120 dB WDR, has an infrared fill light lamp with an IR range of up to 30 m, and its deep learning functions support the detection of passenger congestion in carriages and of articles and personnel left behind in the carriage.
Key features
- 2MP, 1/2.8" CMOS progressive scan sensor, max. resolution 1920 × 1080
- 4 mm fixed lens (F1.6): horizontal FOV 87°, vertical FOV 44°, diagonal FOV 104°
- Infrared fill light lamp, IR range up to 30 m at 850 nm
- 120 dB WDR for clear imaging against strong back light
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Powered by 9-36V or PoE (802.3af, 36 V to 57 V), max. 7.5 W
- Detection of passenger congestion in carriages and of articles and personnel left behind in the carriage
- 1 built-in mic, mono sound
Frequently asked questions
How is the DS-2XM6726G1-ID(4MM) powered?
The -ID model takes 9-36V or PoE (802.3af, 36 V to 57 V), through an Ø 5.5 mm coaxial power plug or PoE, with power of max. 7.5 W on either.
What field of view does the 4 mm lens give?
Horizontal FOV 87°, vertical FOV 44° and diagonal FOV 104°, with a max. aperture of F1.6.
How far can it see in the dark?
Its infrared fill light lamp gives an IR range of up to 30 m, at an IR wavelength of 850 nm.
What automotive and railway approvals does it have?
Its approvals include the automotive and railway standards EN50155-2017, EN45545 and E-MARK (ECE R10), and its deep learning functions support the detection of passenger congestion in carriages.
Does it record audio?
Yes. It has 1 built-in mic, mono sound, with audio compression G711U, G711A, G726, AAC, G722 and PCM.
What local storage does it have?
A built-in Micro TF slot, up to 256 GB (not for baseline).
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2XM6726G1-ID(4MM) |
| Manufacturer Part Number (MPN) | DS-2XM6726G1-ID(4MM) |
| Image Sensor | 1/2.8" CMOS Progressive Scan |
| Resolution | 2MP |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | 0.002Lux @ (F1.6, AGC ON), 0lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan:-30°~+30°, Tilt: 0°~75°, Rotate: 0°~ 360° |
| Focal Length & FOV | 4 mm, horizontal FOV 87°, vertical FOV 44°, diagonal FOV 104° |
| Max. Aperture (4 mm) | F1.6 |
| Lens Mount | M12 |
| Focus | Manual focus |
| Supplement Light Type | Infrared fill light lamp |
| Smart Supplement Light | Support |
| IR Wavelength | 850 nm |
| IR Range | Up to 30 m |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Video Compression (main stream) | H.264, H.265, H.264+, H.265+ |
| Stream Type | Main stream, sub stream, third stream |
| Audio Compression | G711U, G711A, G726, AAC, G722, PCM, AAC |
| Simultaneous Live View | Up to 8 channels |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| User Management | Up to 16 users, 3 levels: Administrator, Operator and User |
| WDR | 120 dB |
| SNR | > 50 dB |
| Image Enhancement | BLC, HLC, 2DNR ,3DNR |
| Video Output | Not supported |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Audio | 1 built-in mic, mono sound |
| TF Card Storage | Built-in Micro TF Slot, up to 256 GB (not for baseline) |
| Power Supply | 9-36V& PoE (802.3af, 36 V to 57 V) |
| Power Interface | Ø 5.5 mm coaxial power plug, DC power supply, or PoE power supply |
| Power | PoE: 0.30 A to 0.20 A, max: 7.5 W; DC: 0.83 A to 0.21 A, max:7.5 W |
| Cable Length | 50 cm |
| Product Dimension | 110 mm × 57.4 mm (4.3" × 2.26") |
| Product Weight | Approx. 452 g (1 lb.) |
| Protection | IP67, IK10 |
| Camera Material | Metal |
| Startup And Operating Conditions | -30 °C to 75°C (-22 °F to 167°F), humidity 95% or less (non-condensing) |
| Automotive And Railway | EN50155-2017; EN45545; E-MARK (ECE R10) |
