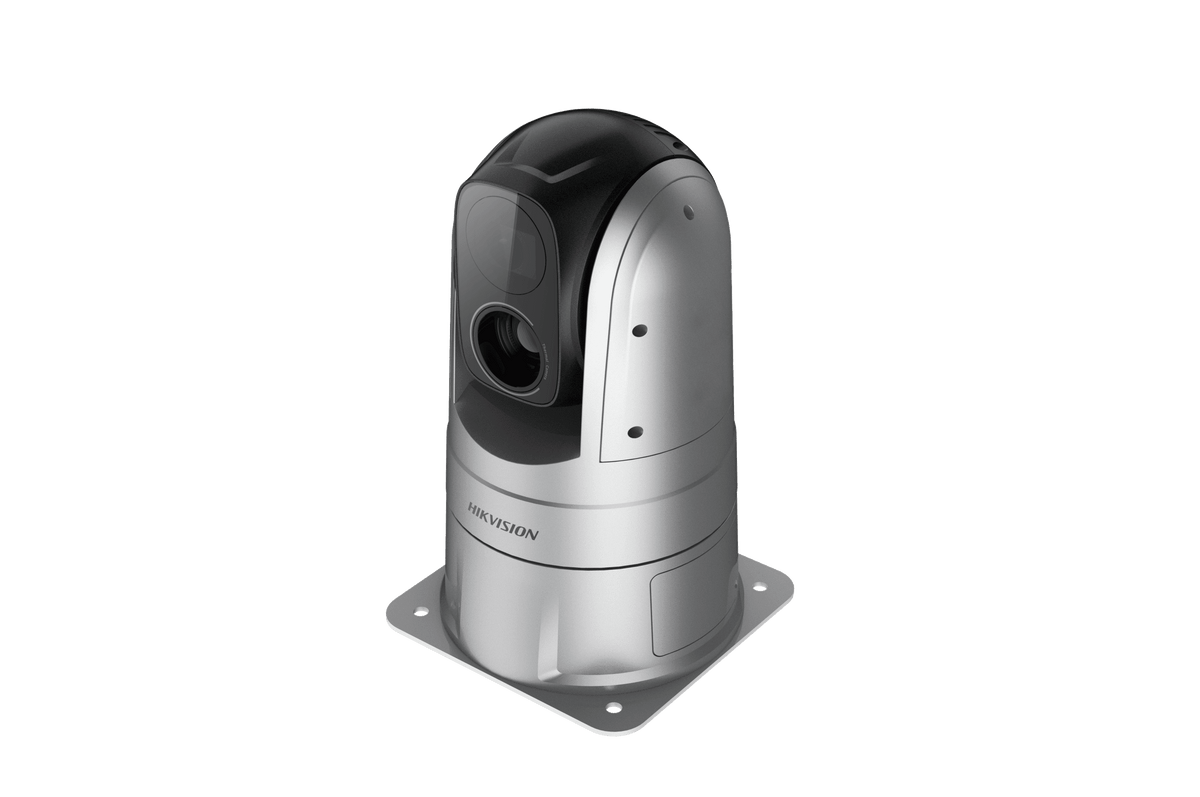

Hikvision DS-2TD4568-25A4/W Bi-spectrum Mobile Thermal PTZ Camera, 640 × 512 Thermal, 4G
Free Delivery
About this product
The Hikvision DS-2TD4568-25A4/W is a bi-spectrum mobile thermal PTZ camera that supports temperature measurement and perimeter protection, pairing a 640 x 512 thermal module with a 4 MP optical module. Hikvision lists applications in fields such as fire engine and patrol vehicle use, in scenarios like perimeter protection and construction site work.
Key features
- Thermal module: 640 x 512 VOx uncooled sensor, 12 μm pixel pitch, 25 mm lens, NETD less than 35 mK (@25 °C,F#=1.0)
- Optical module: 2560 × 1440, 4 MP with a 4.8 mm～120 mm, 25X focal length
- Temperature measurement from -20 °C to 150 °C with ± 8 °C accuracy
- LTE-TDD/LTE-FDD/WCDMA 4G wireless transmission with Micro SIM card support, plus 2.4GHz Wi-Fi
- GPS positioning function
- Strong anti-shake capacity and E-mark and EN45545 on-board certification
- IR distance up to 100m
- IP67 standard with TVS 4000V lightning protection
Frequently asked questions
Can the DS-2TD4568-25A4/W send video over a mobile network?
Yes. It supports LTE-TDD/LTE-FDD/WCDMA 4G wireless network transmission with a Micro SIM card, and also has 2.4GHz Wi-Fi.
Can it be used on vehicles?
It has a professionally designed structure with strong anti-shake capacity and carries E-mark and EN45545 on-board certification; Hikvision lists fire engine and patrol vehicle applications.
What temperatures can it measure?
From -20 °C to 150 °C (-4 °F to 302 °F), with a temperature accuracy of ± 8 °C (±14.4 °F).
What power supply does it need?
The power supply is DC8V~DC36V, and max. power consumption is less than 25 W.
Does it have GPS?
Yes. It supports a GPS positioning function.
How far does the IR reach?
IR distance is up to 100m, with IR intensity and angle automatically adjusted.
Technical Details
Specifications
Brand
Hikvision
Model
DS-2TD4568-25A4/W
Manufacturer Part Number (MPN)
DS-2TD4568-25A4/W
Product type
Bi-spectrum Mobile Thermal PTZ Camera
Thermal Image Sensor
VOx Uncooled Focal Plane Arrays
Thermal Resolution
640 x 512
Spectral Range
8 μm to 14 μm
Pixel Pitch
12 μm
Thermal Focal Length
25 mm
NETD
Less than 35 mK (@25 °C,F#=1.0)
Thermal Field of View
17.4° × 13.9° (H × V)
Thermal Aperture
F1.0
Thermal Digital Zoom
×1, ×2, ×4, ×8
Optical Image Sensor
1/2.8" Progressive Scan CMOS
Optical Resolution
2560 × 1440, 4 MP
Optical Focal Length
4.8 mm～120 mm, 25X
Optical Field of View
55° ×33° (H × V)~2.4° ×1.4° (H × V)
Optical Aperture (Range)
F1.0-F1.6
Optical Min. Illumination
Color: 0.05 Lux @ (F1.3, AGC ON), B/W: 0.01 Lux @ (F1.3, AGC ON)
WDR
120 dB
Target Coloration
Supported in white hot and black hot mode(Up to 15 types)
Movement Range
Pan: 360° Continuous Rotate; Tilt: From -20° to + 90° (auto flip)
Presets
300 in total, 273 are configurable.
IR Distance
Up to 100m
IR Intensity and Angle
Automatically adjusted
VCA
4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement
Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
Temperature Range
-20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy
± 8 °C (±14.4 °F)
Network Storage
MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
API
ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
Client
iVMS-4200, Hik-Connect
Simultaneous Live View
Up to 20 channels
SIM Card Type
MicroSIM
Mobile Standard
LTE FDD/LTE TDD/WCDMA
Wi-Fi standard
IEEE802.11b, 802.11g, 802.11n
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface; 1, RS-485 interface
Power Supply
DC8V~DC36V
Power Consumption
Max. ＜ 25 W
Working Humidity
90% or Less
Protection Level
IP67 Standard; TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions
Ø 180mm×300mm(height)
Weight
Approx. 4.5 kg (10.8 lb)
Approval
E-mark and EN45545 on-board certification
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2TD4568-25A4/W |
| Manufacturer Part Number (MPN) | DS-2TD4568-25A4/W |
| Product type | Bi-spectrum Mobile Thermal PTZ Camera |
| Thermal Image Sensor | VOx Uncooled Focal Plane Arrays |
| Thermal Resolution | 640 x 512 |
| Spectral Range | 8 μm to 14 μm |
| Pixel Pitch | 12 μm |
| Thermal Focal Length | 25 mm |
| NETD | Less than 35 mK (@25 °C,F#=1.0) |
| Thermal Field of View | 17.4° × 13.9° (H × V) |
| Thermal Aperture | F1.0 |
| Thermal Digital Zoom | ×1, ×2, ×4, ×8 |
| Optical Image Sensor | 1/2.8" Progressive Scan CMOS |
| Optical Resolution | 2560 × 1440, 4 MP |
| Optical Focal Length | 4.8 mm～120 mm, 25X |
| Optical Field of View | 55° ×33° (H × V)~2.4° ×1.4° (H × V) |
| Optical Aperture (Range) | F1.0-F1.6 |
| Optical Min. Illumination | Color: 0.05 Lux @ (F1.3, AGC ON), B/W: 0.01 Lux @ (F1.3, AGC ON) |
| WDR | 120 dB |
| Target Coloration | Supported in white hot and black hot mode(Up to 15 types) |
| Movement Range | Pan: 360° Continuous Rotate; Tilt: From -20° to + 90° (auto flip) |
| Presets | 300 in total, 273 are configurable. |
| IR Distance | Up to 100m |
| IR Intensity and Angle | Automatically adjusted |
| VCA | 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. |
| Temperature Measurement | Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line) |
| Temperature Range | -20 °C to 150 °C (-4 °F to 302 °F) |
| Temperature Accuracy | ± 8 °C (±14.4 °F) |
| Network Storage | MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| API | ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T) |
| Client | iVMS-4200, Hik-Connect |
| Simultaneous Live View | Up to 20 channels |
| SIM Card Type | MicroSIM |
| Mobile Standard | LTE FDD/LTE TDD/WCDMA |
| Wi-Fi standard | IEEE802.11b, 802.11g, 802.11n |
| Communication Interface | 1, RJ45 10 M/100 M Self-adaptive Ethernet interface; 1, RS-485 interface |
| Power Supply | DC8V~DC36V |
| Power Consumption | Max. ＜ 25 W |
| Working Humidity | 90% or Less |
| Protection Level | IP67 Standard; TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Dimensions | Ø 180mm×300mm(height) |
| Weight | Approx. 4.5 kg (10.8 lb) |
| Approval | E-mark and EN45545 on-board certification |
