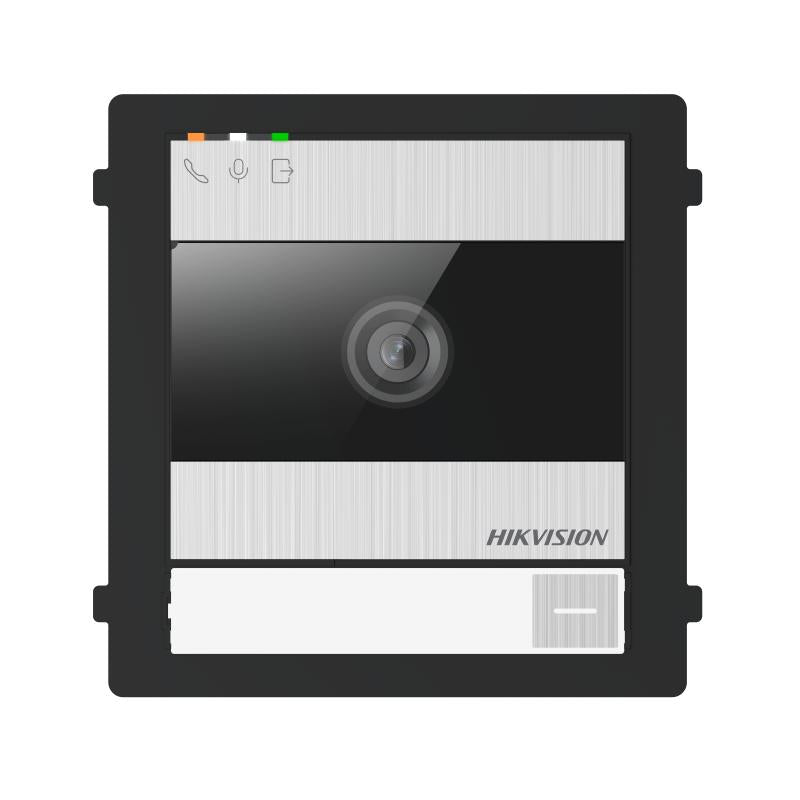

Hikvision DS-KD8005-IME1/S Modular Door Station Main Unit, 5MP Camera, IP65/IK08
About this product
The Hikvision DS-KD8005-IME1/S is the main unit of the KD8 Series modular door station for IP video intercom systems, with a 5 MP resolution camera, standard PoE power supply and two-lock control. It has an IP65, IK08 protection level for an outdoor application environment, flexible adjustment of 0/1/2 call buttons and convenient configuration via Web remotely.
Key features
- 5 MP camera, 3200 × 1800 resolution, FOV horizontal: 134°, vertical: 82°
- WDR support (100dB) and IR supplement lights for low illumination
- Flexible adjustment of 0/1/2 call buttons
- Two-lock control: lock control by 2 relays, max. 30 VDC, 2 A
- Standard PoE (IEEE802.3af) or 12 VDC, 1.5 A power supply; power consumption ≤ 5 W
- IP65, IK08 protection level; working temperature -40℃~+60℃
- 1 built-in omnidirectional microphone and 1 built-in loudspeaker, with noise suppression and echo cancellation
- Stainless steel material; surface mounting or flush mounting
Frequently asked questions
How is the DS-KD8005-IME1/S powered?
By 12 VDC, 1.5 A or by IEEE802.3af standard PoE. Power consumption is ≤ 5 W.
How many door locks can it control?
Two. It has two-lock control through 2 relays rated max. 30 VDC, 2 A, and 2 exit button inputs for lock control.
Can it be installed outdoors?
Yes. Its application environment is outdoor, with an IP65, IK08 protective level and a working temperature of -40℃~+60℃.
How can it be mounted?
Installation is surface mounting or flush mounting.
How many indoor stations can it link to?
The linked indoor station capacity is 1000, and the sub door station capacity is 99.
Which accessories does Hikvision list for it?
The accessory list includes the DS-KABD8003-RS3 rain shield of module door station, the DS-KD-K12/S nametag module and the DS-KD-MFB/S fingerprint and card reader sub module.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-KD8005-IME1/S |
| Manufacturer Part Number (MPN) | DS-KD8005-IME1/S |
| Operation System | Linux |
| ROM | 4 GB |
| RAM | 256 MB |
| Lens | 5 MP camera |
| Resolution | 3200* 1800 |
| FOV | Horizontal: 134°, Vertical: 82° |
| WDR | Support, 100dB |
| Supplement Light | Low illumination, IR supplement lights |
| Video Compression Standard | H.264, H.265, MJPEG |
| Audio Input | 1 built-in omnidirectional microphone |
| Audio Output | 1 built-in loudspeaker |
| Audio Quality | Noise suppression and echo cancellation |
| Volume Adjustment | Adjustable |
| User Capacity | 2000 |
| Linked Indoor Station Capacity | 1000 |
| Sub Door Station Capacity | 99 |
| Network Protocol | TCP/IP, RTSP, RTP, SIP, Onvif |
| Alarm Input | 4 (2 exit buttons and 2 door contacts by default) |
| Network Interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| Tamper | 1 |
| Exit Button | 2 (2 for lock control) |
| RS-485 | 1 (1 for Hikvision's sub module communication) |
| Lock Control | 2 relays, Max. 30 VDC, 2 A |
| Door Contact Input | 2 |
| Button | 2 |
| Installation | Surface mounting, flush mounting |
| Indicator | 3 |
| Weight | Without package: 260 g (0.57 lb) |
| Protective Level | IP65, IK08 |
| Working Temperature | -40℃~+60℃ |
| Power Supply | 12 VDC, 1.5 A, IEEE802.3af, Standard PoE |
| Application Environment | Outdoor |
| Power Consumption | ≤ 5 W |
| Material | Stainless Steel |
