Hikvision DS-2CD6D54G2-IZHS/NFC(2.8-8MM) multisensor IP camera, 5MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)

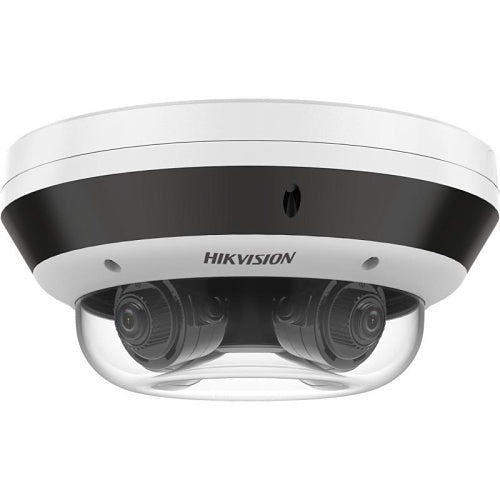

Hikvision DS-2CD6D54G2-IZHS/NFC(2.8-8MM) is a multisensor IP camera from the Panoramic range.
Introducing the Hikvision DS-2CD6D54G2-IZHS/NFC, a cutting-edge panoramic series IP camera designed for superior surveillance. With its impressive 4x5MP resolution and versatile 2.8-8mm varifocal lens, this camera captures every detail with stunning clarity. The 120 dB Wide Dynamic Range (WDR) ensures optimal image quality in challenging lighting conditions, while the robust IP67 and IK10 ratings guarantee durability against harsh environments.
Available in a sleek white and black finish, this multisensor camera is perfect for both indoor and outdoor use. Elevate your security system today with the Hikvision DS-2CD6D54G2-IZHS/NFC – your reliable partner in safety!
Key features
- 4 adjustable lenses in one camera cover up to 360° field of view, ensuring no blind area monitoring and the monitoring tilt angle can be adjusted
- Each lens up to 5MP, capturing clear images and more details can be displayed on video wall
- Clear imaging against strong back light due to 120 dB true WDR technology
- Water and dust resistant (IP67) and vandal proof (IK10)
- Human and vehicle target classification based on deep learning for up to 4 channels
- Unique PTRZ capability for efficient installation
- Audio and alarm interface available
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Physical characteristics
Power description
Product information
Storage
Miscellaneous
Attributes
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | DS-2CD6D54G2-IZHS/NFC(2.8-8MM) |
| Product Series | Panoramic |
| Product Type | Network Camera |
Technical information
| Effective resolution | 5MP |
|---|---|
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Mount Type | M12 (S-Mount) |
| Lens Type | Motorized Varifocal |
| Maximum Aperture | f/1.9 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.80mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Video Formats | H.264 / AVC, H.264+, H.265 / HEVC, H.265+, MJPEG |
| Video Resolution | 2560 x 1440 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 30.00m |
Certifications
| Ingress protection | IP67 |
|---|
Display & graphics
| Maximum video resolution | 2560 x 1920 |
|---|---|
| Number of Sensors | 4 |
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1 Second |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/100000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8-8mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 8.00mm |
Physical characteristics
| Colour | Black |
|---|---|
| Durability | Dust Resistant, Vandal Resistant, Water Resistant |
| Height | 148.00mm |
| Weight | 4.70kg |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 290.00mm |
|---|---|
| Length | 148.00mm |
Storage
| Storage Type | SD Card |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Impact protection | IK10 |
Attributes
| Indoor or outdoor use | Indoor, Outdoor |
|---|---|
| Input Voltage | 12V DC |
| Weight | 4.70kg |
