Hikvision DS-2CD6D55G2-IZHS(2.8-8mm/2mm) multisensor IP camera, 5MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)

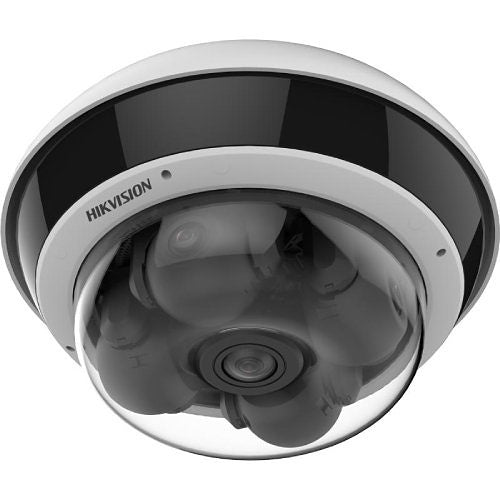

Hikvision DS-2CD6D55G2-IZHS(2.8-8mm/2mm) is a multisensor IP camera.
Discover the Hikvision DS-2CD6D55G2-IZHS, a 5MPx5-directional multisensor IP camera designed for comprehensive surveillance. Equipped with four adjustable lenses and an additional fixed lens, this camera offers a 360-degree field of view with no blind spots. Each lens delivers crystal-clear 5 MP resolution, ensuring detailed and vibrant images.
Featuring 120 dB true WDR technology, it provides exceptional imaging even in challenging lighting conditions. The camera is both water and dust resistant (IP67) and vandal-proof (IK10), making it ideal for outdoor use. Advanced deep learning technology enables precise human and vehicle classification on up to four channels.
Additionally, the unique PTRZ capability simplifies installation, while the audio and alarm interfaces enhance security measures. Upgrade your security system with this robust and versatile camera.
Key features
- 4 adjustable lenses in one camera cover up to 360 deg field of view, ensuring no blind area monitoring and the monitoring tilt angle can be adjusted
- Each lens up to 5 MP, capturing clear images, and more details can be displayed on video wall
- Clear imaging against strong back light due to 120 dB true WDR technology
- Water and dust resistant (IP67) and vandal proof (IK10)
- Human and vehicle target classification based on deep learning for up to 4 channels
- Unique PTRZ capability for efficient installation
- Audio and alarm interface available
- One more fixed lens to cover the area beneath the camera
Specifications
General information
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Miscellaneous
Attributes
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | DS-2CD6D55G2-IZHS(2.8-8mm/2mm) |
| Product Type | Network Camera |
General information
| Package Type | Box |
|---|
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 5MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Mount Type | M14 |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.9, f/2.25 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.00mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Video Formats | H.264 / AVC, H.264+, H.265 / HEVC, H.265+, MJPEG |
| Video Resolution | 2560 x 1440 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 30.00m |
Certifications
| Ingress protection | IP67 |
|---|
Display & graphics
| Maximum video resolution | 2560 x 1920 |
|---|---|
| Number of Sensors | 5 |
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1 s |
|---|---|
| Minimum Illumination | 0.0000lux |
| Shortest Shutter Speed | 1/100000 s |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8-8mm, 2mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 8.00mm |
| Minimum Aperture | f/2.5 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Durability | Dust Resistant |
|---|---|
| Form Factor | Dome |
| Height | 148.00mm |
| Weight | 4.70kg |
| Width | 290.00mm |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 290.00mm |
|---|---|
| Length | 148.00mm |
| Mount Type | Corner Mount, Pendant Mount, Pole Mount, Wall Mount |
Storage
| Storage Type | SD Card |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Impact protection | IK10 |
Attributes
| Indoor or outdoor use | Indoor, Outdoor |
|---|---|
| Input Voltage | 12V DC |
| Weight | 4.70kg |
