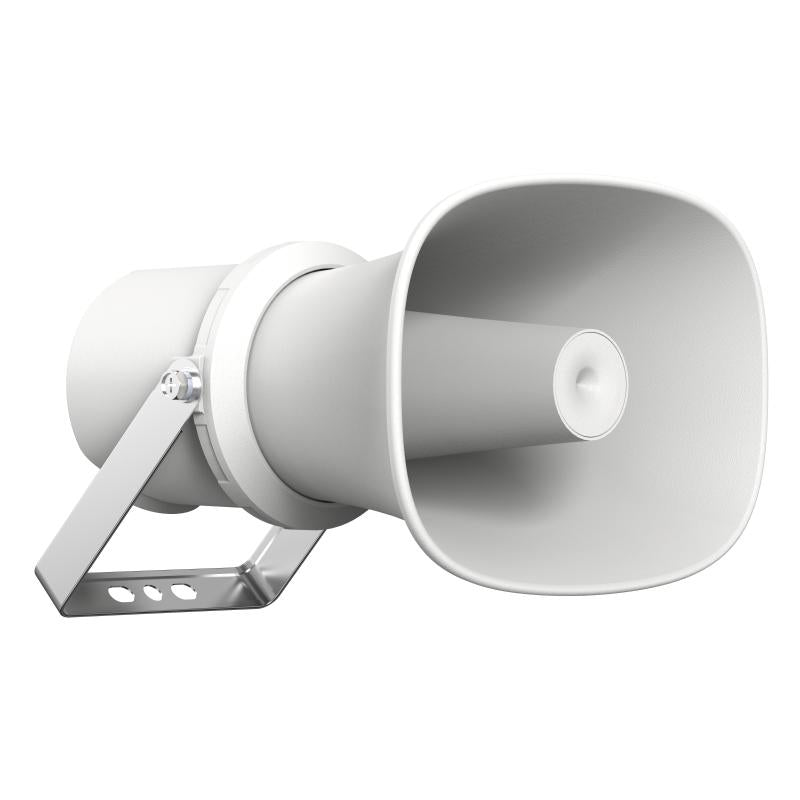

Hikvision DS-QAZ1325G1T-EY Network Anti-corrosion Horn Speaker, 25W, PoE
Free Delivery
Save £91.18
About this product
The Hikvision DS-QAZ1325G1T-EY is a network anti-corrosion 25W horn speaker for wired network audio, powered by PoE (IEEE 802.3bt, Class 4) or 24 VDC. It supports schedule, live and emergency broadcast, alarm linkage, two-way audio and TTS, with 110 dB sensitivity (1 M, 1 W) and a max. acoustic pressure of 124 dBSPL.
Key features
- Rated power 25W, 8 Ω impedance
- Sensitivity 110 dB (1 M, 1 W), max. acoustic pressure 124 dBSPL
- Frequency response 300 Hz to 8 kHz, SNR 83 dB
- Coverage of 70° horizontal by 100° vertical
- Built-in 64 GB EMMC (audio file storage is 55 GB)
- Power: 24 VDC, 1167 mA, 28 W, or PoE: IEEE 802.3bt, Class 4
- IP67 and IK10 protection, NEMA 4X (NEMA 250-2018) anti-corrosion protection
Frequently asked questions
How is the DS-QAZ1325G1T-EY powered?
By 24 VDC, 1167 mA, 28 W, or by PoE: IEEE 802.3bt, Class 4. A power adapter and AC power cable are in the packing list.
How loud is this horn speaker?
It has a rated power of 25W, 110 dB sensitivity (1 M, 1 W) and a max. acoustic pressure of 124 dBSPL, with a frequency response of 300 Hz to 8 kHz.
What protection ratings does it have?
IP67 and IK10, with NEMA 4X (NEMA 250-2018) anti-corrosion protection, and an operating temperature of -40 °C to 60 °C (-40 °F to 140 °F).
Which software and protocols work with it?
Supported clients are Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR and MileStone, and interface protocols are ISAPI, ISUP, SIP, RTP and ONVIF.
How much audio can it store?
It has built-in 64 GB EMMC, of which audio file storage is 55 GB, in WAV or MP3 format.
-
Download
- DS-QAZ1325G1T-EY Tech Sheet
Technical Details
Specifications
Brand
Hikvision
Model
DS-QAZ1325G1T-EY
Manufacturer Part Number (MPN)
DS-QAZ1325G1T-EY
Microphone type
electret
Microphone amount
2
Microphone frequency response
100 Hz to 20 kHz
Microphone sensitivity
-42 dBV/Pa
Sampling Rate
48 kHz
Quantization Bits
16-bit
Impedance
8 Ω
Rated Power
25W
Sensitivity (1 M, 1 W)
110 dB
Direction
70° horizontal by 100° vertical
Max. Acoustic Pressure
124 dBSPL
Speaker frequency response
300 Hz to 8 kHz
SNR
83 dB
Audio Algorithm
AEC, AGC, ANS, DRC
Audio Bit Rate
G.711ulaw (64 Kbps)/G.711alaw (64 Kbps)/MP3 (128 Kbps)
Audio File Format
WAV, MP3
NTP Timing
Support
Broadcast
Regular broadcast, live broadcast, emergency broadcast
Two-Way Audio
Support
Speech Synthesis
Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil)
Network Protocol
IPv4, HTTP, HTTPS, SIP, SSL/TLS, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
Interface Protocol (API)
ISAPI, ISUP, SIP, RTP, ONVIF
Client
Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone
Communication Method
Support wired network communication
Alarm
Alarm input ×1
Audio
Line in × 1
Power Output
12 VDC, 25 mA（max）
Network Interface
RJ45 10 M/100 M Adaptive Ethernet port × 2
Local Storage
Built-in 64 GB EMMC (Audio file storage is 55 GB.)
Reset
Support
Power
24 VDC, 1167 mA, 28 W, PoE: IEEE 802.3bt, Class 4
Material
Metal
Language
9 languages: English, French, Spanish, German, Italian, Russian, Japanese, Thai, Portuguese (Brazil)
Dimension
240 mm × 183 mm × 297 mm (9.43" × 7.18" × 11.7")
Package Dimension
310 mm × 245 mm × 400 mm (12.2" × 9.6" × 15.75")
With Package Weight
4.490kg
Color
White
Packing List
Device × 1, Instructions × 1, Power adapter x 1, AC power cable x 1, Threading cap × 1, Regulatory Compliance and Safety Information × 1
Operating Temperature
-40 °C to 60 °C(-40 °F to 140 °F)
Operating Humidity
＜90% (No condensation)
Protection
IP67 IK10
Anti-Corrosion Protection
NEMA 4X (NEMA 250-2018)
Colour
White
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-QAZ1325G1T-EY |
| Manufacturer Part Number (MPN) | DS-QAZ1325G1T-EY |
| Microphone type | electret |
| Microphone amount | 2 |
| Microphone frequency response | 100 Hz to 20 kHz |
| Microphone sensitivity | -42 dBV/Pa |
| Sampling Rate | 48 kHz |
| Quantization Bits | 16-bit |
| Impedance | 8 Ω |
| Rated Power | 25W |
| Sensitivity (1 M, 1 W) | 110 dB |
| Direction | 70° horizontal by 100° vertical |
| Max. Acoustic Pressure | 124 dBSPL |
| Speaker frequency response | 300 Hz to 8 kHz |
| SNR | 83 dB |
| Audio Algorithm | AEC, AGC, ANS, DRC |
| Audio Bit Rate | G.711ulaw (64 Kbps)/G.711alaw (64 Kbps)/MP3 (128 Kbps) |
| Audio File Format | WAV, MP3 |
| NTP Timing | Support |
| Broadcast | Regular broadcast, live broadcast, emergency broadcast |
| Two-Way Audio | Support |
| Speech Synthesis | Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil) |
| Network Protocol | IPv4, HTTP, HTTPS, SIP, SSL/TLS, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH |
| Interface Protocol (API) | ISAPI, ISUP, SIP, RTP, ONVIF |
| Client | Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone |
| Communication Method | Support wired network communication |
| Alarm | Alarm input ×1 |
| Audio | Line in × 1 |
| Power Output | 12 VDC, 25 mA（max） |
| Network Interface | RJ45 10 M/100 M Adaptive Ethernet port × 2 |
| Local Storage | Built-in 64 GB EMMC (Audio file storage is 55 GB.) |
| Reset | Support |
| Power | 24 VDC, 1167 mA, 28 W, PoE: IEEE 802.3bt, Class 4 |
| Material | Metal |
| Language | 9 languages: English, French, Spanish, German, Italian, Russian, Japanese, Thai, Portuguese (Brazil) |
| Dimension | 240 mm × 183 mm × 297 mm (9.43" × 7.18" × 11.7") |
| Package Dimension | 310 mm × 245 mm × 400 mm (12.2" × 9.6" × 15.75") |
| With Package Weight | 4.490kg |
| Color | White |
| Packing List | Device × 1, Instructions × 1, Power adapter x 1, AC power cable x 1, Threading cap × 1, Regulatory Compliance and Safety Information × 1 |
| Operating Temperature | -40 °C to 60 °C(-40 °F to 140 °F) |
| Operating Humidity | ＜90% (No condensation) |
| Protection | IP67 IK10 |
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018) |
| Colour | White |
