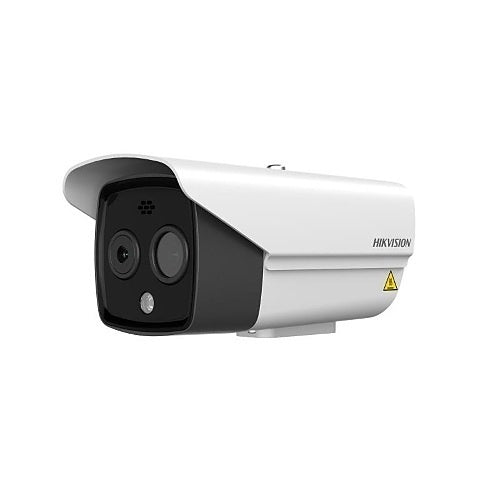

Hikvision DS-2TD2628-3/QA/GLT network camera, 2688 x 1520
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hikvision DS-2TD2628-3/QA/GLT is a network camera from the HeatPro range.
Hikvision 4G Network Thermal Camera series features highly accurate VCA and temperature exception alarms for fire prevention. Supporting multiple standards including GSM, WCDMA, and 4G LTE, the camera setups connect easily and wirelessly to the internet over mobile networks. The camera series is embedded with audible alerts and strobe lights.
It can be used in construction sites, farms, mobile towers, etc.
Key features
- 256x192 Resolution, 12 um, VOx UFPA, NETD - 40 mK (25°C, F1.0)
- Video content analysis vehicle/human classification
- Temperature exception alarm for fire prevention, -20°C to 150°C
- Embedded audible alert and strobe light
- High-quality detector
- LTE-TDD/LTE-FDD/WCDMA 4G Wireless network transmission, support Micro SIM card
- Water and dust resistant IP67
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Storage
Miscellaneous
Attributes
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | DS-2TD2628-3/QA/GLT |
| Product Series | HeatPro |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired, Wireless |
|---|---|
| Field of View | Horizontal, Vertical |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 2688 x 1520 |
| Wide Dynamic Range | No |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 30.00m |
Certifications
| Ingress protection | IP67 |
|---|
Display & graphics
| Maximum video resolution | 2688 x 1520 |
|---|---|
| Number of Sensors | 2 |
Environmental conditions
| Maximum Operating Temperature | 65°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1 Second |
|---|---|
| Minimum Illumination | 0.0089lux |
| Shortest Shutter Speed | 1/100000 Second |
Interfaces/ports
| HDMI | No |
|---|---|
| Network (RJ-45) | Yes |
Lens
| Focal Length | 6.9mm |
|---|---|
| Maximum Focal Length | 6.90mm |
Network & communication
| Remote Management | No |
|---|
Physical characteristics
| Depth | 208.90mm |
|---|---|
| Durability | Dust Resistant, Water Resistant |
| Form Factor | Bullet |
| Height | 105.20mm |
| Weight | 1332.00g |
| Width | 106.00mm |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 5.50mm |
|---|
Storage
| Storage Type | SD Card |
|---|
Miscellaneous
| Impact protection | IK10 |
|---|
Attributes
| Indoor or outdoor use | Outdoor |
|---|---|
| Input Voltage | 12V DC |
| Weight | 1332.00g |
