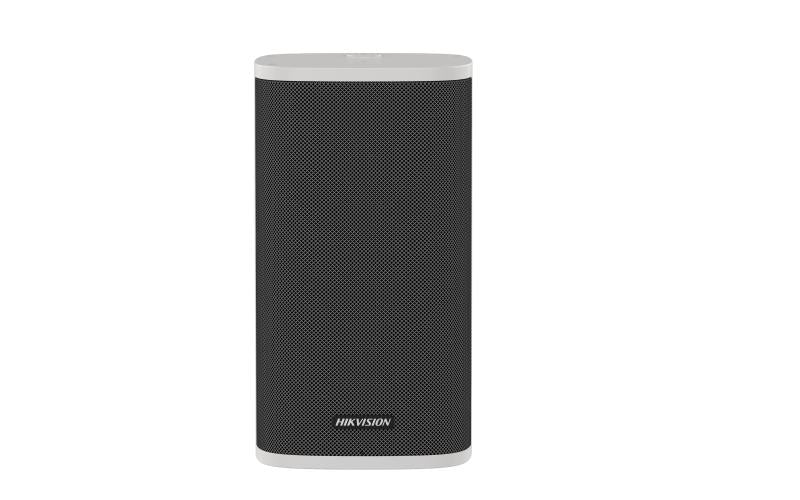

Hikvision DS-QAZ1430G1 Network Column Speaker, 30W, IP66
Free Delivery
Save £106.84
About this product
The Hikvision DS-QAZ1430G1 is a 30 W network column speaker with low frequency 5.25′′ × 2 and high frequency 1′′ × 1 speaker units, 2 electret microphones and IP66 protection. It supports schedule, live and emergency broadcast, alarm linkage, two-way audio and TTS over a wired network connection.
Key features
- 30 W rated power
- Low frequency 5.25′′ × 2 and high frequency 1′′ × 1 speaker units
- Max. acoustic pressure of 97.5 dBSPL
- Coverage angle: horizontal 170°, vertical 190°
- Two-way audio with 2 electret microphones
- Regular, live and emergency broadcast
- Built-in 4 GB EMMC (audio file storage is 1 GB) for MP3 and WAV files
- IP66 protection and -40 °C to 60 °C operating temperature
Frequently asked questions
How is the DS-QAZ1430G1 powered?
It takes 24 VDC/1.5A, and an adapter × 1 is included in the packing list.
Can it be installed outdoors?
It has IP66 protection (IEC 60529-2013) and an operating temperature of -40 °C to 60 °C, with operating humidity of ＜90% (no condensation).
Can it store and play audio files?
Yes. It has a built-in 4 GB EMMC with 1 GB for audio file storage, and plays MP3 and WAV files.
What area does it cover?
Its coverage angle is 170° horizontal and 190° vertical, projecting in all directions.
Technical Details
Specifications
Brand
Hikvision
Model
DS-QAZ1430G1
Manufacturer Part Number (MPN)
DS-QAZ1430G1
Rated Power
30 W
Speaker Unit
Low frequency 5.25′′ × 2, high frequency 1′′ × 1
Impedance
8 Ω
Max. Acoustic Pressure
97.5 dBSPL
Sensitivity (1 m, 1 W)
91 dB
Direction
All directions
Frequency Response (speaker)
100 Hz to 20 kHz
SNR
85 dB
Coverage Angle
Horizontal: 170°, Vertical: 190°
Microphone
Electret × 2, 100 Hz to 20 kHz, sensitivity -42 dBV/Pa, sampling rate 48 kHz
Audio Algorithm
AEC, AGC, ANS, DRC
Audio File Format
MP3, WAV
Broadcast
Regular broadcast, live broadcast, emergency broadcast
Two-Way Audio
Support
Speech Synthesis
Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French
Network Protocol
IPv4, HTTP, HTTPS, SIP, SSL/TLS, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
Interface Protocol (API)
ISAPI, ISUP, SIP, RTP, ONVIF
Client
Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone
Communication Method
Support wired network communication
Ethernet Interface
RJ45 10 M/100 M Adaptive Ethernet port × 1
Local Storage
Built-in 4 GB EMMC (Audio file storage is 1 GB.)
Alarm
Alarm input × 2
Audio In
Line in × 1, phoenix terminal
Power
24 VDC/1.5A
Material
Metal
Operating Temperature
-40 °C to 60 °C (-40 °F to 140 °F)
Operating Humidity
＜90% (No condensation)
Dimension
160 mm × 160 mm × 292.8 mm (6.3" × 6.3" × 11.53")
Weight
Approx. 3.47 kg (7.65 lb.)
Packing List
Device × 1, Adapter × 1, Screw pack × 1, Support × 1, L-shaped wrench × 1, Regulatory Compliance and Safety Information × 1
Protection
IP66: IEC 60529-2013
Colour
White
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-QAZ1430G1 |
| Manufacturer Part Number (MPN) | DS-QAZ1430G1 |
| Rated Power | 30 W |
| Speaker Unit | Low frequency 5.25′′ × 2, high frequency 1′′ × 1 |
| Impedance | 8 Ω |
| Max. Acoustic Pressure | 97.5 dBSPL |
| Sensitivity (1 m, 1 W) | 91 dB |
| Direction | All directions |
| Frequency Response (speaker) | 100 Hz to 20 kHz |
| SNR | 85 dB |
| Coverage Angle | Horizontal: 170°, Vertical: 190° |
| Microphone | Electret × 2, 100 Hz to 20 kHz, sensitivity -42 dBV/Pa, sampling rate 48 kHz |
| Audio Algorithm | AEC, AGC, ANS, DRC |
| Audio File Format | MP3, WAV |
| Broadcast | Regular broadcast, live broadcast, emergency broadcast |
| Two-Way Audio | Support |
| Speech Synthesis | Language Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French |
| Network Protocol | IPv4, HTTP, HTTPS, SIP, SSL/TLS, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH |
| Interface Protocol (API) | ISAPI, ISUP, SIP, RTP, ONVIF |
| Client | Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone |
| Communication Method | Support wired network communication |
| Ethernet Interface | RJ45 10 M/100 M Adaptive Ethernet port × 1 |
| Local Storage | Built-in 4 GB EMMC (Audio file storage is 1 GB.) |
| Alarm | Alarm input × 2 |
| Audio In | Line in × 1, phoenix terminal |
| Power | 24 VDC/1.5A |
| Material | Metal |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating Humidity | ＜90% (No condensation) |
| Dimension | 160 mm × 160 mm × 292.8 mm (6.3" × 6.3" × 11.53") |
| Weight | Approx. 3.47 kg (7.65 lb.) |
| Packing List | Device × 1, Adapter × 1, Screw pack × 1, Support × 1, L-shaped wrench × 1, Regulatory Compliance and Safety Information × 1 |
| Protection | IP66: IEC 60529-2013 |
| Colour | White |
