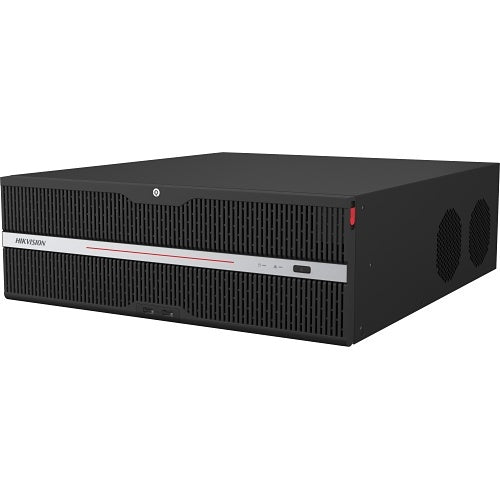

Hikvision DS-96256NXI-S16R NVR, 256
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hikvision DS-96256NXI-S16R is an NVR from the S range.
The Hikvision DS-96256NXI-S16R S Series 8K NVR is a high-capacity network video recorder designed to manage large-scale surveillance systems, supporting up to 256-channel IP cameras. It supports multiple video formats including H.265+, H.265, H.264+, and H.264, and delivers up to 32 x 1080p decoding capacity. Featuring intelligent analytics such as facial recognition, perimeter protection, and AcuSearch, it also connects up to 8-channel IP speakers.
The device includes a redundant power supply and supports RAID levels 0, 1, 5, 6, 10, and N+M hot spare for reliable data storage, minimizing data loss risks. HDMI video output supports up to 8K resolution, ensuring high-quality monitoring.
Key features
- Up to 32 x 1080p decoding capacity
- H.265+/H.265/H.264+/H.264 video formats
- Up to 256-channel IP cameras can be connected
- Intelligent analytics supports facial recognition, perimeter protection, video structuralization, AcuSearchannel
- Up to 8-channel IP speakers can be connected
- Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
- HDMI video output at up to 8K resolution
- Redundant power supply
If you are matching this to an existing installation, work from the DS-96256NXI-S16R part number rather than the description.
Specifications
Technical information
Controllers
Environmental conditions
Interfaces/ports
Physical characteristics
Power description
Attributes
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | DS-96256NXI-S16R |
| Product Series | S |
Technical information
| Number of Channels | 256 |
|---|---|
| Protocols | DHCP, DNS, HTTP, HTTPS, IPv4, IPv6, iSCSI, NFS, RTSP, SNMP |
| Storage Capacity | 20TB |
| Video Formats | H.264 / AVC, H.264+, H.265 / HEVC, H.265+ |
Controllers
| RAID Levels | RAID 0, RAID 1, RAID 5, RAID 6 |
|---|
Environmental conditions
| Operating Humidity | 90% |
|---|---|
| Operating Temperature (T-T) | -10-55°C |
Interfaces/ports
| HDMI | Yes |
|---|---|
| Network (RJ-45) | Yes |
| VGA | Yes |
Physical characteristics
| Depth | 497.00mm |
|---|---|
| Height | 146.00mm |
| Width | 442.00mm |
Power description
| Input Voltage | 100-240V AC |
|---|---|
| Maximum Power Consumption | 100.00W |
Attributes
| Environmental status | Yes |
|---|---|
| Input Voltage | 100-240V AC |
Hikvision DS-96256NXI-S16R NVR, 256
