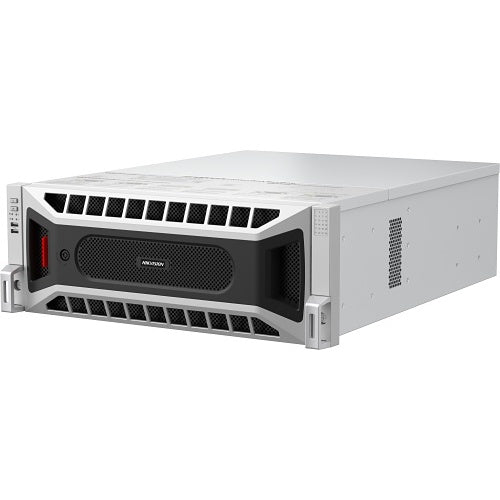

Hikvision DS-96256NXI-S24R NVR, 128
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hikvision DS-96256NXI-S24R is an NVR from the S range.
The Hikvision DS-96256NXI-S24R S Series 8K NVR is a network video recorder designed for extensive surveillance management, supporting up to 256-channel IP cameras. It features a decoding capacity of up to 32 x 1080p and supports H.265+/H.265/H.264+/H.264 video formats, ensuring efficient video compression and playback. The system includes intelligent analytics such as facial recognition, perimeter protection, and video structuralization, complemented by AcuSearchannel functionality.
It offers connectivity for up to 8-channel IP speakers, HDMI video output at up to 8K resolution, and supports RAID 0, 1, 5, 6, 10, plus N+M hot spare for reliable data storage. Additionally, the NVR is equipped with a redundant power supply for enhanced operational stability.
Key features
- Up to 32 x 1080p decoding capacity
- H.265+/H.265/H.264+/H.264 video formats
- Up to 256-channel IP cameras can be connected
- Intelligent analytics supports facial recognition, perimeter protection, video structuralization, AcuSearchannel
- Up to 8-channel IP speakers can be connected
- Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
- HDMI video output at up to 8K resolution
- Redundant power supply
If you are matching this to an existing installation, work from the DS-96256NXI-S24R part number rather than the description.
Specifications
Technical information
Controllers
Environmental conditions
Interfaces/ports
Physical characteristics
Power description
Attributes
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | DS-96256NXI-S24R |
| Product Series | S |
Technical information
| Number of Channels | 128 |
|---|---|
| Protocols | DHCP, DNS, HTTP, HTTPS, IPv4, IPv6, iSCSI, NFS, RTSP, SNMP |
| Storage Capacity | 20TB |
| Video Formats | H.264 / AVC, H.264+, H.265 / HEVC, H.265+ |
Controllers
| RAID Levels | RAID 0, RAID 1, RAID 5, RAID 6 |
|---|
Environmental conditions
| Operating Humidity | 90% |
|---|---|
| Operating Temperature (T-T) | -10-55°C |
Interfaces/ports
| HDMI | Yes |
|---|---|
| Network (RJ-45) | Yes |
| VGA | Yes |
Physical characteristics
| Depth | 572.00mm |
|---|---|
| Height | 173.00mm |
| Width | 447.00mm |
Power description
| Input Voltage | 100-240V AC |
|---|---|
| Maximum Power Consumption | 100.00W |
Attributes
| Environmental status | Yes |
|---|---|
| Input Voltage | 100-240V AC |
Hikvision DS-96256NXI-S24R NVR, 128
