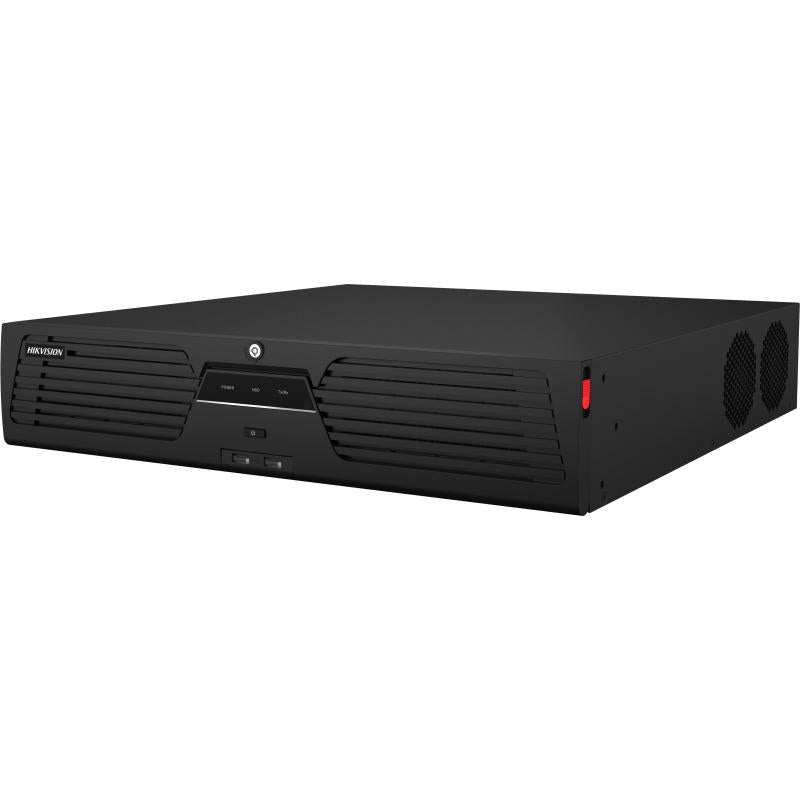

Hikvision DS-9632NXI-I8/VPro NVR with AcuSeek, Up to 32-Ch IP Input, 8 SATA Interfaces
Free Delivery
About this product
The Hikvision DS-9632NXI-I8/VPro is an I/VPro Series NVR with AcuSeek for IP CCTV systems, taking up to 32-ch IP camera inputs with intelligent analytics based on Guanlan Large-Scale AI Models. It records H.265+/H.265/H.264+/H.264 video to 8 SATA interfaces with hot swap and up to 20 TB capacity for each disk.
Key features
- Up to 32-ch IP camera inputs with 384 Mbps incoming bandwidth
- 8 SATA interfaces with hot swap, up to 20 TB capacity for each disk
- RAID0, RAID1, RAID5, RAID6 and RAID10 (the RAID function and AI functions cannot be enabled simultaneously)
- Up to 32-ch AcuSeek and AcuSearch function, with cameras that support Hikvision AcuSense Technology and have AcuSearch enabled
- Up to 8-ch facial recognition for face picture
- HDMI 1 output up to 4K (3840×2160)/30Hz; HDMI 2 output up to 1080P (1920×1080)/60Hz
- 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
- Up to 8-ch IP speakers can be connected
Frequently asked questions
How many cameras can the DS-9632NXI-I8/VPro record?
It takes up to 32-ch IP camera inputs with 384 Mbps incoming bandwidth. It supports up to 4-ch of >12MP IP video input, and all channels for ≤ 12MP.
How much storage can it take?
It has 8 SATA interfaces with hot swap and up to 20 TB capacity for each disk, plus 1 eSATA interface.
Does it support RAID?
Yes: RAID0, RAID1, RAID5, RAID6 and RAID10. The RAID function and AI functions cannot be enabled simultaneously.
What do AcuSeek and AcuSearch need from the cameras?
If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSearch and AcuSeek in all channels, capable of modelling 300,000 targets/day.
What monitor outputs does it have?
HDMI 1 outputs up to 4K (3840×2160)/30Hz and HDMI 2 up to 1080P (1920×1080)/60Hz. VGA 1 and VGA 2 each output up to 1080P (1920×1080)/60Hz, with HDMI1/VGA1 and HDMI2/VGA2 simultaneous output.
What power does it need?
Power supply is 100 to 240 VAC, 50 to 60 Hz, and consumption is ≤ 50 W (without HDD).
Technical Details
Specifications
Brand
Hikvision
Model
DS-9632NXI-I8/VPro
Manufacturer Part Number (MPN)
DS-9632NXI-I8/VPro
IP Video Input
32-ch
Incoming Bandwidth
384 Mbps
Outgoing Bandwidth
256 Mbps
Video Output Mode
HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
HDMI 1 Output
4K (3840×2160)/30Hz, 2K (2560×1440)/60Hz, 1080P (1920×1080)/60Hz, 720P (1280×720)/60Hz
HDMI 2 Output
1080P (1920×1080)/60Hz, 720P (1280×720)/60Hz
VGA 1 Output
1080P (1920×1080)/60Hz, 720P (1280×720)/60Hz
VGA 2 Output
1080P (1920×1080)/60Hz, 720P (1280×720)/60Hz
Audio Output
2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ)
Decoding Format
H.265+, H.265, H.264+, H.264
Recording Resolution
32 MP/24 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
Recording resolution limit
Support resolution width/height less than 8192 pixels, total not exceeding 32MP.
High-resolution input limit
The NVR supports up to 4-ch of >12MP IP video input, all channels for ≤ 12MP.
Decoding Capability (AI enabled)
Enable AI by NVR: 20-ch@1080p (30 fps)
Decoding Capability (AI disabled)
Disable AI by NVR: 32-ch@1080p (30 fps)
Synchronous Playback
16-ch
Live View Window Division
1/2/4/6/8/9/16/25/36
Audio Compression
G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Dual-Stream Recording
Support
AI By NVR
Facial recognition, perimeter protection, motion detection 2.0
AI By NVR And Camera
Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection 2.0, ANPR, people counting, AcuSeek
Engine
2 engines. 1 is for face picture and AcuSearch. 1 is for AcuSeek
Perimeter Protection By NVR
4-ch, 2 MP (H.264/H.265) video analysis
Face Picture Library
Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
Face Picture Comparison
8-ch
Motion Detection 2.0 By NVR
All channels for Hikvision cameras
ANPR By Camera
All channels
Network Interface
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Remote Connection
128
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF, OTAP
API
ONVIF (profile S/G); SDK; ISAPI
RAID Type
RAID0, RAID1, RAID5, RAID6, RAID10
RAID note
The RAID function and AI functions cannot be enabled simultaneously.
SATA
8 SATA interfaces, Hot swap.
Capacity
Up to 20 TB capacity for each disk
eSATA
1 eSATA interface
Serial Interface
1 RS-232, 1 RS-485 (full-duplex)
Alarm In/Out
16/9
USB Interface
Front panel: 2× USB 2.0; Rear panel: 2 × USB 3.0
Ctrl 12V
Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.
DC 12V
12 VDC, 1 A power output
Power Supply
100 to 240 VAC, 50 to 60 Hz
Consumption
≤ 50 W (without HDD)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-9632NXI-I8/VPro |
| Manufacturer Part Number (MPN) | DS-9632NXI-I8/VPro |
| IP Video Input | 32-ch |
| Incoming Bandwidth | 384 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| Video Output Mode | HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output |
| HDMI 1 Output | 4K (3840×2160)/30Hz, 2K (2560×1440)/60Hz, 1080P (1920×1080)/60Hz, 720P (1280×720)/60Hz |
| HDMI 2 Output | 1080P (1920×1080)/60Hz, 720P (1280×720)/60Hz |
| VGA 1 Output | 1080P (1920×1080)/60Hz, 720P (1280×720)/60Hz |
| VGA 2 Output | 1080P (1920×1080)/60Hz, 720P (1280×720)/60Hz |
| Audio Output | 2-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Decoding Format | H.265+, H.265, H.264+, H.264 |
| Recording Resolution | 32 MP/24 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF |
| Recording resolution limit | Support resolution width/height less than 8192 pixels, total not exceeding 32MP. |
| High-resolution input limit | The NVR supports up to 4-ch of >12MP IP video input, all channels for ≤ 12MP. |
| Decoding Capability (AI enabled) | Enable AI by NVR: 20-ch@1080p (30 fps) |
| Decoding Capability (AI disabled) | Disable AI by NVR: 32-ch@1080p (30 fps) |
| Synchronous Playback | 16-ch |
| Live View Window Division | 1/2/4/6/8/9/16/25/36 |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Dual-Stream Recording | Support |
| AI By NVR | Facial recognition, perimeter protection, motion detection 2.0 |
| AI By NVR And Camera | Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection 2.0, ANPR, people counting, AcuSeek |
| Engine | 2 engines. 1 is for face picture and AcuSearch. 1 is for AcuSeek |
| Perimeter Protection By NVR | 4-ch, 2 MP (H.264/H.265) video analysis |
| Face Picture Library | Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB) |
| Face Picture Comparison | 8-ch |
| Motion Detection 2.0 By NVR | All channels for Hikvision cameras |
| ANPR By Camera | All channels |
| Network Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF, OTAP |
| API | ONVIF (profile S/G); SDK; ISAPI |
| RAID Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| RAID note | The RAID function and AI functions cannot be enabled simultaneously. |
| SATA | 8 SATA interfaces, Hot swap. |
| Capacity | Up to 20 TB capacity for each disk |
| eSATA | 1 eSATA interface |
| Serial Interface | 1 RS-232, 1 RS-485 (full-duplex) |
| Alarm In/Out | 16/9 |
| USB Interface | Front panel: 2× USB 2.0; Rear panel: 2 × USB 3.0 |
| Ctrl 12V | Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9. |
| DC 12V | 12 VDC, 1 A power output |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 50 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
