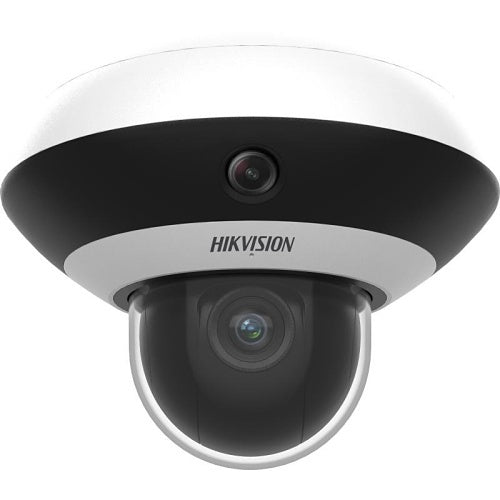

Hikvision DS-2DP3D404IWG1-E/36(F5) panoramic camera, 4MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hikvision DS-2DP3D404IWG1-E/36(F5) is a panoramic camera from the Panoramic range.
Hikvision 4 x IR Network Speed Dome adopts 1/2.8" progressive scan CMOS chip. With the 4x Optical zoom lens, the camera offers more details over expansive areas. Hikvision has been dedicated to develop products with security since established.
Hikvision always follows security by design principle and has adopted many methods of security technologies into our product development lifecycle, including terminal security, data security, application security, network security, and privacy protection. In the meantime, the security technologies used by Hikvision are all in compliance with local applicable laws and safety regulations. These security measures could enhance product's cyber security protection capability and protect your devices as well as your data from malicious cyber attacks.
Key features
- Captures a large area and great details at the same time
- High quality imaging with 4MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Secures an expansive area with 4x Optical zoom and 16x digital zoom
- Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
- Supports 12VDC
- Support regional population statistics function, which can enable regional population statistics for panoramic 1 stream detail 1 stream
Specifications
Technical information
Audio
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Memory
Physical characteristics
Power description
Product information
Storage
Video
Attributes
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | DS-2DP3D404IWG1-E/36(F5) |
| Product Series | Panoramic |
| Product Type | Panoramic Camera |
Technical information
| Built-in Microphone | Yes |
|---|---|
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Illumination Distance | 20m |
| Lens Type | Zoom |
| Maximum Aperture | f/1.82, f/2.3 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.00mm |
| Motion Detection | Yes |
| Night Vision | Yes |
| Optical Zoom | 4.0x |
| Protocols | DHCP, DNS, FTP, HTTP, HTTPS, RTP, RTSP, SNMP, TCP, TLS/SSL, UDP |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Wide Dynamic Range | Yes |
Audio
| Audio Encoding | AAC, G.711, G.722.1, G.726 |
|---|---|
| Memory Card Slot | Yes |
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP54 |
|---|
Display & graphics
| Image Sensor Size | 1/2.8", 1/3" |
|---|
Environmental conditions
| Maximum Operating Temperature | 50°C |
|---|---|
| Minimum Operating Temperature | -10°C |
| Operating Humidity | 90% |
| Operating Temperature (T-T) | -10-50°C |
Exposure
| Longest Shutter Speed | 1/30s |
|---|---|
| Minimum Illumination | 0.0100lux |
| Shortest Shutter Speed | 1/30000s |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8-12mm, 2mm |
|---|---|
| Focus Modes | Auto Focus, Manual Focus |
| Lens Included | Yes |
| Maximum Focal Length | 12.00mm |
Memory
| Memory Card Supported | microSD, microSDHC, microSDXC |
|---|
Physical characteristics
| Colour | Black |
|---|---|
| Height | 128.60mm |
| Material | Polycarbonate (PC) |
| Weight | 0.90kg |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 183.20mm |
|---|
Storage
| Storage Type | SD Card |
|---|
Video
| Maximum Resolution | 2560 x 1440 |
|---|
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 0.90kg |
