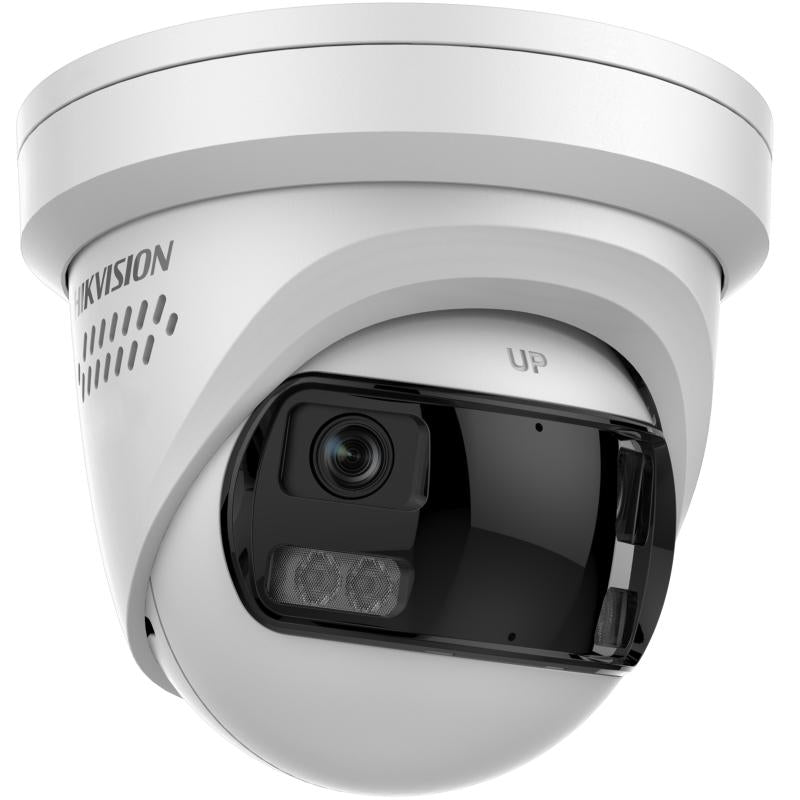

Hikvision DS-2CD2387G3P-LIS2UY/SL Panoramic ColorVu Fixed Turret Network Camera, 8MP, 2.8mm
Free Delivery
Save £53.33
About this product
The Hikvision DS-2CD2387G3P-LIS2UY/SL is an 8 MP panoramic ColorVu fixed turret network camera with a 180° panoramic view and 24/7 colorful imaging via ColorVu 3.0 technology. It offers white light, IR light and Smart Hybrid Light modes, person and vehicle classification based on deep learning, and an active strobe light and audio alarm to warn trespassers off.
Key features
- 8 MP panoramic imaging, max. resolution 4256 × 1888, 1/2.5" progressive scan CMOS
- 180° panoramic view: 2.8 mm fixed focal lens, horizontal FOV 182.6°, vertical FOV 74.6°
- 24/7 colorful imaging via ColorVu 3.0 technology, F1.0 aperture
- White light and IR supplement light, supplement light range up to 30 m, with Smart Hybrid Light modes
- Person and vehicle classification based on deep learning, with line crossing, intrusion, region entrance and region exiting detection
- Active strobe light (white light on the /SL model) and audio alarm to warn trespassers off
- Arrayed Dual-Mic (-2U) and built-in speaker
- Dust and water resistant (IP67) with anti-corrosion design (NEMA 4X)
Frequently asked questions
What field of view does the DS-2CD2387G3P-LIS2UY/SL cover?
A 180° panoramic view: the 2.8 mm lens gives a horizontal FOV of 182.6° and a vertical FOV of 74.6°.
Does it show colour images at night?
It provides 24/7 colorful imaging via ColorVu 3.0 technology, with white light & IR light & Smart Hybrid Light modes and a supplement light range up to 30 m.
How is the camera powered?
By 12 VDC ± 25%, 1.67 A, max. 20 W, or by PoE: IEEE 802.3at, Class 4, max. 24 W.
What storage does it support?
A built-in memory card slot for microSD/microSDHC/microSDXC cards up to 512 GB, plus network storage on NAS (NFS, SMB/CIFS).
What colour is the strobe light on the /SL model?
On the /SL model the flashing light is white light. The active strobe light and audio alarm are used to warn trespassers off.
Is the camera weather resistant?
It is dust and water resistant (IP67), has anti-corrosion design (NEMA 4X) and operates from -30 °C to 60 °C.
Technical Details
Specifications
Brand
Hikvision
Model
DS-2CD2387G3P-LIS2UY/SL
Manufacturer Part Number (MPN)
DS-2CD2387G3P-LIS2UY/SL
Image Sensor
1/2.5" Progressive Scan CMOS
Max. Resolution
4256 × 1888
Min. Illumination
Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens Type
Fixed focal lens, 2.8 mm
Focal Length & FOV
2.8 mm, horizontal FOV 182.6°, vertical FOV 74.6°
Aperture
F1.0
DORI
2.8 mm: D: 62 m, O: 24 m, R: 12 m, I: 6 m
Supplement Light Type
White Light, IR
Supplement Light Range
Up to 30 m
IR Wavelength
850 nm
Main Stream
50Hz: 20fps (4256 × 1888, 4096 × 1856); 60Hz: 20fps (4256 × 1888, 4096 × 1856)
Video Compression
Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG
Audio Type
-U: Mono sound
Simultaneous Live View
Up to 6 channels
API
ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host
Up to 32 users; 3 user levels: administrator, operator, and user
Client
iVMS-4200, Hik-Connect, Hik-Central
Network Storage
NAS (NFS, SMB/CIFS)
WDR
130 dB
SNR
≥ 52 dB
Privacy Mask
4 programmable polygon privacy masks
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In Speaker
Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB
Built-in Microphone
-2U: Arrayed dual-microphone
Alarm
1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting; alarm triggering by specified target types (human and vehicle)
Power
12 VDC ± 25%, 1.67 A, max. 20 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3at, Class 4, max. 24 W
Material
Cover: metal, main body: metal
Dimension
Ø138.6 mm × 125 mm (Ø5.46" × 4.92")
Weight
Approx. 840 g (1.85 lb.)
Startup And Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Flashing Light
/SL model: White Light
Protection
IP67: IEC 60529-2013
Anti-Corrosion Protection
NEMA 4X (NEMA 250-2018)
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2CD2387G3P-LIS2UY/SL |
| Manufacturer Part Number (MPN) | DS-2CD2387G3P-LIS2UY/SL |
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Max. Resolution | 4256 × 1888 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens Type | Fixed focal lens, 2.8 mm |
| Focal Length & FOV | 2.8 mm, horizontal FOV 182.6°, vertical FOV 74.6° |
| Aperture | F1.0 |
| DORI | 2.8 mm: D: 62 m, O: 24 m, R: 12 m, I: 6 m |
| Supplement Light Type | White Light, IR |
| Supplement Light Range | Up to 30 m |
| IR Wavelength | 850 nm |
| Main Stream | 50Hz: 20fps (4256 × 1888, 4096 × 1856); 60Hz: 20fps (4256 × 1888, 4096 × 1856) |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG |
| Audio Type | -U: Mono sound |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Network Storage | NAS (NFS, SMB/CIFS) |
| WDR | 130 dB |
| SNR | ≥ 52 dB |
| Privacy Mask | 4 programmable polygon privacy masks |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-In Speaker | Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB |
| Built-in Microphone | -2U: Arrayed dual-microphone |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting; alarm triggering by specified target types (human and vehicle) |
| Power | 12 VDC ± 25%, 1.67 A, max. 20 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3at, Class 4, max. 24 W |
| Material | Cover: metal, main body: metal |
| Dimension | Ø138.6 mm × 125 mm (Ø5.46" × 4.92") |
| Weight | Approx. 840 g (1.85 lb.) |
| Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Flashing Light | /SL model: White Light |
| Protection | IP67: IEC 60529-2013 |
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018) |
