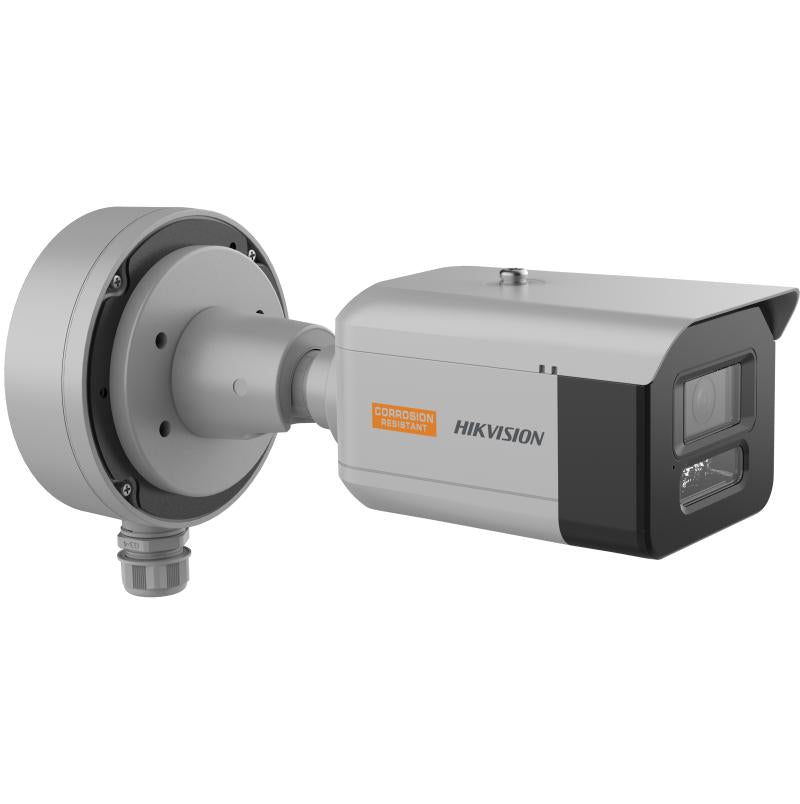

Hikvision DS-2XC3T86G0H-LISU(PA)(4mm)(O-STD) Polymer Anti-Corrosion Bullet Network Camera, 8MP, 4mm
About this product
The Hikvision DS-2XC3T86G0H-LISU(PA)(4mm)(O-STD) is an 8 MP dual illumination fixed bullet network camera with a 4 mm fixed focal lens, in an anti-corrosion polymer enclosure for use in corrosive environments. It gives 24/7 colorful imaging via ColorVu technology, with IR light, white light and Smart Hybrid Light modes and a supplement light range of up to 50 m.
Key features
- 8 MP, max. resolution 3840 × 2160, 1/1.8" Progressive Scan CMOS
- 4 mm fixed focal lens, F1.0: horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°
- IR and white light supplement light, range up to 50 m; IR light, White light and Smart Hybrid Light modes
- 24/7 colorful imaging via ColorVu technology
- 130 dB WDR against strong back light
- IP68 water and dust resistant, IK10 vandal resistant
- Audio and alarm interface (-S and -SU models), plus 1 built-in microphone (-U)
- Perimeter protection with alarm triggering by human and vehicle target types
Frequently asked questions
How far can the DS-2XC3T86G0H-LISU(PA) light a scene at night?
The supplement light (IR and white light) has a range of up to 50 m, and the camera offers IR light, white light and Smart Hybrid Light modes.
What field of view does the 4 mm lens give?
Horizontal FOV 93.3°, vertical FOV 47.2° and diagonal FOV 114.2°.
Can this camera be powered by PoE?
Yes: PoE: IEEE 802.3af, Class 3, max. 10 W. It can also run on 12 VDC ± 25%, 0.84 A, max. 10 W.
Does the DS-2XC3T86G0H-LISU(PA) have audio?
Yes. It has 1 built-in microphone (-U), and as an -S model, 1 audio input (line in) and 1 audio output (line out) on two-core terminal blocks.
What is the enclosure made of?
It is an anti-corrosion polymer enclosure for use in corrosive environments: body SMC+ 30% GF, bracket PA66+ 15% GF, rated IP68 and IK10.
What temperatures does it operate in?
Startup and operating conditions are -30 °C to 60 °C, humidity 95% or less (non-condensing).
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2XC3T86G0H-LISU(PA)(4mm)(O-STD) |
| Manufacturer Part Number (MPN) | DS-2XC3T86G0H-LISU(PA)(4mm)(O-STD) |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.0008 Lux @ (F1.2, AGC ON), 0 Lux with light |
| Lens Type | Fixed focal lens, 4 mm |
| Focal Length & FOV (4 mm) | 4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2° |
| Focus | Auto, Semi-auto, Manual |
| Aperture | F1.0 |
| Depth Of Field (4 mm) | 3.8 m to ∞ |
| DORI (4 mm) | D: 109 m, O: 43 m, R: 21 m, I: 10 m |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 50 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream (50 Hz) | 20 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| Video Compression (main stream) | H.265/H.264/H.264+/H.265+ |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| WDR | 130 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR, Defog |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Built-In Microphone (-U) | Yes, 1 built-in microphone |
| Audio (-S) | 1 input (line in), 1 output (line out), two-core terminal block |
| Alarm (-S) | 1 input, 1 output (max. 12 VDC, 0.1 A) |
| RS-485 (-S) | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Simultaneous Live View | Up to 20 channels |
| Power | 12 VDC ± 25%, 0.84 A, max. 10 W; PoE: IEEE 802.3af, Class 3, max. 10 W |
| Material | Body: SMC+ 30% GF, Bracket: PA66+ 15% GF |
| Dimension | 294.27 mm × 120.8 mm × 121.36 mm (11.59" × 4.76" × 4.77") |
| Weight | Approx. 1480 g (3.26 lb.) |
| Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Protection | Water and dust resistant (IP68), vandal resistant (IK10) |
