Hikvision iDS-MCD402-E/36X/I/GLE portable speed dome, 3840 x 2160
Free Delivery
About this product
Please note: this is a non-returnable item (excluding faulty goods)

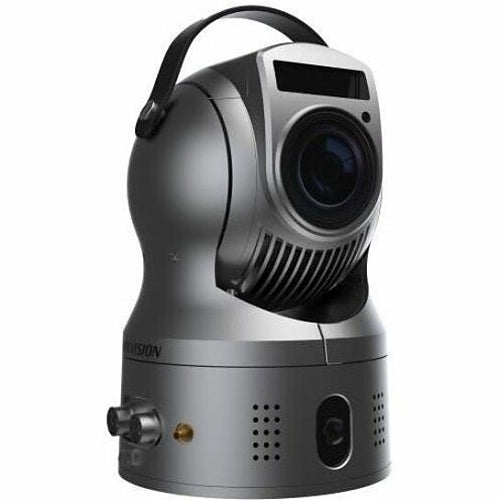

Hikvision iDS-MCD402-E/36X/I/GLE is a portable speed dome.
Discover the advanced capabilities of the Hikvision iDS-MCD402-E/36X/I/GLE 4G Dual-lens ANPR Portable Speed Dome. This cutting-edge device features dual 1/1.8" CMOS sensors for enhanced imaging, quick and easy installation with its magnetic base and tripod bracket, and a replaceable battery ensuring continuous operation. Access your camera remotely via IE browser or client, and stay informed with the embedded screen displaying vital statuses like battery life, GPS, and more.
Its 360° pan and auto-flip tilt movements provide comprehensive coverage. Perfect for maintaining security in dynamic environments.
Key features
- Support for dual cameras, Lens1 : 1/1.8" progressive scan CMOS; Lens2 : 1/1.8" CMOS
- Quick installation with the magnetic base and the tripod bracket
- Replaceable battery for sustainable work
- Supports accessing via IE browser and client, and remote operation
- Embedded screen for status display, e.g. battery, GPS, 3G/4G, record status, storage capacity, Bluetooth, platform access, Wi-Fi, and smart algorithm mode
- 360° endless pan and -20° to 90° (auto-flip) tilt movement range for PTZ
- 360° endless pan and -20° to 90° (auto-flip) tilt movement range for PTZ
- Embedded screen for status display, e.g. battery, GPS, 3G/4G, record status, storage capacity, Bluetooth, platform access, Wi-Fi, and smart algorithm mode
- Supports accessing via IE browser and client, and remote operation
-
Download
- iDS-MCD402-E/36X/I/GLE — User Manual
Technical Details
Specifications
Brand Name
Hikvision
Manufacturer Part Number
iDS-MCD402-E/36X/I/GLE
Product Type
Network Camera
Technical information
Connectivity Technology
Wired, Wireless
Field of View
Diagonal, Horizontal, Vertical
Maximum Aperture
f/1.3
Maximum Frame Rate
30fps
Minimum Focal Length
6.00mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Optical Zoom
36.0x
Video Formats
H.264 / AVC, H.265 / HEVC
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
100.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
3840 x 2160
Environmental conditions
Maximum Operating Temperature
55°C
Minimum Operating Temperature
-10°C
Operating Humidity
95%
Interfaces/ports
Network (RJ-45)
Yes
Lens
Lens Included
Yes
Maximum Focal Length
216.00mm
Minimum Aperture
f/4.6
Network & communication
Remote Management
Yes
Physical characteristics
Form Factor
Portable
Height
262.00mm
Weight
4.35kg
Power description
Input Voltage
12V DC
Product information
Diameter
175.00mm
Mount Type
Tripod Mount, Wall Mount
Storage
Recording Formats
H.264, H.265 / HEVC
Storage Type
SD Card
Miscellaneous
Environmental status
Yes
Features
3D Digital Noise Reduction, Audio Compression, Day/Night, Defog, Digital Noise Reduction, Electronic Image Stabilization, Intrusion Detection, SD Card Local Storage, Smoke Detector, Vehicle Recognition, Wide Dynamic Range
Attributes
Input Voltage
12V DC
Package Contents
1 × AC power cord; 1 × Lithium ion battery; 1 × Adapter; 1 × Safety rope; 1 × C92-screwdriver; 1 × Composite cable
Weight
4.35kg
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | iDS-MCD402-E/36X/I/GLE |
| Product Type | Network Camera |
Technical information
| Connectivity Technology | Wired, Wireless |
|---|---|
| Field of View | Diagonal, Horizontal, Vertical |
| Maximum Aperture | f/1.3 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 6.00mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Optical Zoom | 36.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 100.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 3840 x 2160 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -10°C |
| Operating Humidity | 95% |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Lens Included | Yes |
|---|---|
| Maximum Focal Length | 216.00mm |
| Minimum Aperture | f/4.6 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Form Factor | Portable |
|---|---|
| Height | 262.00mm |
| Weight | 4.35kg |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 175.00mm |
|---|---|
| Mount Type | Tripod Mount, Wall Mount |
Storage
| Recording Formats | H.264, H.265 / HEVC |
|---|---|
| Storage Type | SD Card |
Miscellaneous
| Environmental status | Yes |
|---|---|
| Features | 3D Digital Noise Reduction, Audio Compression, Day/Night, Defog, Digital Noise Reduction, Electronic Image Stabilization, Intrusion Detection, SD Card Local Storage, Smoke Detector, Vehicle Recognition, Wide Dynamic Range |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Package Contents | 1 × AC power cord; 1 × Lithium ion battery; 1 × Adapter; 1 × Safety rope; 1 × C92-screwdriver; 1 × Composite cable |
| Weight | 4.35kg |
