Hikvision HM-TD5537T-7/W positioning thermal camera, 4MP

Visit CCTV Cameras
Free Delivery

About this product

Please note: this is a non-returnable item (excluding faulty goods)

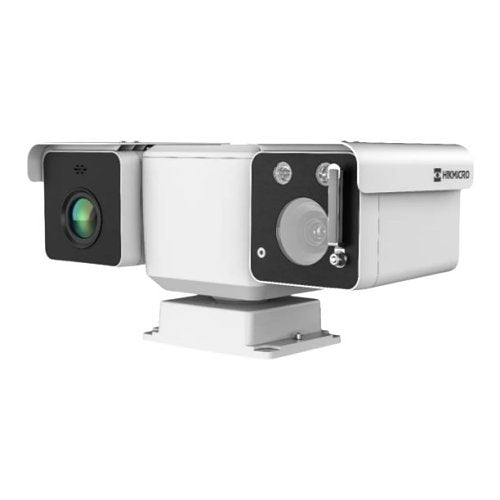

Hikvision HM-TD5537T-7/W is a positioning thermal camera from the Bi-spectrum Thermography Mini Positioning Series range.

HIKMICRO HM-TD5537T-7/W Thermographic Thermal and Optical Bi-spectrum Network MINI Positioning System equipped with built-in GPU which supports intelligent behavior analysis algorithm, can realize high-precision VCA detection and realtime alarm. It is applied to fire-prevention purposes in scenes such as transformer substation, recycling center, gas station, and factory. The pre-alarm system helps you discover unexpected events immediately and protects your property.

Key features

  • Fire detection algorithm
  • Temperature exception alarm for fire prevention
  • 384×288 resolution 17μm, VOx UFPA, NETD less or equal 35mK (25°C, F# = 1.0)
  • Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
  • Behavior analysis function, based on deep learning algorithm: line crossing, intrusion, region entrance and exit
Google Top Quality Store · Rated Exceptional
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Hikvision
Manufacturer Part Number
HM-TD5537T-7/W
Product Series
Bi-spectrum Thermography Mini Positioning Series
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
4MP
Field of View
Horizontal, Vertical
Lens Type
Varifocal
Maximum Aperture
f/4.4
Maximum Frame Rate
50fps
Minimum Focal Length
4.80mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Optical Zoom
32.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
1280 x 720
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
30.00m
Certifications
Ingress protection
IP67
Display & graphics
Maximum Illumination
0.05lux
Maximum video resolution
2688 x 1520
Environmental conditions
Maximum Operating Temperature
70°C
Minimum Operating Temperature
-40°C
Operating Humidity
90%
Exposure
Longest Shutter Speed
1 Second
Minimum Illumination
0.0500lux
Shortest Shutter Speed
1/100000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
4.8-153mm, 6.3mm
Lens Included
Yes
Maximum Focal Length
153.00mm
Maximum Thermal Focal Length
6.30mm
Minimum Aperture
f/1.2
Network & communication
Remote Management
Yes
Physical characteristics
Colour
White
Durability
Voltage Transient Resistant
Weight
4.80kg
Power description
Input Voltage
24V DC
Storage
Storage Type
SD Card
Miscellaneous
Features
Bi-spectrum Thermography
Attributes
Input Voltage
24V DC
Weight
4.80kg
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Storage
Miscellaneous
Attributes

Specifications

Brand Name Hikvision
Manufacturer Part Number HM-TD5537T-7/W
Product Series Bi-spectrum Thermography Mini Positioning Series
Product Type Network Camera

Technical information

Connectivity Technology Wired
Effective resolution 4MP
Field of View Horizontal, Vertical
Lens Type Varifocal
Maximum Aperture f/4.4
Maximum Frame Rate 50fps
Minimum Focal Length 4.80mm
Night Vision Yes
Night Vision Type Infrared (IR)
Optical Zoom 32.0x
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution 1280 x 720
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS
Night Vision Distance 30.00m

Certifications

Ingress protection IP67

Display & graphics

Maximum Illumination 0.05lux
Maximum video resolution 2688 x 1520

Environmental conditions

Maximum Operating Temperature 70°C
Minimum Operating Temperature -40°C
Operating Humidity 90%

Exposure

Longest Shutter Speed 1 Second
Minimum Illumination 0.0500lux
Shortest Shutter Speed 1/100000 Second

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 4.8-153mm, 6.3mm
Lens Included Yes
Maximum Focal Length 153.00mm
Maximum Thermal Focal Length 6.30mm
Minimum Aperture f/1.2

Network & communication

Remote Management Yes

Physical characteristics

Colour White
Durability Voltage Transient Resistant
Weight 4.80kg

Power description

Input Voltage 24V DC

Storage

Storage Type SD Card

Miscellaneous

Features Bi-spectrum Thermography

Attributes

Input Voltage 24V DC
Weight 4.80kg

Hikvision HM-TD5537T-7/W positioning thermal camera

Hikvision HM-TD5537T-7/W positioning thermal camera, 4MP

Who this is for

For the installer — this is the positioning thermal camera supplied under Hikvision part number HM-TD5537T-7/W. Specify it by that part number.

In plain English: this is a positioning thermal camera made by Hikvision. The part number HM-TD5537T-7/W is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this positioning thermal camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods.

We do not quote a warranty term for this part.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact positioning thermal camera I have been quoted? Check the manufacturer part number HM-TD5537T-7/W against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Hikvision HM-TD5537T-7/W positioning thermal camera
Hikvision

Hikvision HM-TD5537T-7/W positioning thermal camera, 4MP

£4,964.33

Please note: this is a non-returnable item (excluding faulty goods)

Hikvision HM-TD5537T-7/W is a positioning thermal camera from the Bi-spectrum Thermography Mini Positioning Series range.

HIKMICRO HM-TD5537T-7/W Thermographic Thermal and Optical Bi-spectrum Network MINI Positioning System equipped with built-in GPU which supports intelligent behavior analysis algorithm, can realize high-precision VCA detection and realtime alarm. It is applied to fire-prevention purposes in scenes such as transformer substation, recycling center, gas station, and factory. The pre-alarm system helps you discover unexpected events immediately and protects your property.
