Hikvision DS-2CD2146G2H-ISU(2.8mm)(eF)/BLACK Powered by Darkfighter Fixed Dome Network Camera, 4MP, 2.8mm
Free Delivery
Save £28.31
About this product

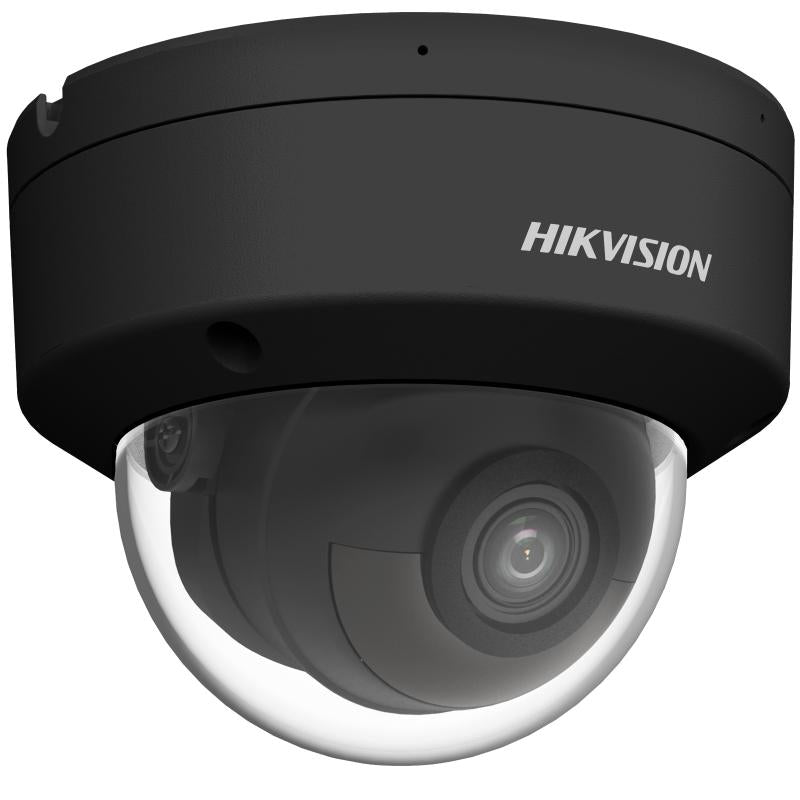

The Hikvision DS-2CD2146G2H-ISU(2.8mm)(eF)/BLACK is a black 4 MP powered by Darkfighter fixed dome network camera for IP CCTV systems, with a 2.8 mm lens, IR up to 30 m and a built-in microphone. It classifies human and vehicle targets with deep learning, and is water and dust resistant (IP67) and vandal-resistant (IK10).
Key features
- 4 MP resolution, max. 2688 × 1520
- Powered-by-DarkFighter low-light performance: colour 0.001 Lux @ (F1.0, AGC ON)
- IR supplement light up to 30 m
- 120 dB true WDR
- Human and vehicle target classification based on deep learning
- Built-in microphone (-SU)
- IP67 and IK10
- PoE: IEEE 802.3af, Class 3, max. 8.5 W
Frequently asked questions
Can it be powered by PoE?
Yes. It supports PoE: IEEE 802.3af, Class 3, max. 8.5 W. It can also run on 12 VDC ± 25%, 0.6 A, max. 7.2 W.
What field of view does the 2.8 mm lens give?
Horizontal FOV 100.2°, vertical FOV 54.7° and diagonal FOV 119.7°.
Does it record audio?
Yes. The -SU model has a built-in microphone, plus 1 audio input and 1 audio output.
What size memory card does it take?
The built-in slot supports microSD/microSDHC/microSDXC cards up to 512 GB.
Is it suitable for outdoor and vandal-prone locations?
It is water and dust resistant (IP67) and vandal-resistant (IK10), and operates from -30 °C to 60 °C.
Technical Details
Specifications
Brand
Hikvision
Model
DS-2CD2146G2H-ISU(2.8mm)(eF)/BLACK
Manufacturer Part Number (MPN)
DS-2CD2146G2H-ISU(2.8mm)(eF)/BLACK
Image Sensor
1/3" Progressive Scan CMOS
Max. Resolution
2688 × 1520
Min. Illumination
Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Focal Length & FOV (2.8 mm)
2.8 mm, horizontal FOV 100.2°, vertical FOV 54.7°, diagonal FOV 119.7°
Aperture
F1.0
Depth Of Field (2.8 mm)
1.9 m to ∞
Supplement Light Type
IR
Supplement Light Range
Up to 30 m
IR Wavelength
850 nm
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Video Compression (main stream)
H.265/H.264/H.265+/H.264+
Video Bit Rate
32 Kbps to 8 Mbps
WDR
120 dB
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
4 programmable polygon privacy masks
Simultaneous Live View
Up to 6 channels
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In Microphone
-SU: Yes
Alarm
-SU: 1 input, 1 output (max. 12 VDC, 30 mA)
Face Capture
Yes
Power
12 VDC ± 25%, 0.6 A, max. 7.2 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE
IEEE 802.3af, Class 3, max. 8.5 W
Material
Cover: aluminum alloy, main body: aluminum alloy
Dimension
Ø121.5 mm × 97.6 mm (Ø4.8" × 3.8")
Package Dimension
150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight
Approx. 550 g (1.2 lb.)
Startup And Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Protection
IP67: IEC 60529-2013, IK10: IEC 62262:2002
Colour
Black
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2CD2146G2H-ISU(2.8mm)(eF)/BLACK |
| Manufacturer Part Number (MPN) | DS-2CD2146G2H-ISU(2.8mm)(eF)/BLACK |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Focal Length & FOV (2.8 mm) | 2.8 mm, horizontal FOV 100.2°, vertical FOV 54.7°, diagonal FOV 119.7° |
| Aperture | F1.0 |
| Depth Of Field (2.8 mm) | 1.9 m to ∞ |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| IR Wavelength | 850 nm |
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Video Compression (main stream) | H.265/H.264/H.265+/H.264+ |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| WDR | 120 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
| Simultaneous Live View | Up to 6 channels |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-In Microphone | -SU: Yes |
| Alarm | -SU: 1 input, 1 output (max. 12 VDC, 30 mA) |
| Face Capture | Yes |
| Power | 12 VDC ± 25%, 0.6 A, max. 7.2 W, Ø5.5 mm coaxial power plug, reverse polarity protection |
| PoE | IEEE 802.3af, Class 3, max. 8.5 W |
| Material | Cover: aluminum alloy, main body: aluminum alloy |
| Dimension | Ø121.5 mm × 97.6 mm (Ø4.8" × 3.8") |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| Weight | Approx. 550 g (1.2 lb.) |
| Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Protection | IP67: IEC 60529-2013, IK10: IEC 62262:2002 |
| Colour | Black |
