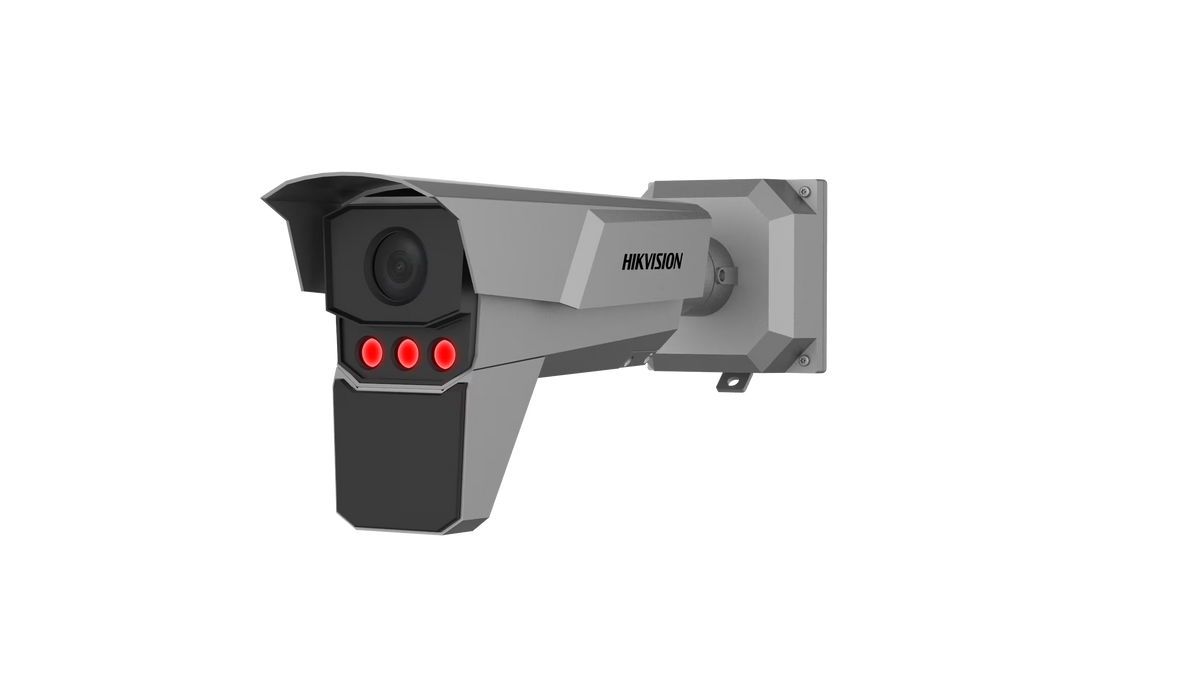

Hikvision iDS-TCM403-GIR/POE/0832 Radar-Assisted ANPR Smart Monitoring Camera, 4 MP, 8-32mm
Free Delivery
Save £383.50
About this product
The Hikvision iDS-TCM403-GIR/POE/0832 is a 4 MP radar-assisted ANPR smart monitoring camera with an 8-32mm lens, a built-in ANPR engine with AI algorithm and built-in 77GHz millimeter wave radar. It is for road traffic monitoring, with traffic flow and incident detection across up to 3 lanes.
Key features
- 4 MP resolution with 1/1.8″ progressive scan CMOS
- Built-in ANPR engine, equipped with AI algorithm
- Built-in 77GHz millimeter wave radar, detection distance up to 100 m
- 8-32mm lens, aperture F1.7, auto focus
- IR light, up to 50 m supplement light range, 850 nm
- 140 dB WDR for clear imaging against strong back light
- Water and dust resistant (IP68) and vandal proof (IK10)
- Built-in memory card slot, microSD/SDHC/SDXC up to 512GB
Frequently asked questions
What lens does the Hikvision iDS-TCM403-GIR/POE/0832 have?
It has an 8-32mm lens with an aperture of F1.7, giving a horizontal field of view of 41.9° to 15.1°.
What does the radar in the iDS-TCM403-GIR/POE/0832 do?
The built-in 77GHz millimeter wave radar has a detection distance of up to 100 m, a speed measuring range of up to 120Km/h and covers up to 3 lanes.
How far does the IR reach?
The built-in supplement light is IR light with a range of up to 50 m, at 850 nm.
How accurate is the number plate recognition?
Under recommended installation and lighting conditions, LPR accuracy is > 98% and the capture rate is > 99%.
Does it read UK number plates?
The UK is among the LPR countries and regions named by Hikvision for Europe.
What local storage does it support?
A built-in memory card slot supports microSD/SDHC/SDXC card, up to 512GB.
Technical Details
Specifications
Brand
Hikvision
Model
iDS-TCM403-GIR/POE/0832
Manufacturer Part Number (MPN)
iDS-TCM403-GIR/POE/0832
Image sensor
1/1.8″ progressive scan CMOS
Max. resolution
2688 × 1520
Min. illumination
Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter time
1/50 s to 1/40000 s
Day & night
IR cut filter
Lens
8-32mm
Field of view (8-32mm)
Horizontal: 41.9° to 15.1°, Vertical: 22.9° to 8.64°, Diagonal: 48.8° to 17.3°
Aperture (8-32 mm)
F1.7
Focus / iris type
Auto / DC-IRIS
Built-in supplement light type
IR light
Supplement light number
3
Built-in supplement light range
Up to 50 m
IR wavelength
850 nm
Radar working frequency
77 GHz
Radar modulation waveform
FMCW
Radar detection distance
Up to 100 m
Speed measuring range
Up to 120Km/h
Detection angle
Horizontal ± 22°, Vertical ± 10°
Coverage
Up to 3 lanes
Main stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288); 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
Video compression
Main stream: H.265/H.264/MJPEG; Sub-stream: H.265/H.264/MJPEG
Video bit rate
32 Kbps to 16 Mbps
Audio compression
G.711/G.722.1
WDR
140 dB
Image enhancement
BLC, 3D DNR
Day/night switch
Auto/Scheduled/Manual
Simultaneous live view
Up to 6 channels
API
ISAPI, SDK, ISUP, ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M)
User/host
Up to 32 users; 3 user levels: administrator, operator, and user
Network storage
Micro SD/TF card (512 GB), local storage and CVR, NVR, ANR
On-board storage
Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512GB
Web browser
Chrome V61+, IE9 to IE11, Firefox V41+, Edge
Ethernet interface
1 RJ45 10M/100M/1000M Ethernet interface
Alarm
1 input interface, 1 output interface, 2 relays
RS-485
1 RS-485 interface
Wiegand
1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit)
Accuracy (under recommended installation and lighting conditions)
Capture rate > 99%, vehicle moving direction recognition accuracy > 98.5%, LPR accuracy > 98%, mistaken capture rate < 2%
No license plate detection
Supported
Motorcycle LPR
Supported
Vehicle type
Car, Van, Bus, Truck, Light Truck, SUV(MPV), Pickup, Motorcycle, Tricycle
Vehicle color
Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black (recognizable at daytime only)
Traffic flow detection
Average speed, traffic flow, queuing length, and traffic status
Incident detection
Congestion, stopped vehicle, changing lanes, wrong-way driving, speeding, low-speed driving
Smart function
Helmet Detection, Manned Non-Motor
Protection
IP68, IK10
Specifications
| Brand | Hikvision |
|---|---|
| Model | iDS-TCM403-GIR/POE/0832 |
| Manufacturer Part Number (MPN) | iDS-TCM403-GIR/POE/0832 |
| Image sensor | 1/1.8″ progressive scan CMOS |
| Max. resolution | 2688 × 1520 |
| Min. illumination | Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter time | 1/50 s to 1/40000 s |
| Day & night | IR cut filter |
| Lens | 8-32mm |
| Field of view (8-32mm) | Horizontal: 41.9° to 15.1°, Vertical: 22.9° to 8.64°, Diagonal: 48.8° to 17.3° |
| Aperture (8-32 mm) | F1.7 |
| Focus / iris type | Auto / DC-IRIS |
| Built-in supplement light type | IR light |
| Supplement light number | 3 |
| Built-in supplement light range | Up to 50 m |
| IR wavelength | 850 nm |
| Radar working frequency | 77 GHz |
| Radar modulation waveform | FMCW |
| Radar detection distance | Up to 100 m |
| Speed measuring range | Up to 120Km/h |
| Detection angle | Horizontal ± 22°, Vertical ± 10° |
| Coverage | Up to 3 lanes |
| Main stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288); 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) |
| Video compression | Main stream: H.265/H.264/MJPEG; Sub-stream: H.265/H.264/MJPEG |
| Video bit rate | 32 Kbps to 16 Mbps |
| Audio compression | G.711/G.722.1 |
| WDR | 140 dB |
| Image enhancement | BLC, 3D DNR |
| Day/night switch | Auto/Scheduled/Manual |
| Simultaneous live view | Up to 6 channels |
| API | ISAPI, SDK, ISUP, ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M) |
| User/host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Network storage | Micro SD/TF card (512 GB), local storage and CVR, NVR, ANR |
| On-board storage | Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512GB |
| Web browser | Chrome V61+, IE9 to IE11, Firefox V41+, Edge |
| Ethernet interface | 1 RJ45 10M/100M/1000M Ethernet interface |
| Alarm | 1 input interface, 1 output interface, 2 relays |
| RS-485 | 1 RS-485 interface |
| Wiegand | 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit) |
| Accuracy (under recommended installation and lighting conditions) | Capture rate > 99%, vehicle moving direction recognition accuracy > 98.5%, LPR accuracy > 98%, mistaken capture rate < 2% |
| No license plate detection | Supported |
| Motorcycle LPR | Supported |
| Vehicle type | Car, Van, Bus, Truck, Light Truck, SUV(MPV), Pickup, Motorcycle, Tricycle |
| Vehicle color | Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black (recognizable at daytime only) |
| Traffic flow detection | Average speed, traffic flow, queuing length, and traffic status |
| Incident detection | Congestion, stopped vehicle, changing lanes, wrong-way driving, speeding, low-speed driving |
| Smart function | Helmet Detection, Manned Non-Motor |
| Protection | IP68, IK10 |
