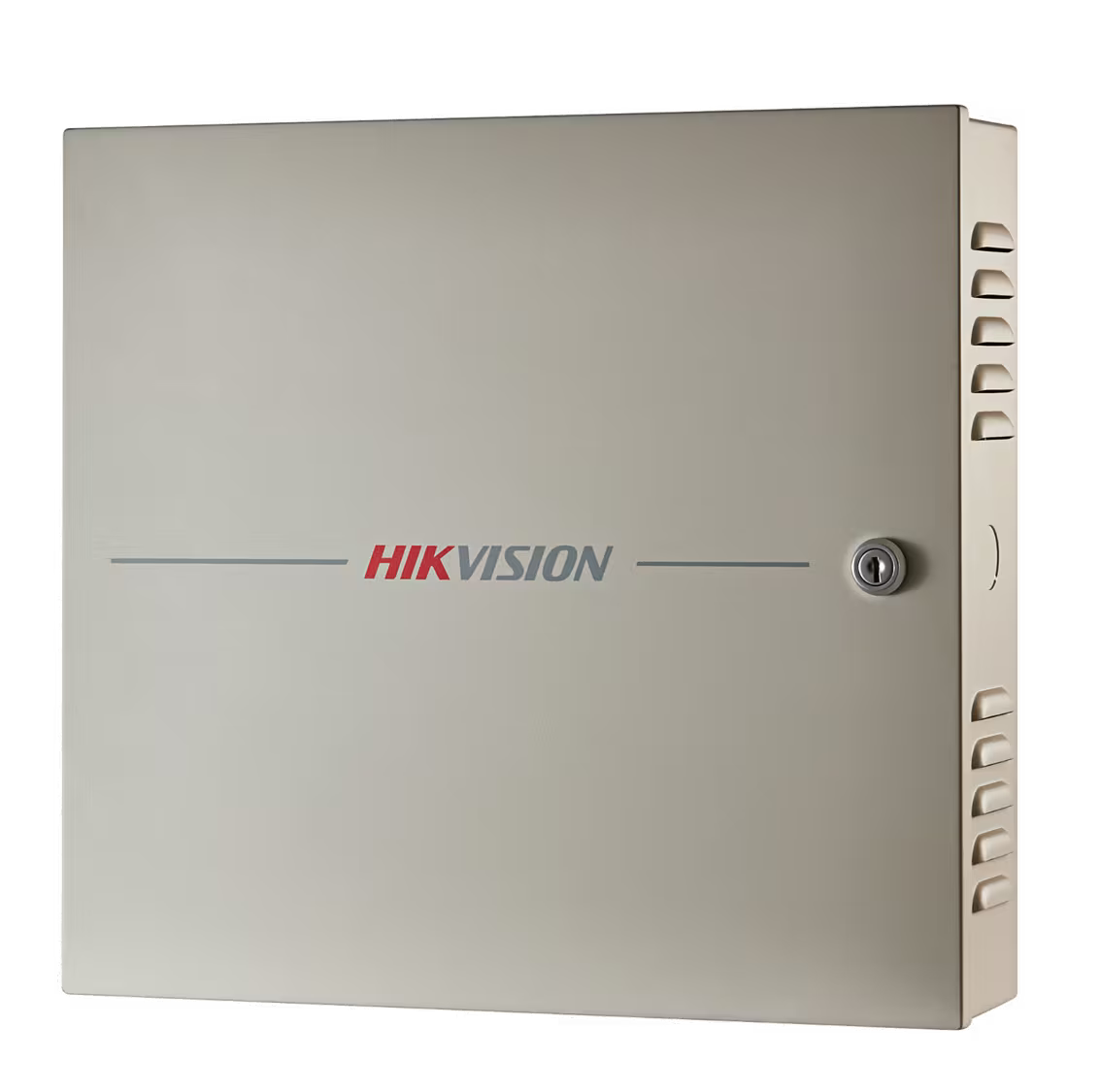

Hikvision DS-K2601T Single-Door Access Controller, 100,000 Cards, TCP/IP & RS-485
About this product
The Hikvision DS-K2601T is a single-door access controller from the DS-K2600T series, for access control systems, with network and RS-485 interfaces supporting TCP/IP and RS-485 communication protocols. It supports up to 100,000 cards and 300,000 card presenting records, and supports offline operation with a tamper-proof switch.
Key features
- Single-door access controller
- Connects 2 card readers (RS-485 interface) and 2 card readers (Wiegand interface)
- Up to 100,000 cards (97,000 non visitor and 3,000 visitor cards) and 300,000 card presenting records
- TCP/IP communication, EHome 5.0 and ISAPI protocol, with encrypted communication data
- RS-485, OSDP and Wiegand (W26, W34) card reader protocols
- Offline operation with record storage when the device is offline
- Anti-passback, multiple authentications and open door with first card functions
- 100 ~240 VAC power supply
Frequently asked questions
How many card readers can the DS-K2601T connect?
2 card readers on the RS-485 interface and 2 card readers on the Wiegand interface.
What power does it need?
A 100 ~240 VAC power supply. Power consumption is ≤ 50 W with load and ≤ 4 W without load.
How many cards and events can it store?
Up to 100,000 cards (including 97,000 non visitor cards and 3,000 visitor cards) and 300,000 card presenting records.
Does it keep working if the network goes down?
Yes. It supports offline operation, stores records when the device is offline, and data is permanently saved after it is powered off.
Which card reader protocols does it support?
RS-485, OSDP and Wiegand; the Wiegand interface supports W26 and W34 and is compatible with third-party card readers with a Wiegand interface.
What are its inputs and outputs?
Alarm input × 4, door contact × 1, exit button × 1, case input × 2 and tamper alarm × 1; lock relay × 1 and alarm relay × 2.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-K2601T |
| Manufacturer Part Number (MPN) | DS-K2601T |
| Power supply | 100 ~240 VAC |
| Power consumption (with load) | ≤ 50 W |
| Power consumption (without load) | ≤ 4 W |
| Processor | 32-bit |
| Storage | 32 M |
| Communication | TCP/IP, RS-485, Wiegand (W26/W34) |
| Capacity | 100,000 cards; 300,000 events |
| LED indicator | Power supply status, communication status, and work status |
| Built-in clock | Support |
| Accessible card reader | 2 card readers (RS-485 interface), and 2 card readers (Wiegand interface) |
| Input interface | Alarm input × 4, door contact × 1, exit button × 1, case input × 2, tamper alarm × 1 |
| Output interface | Lock relay × 1, alarm relay × 2 |
| Working temperature | -20 °C to +65 °C (-4 °F to +149 °F) |
| Working humidity | 10% to 90% (Non-condensing) |
| Dimensions (L × W × H) | 373 mm × 345 mm × 98 mm (14.7" × 13.6" × 3.6") |
| Approval | CE, FCC, CB |
