Hikvision IDS-TCM403-GIR/POE/2812 smart monitoring camera, 4MP

Free Delivery

About this product

Please note: this is a non-returnable item (excluding faulty goods)

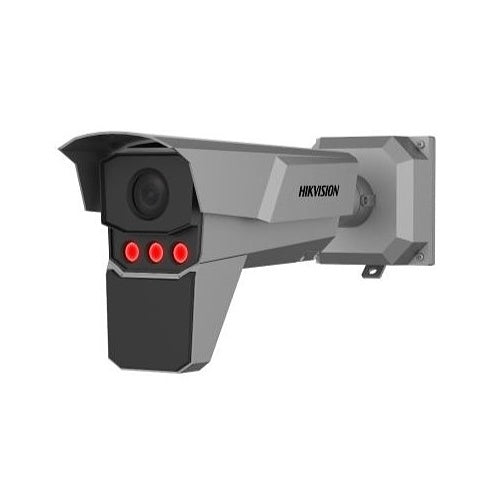

Hikvision IDS-TCM403-GIR/POE/2812 is a smart monitoring camera.

Introducing the Hikvision iDS-TCM403-GIR/POE/2812, a cutting-edge 4MP Radar-Assisted ANPR Smart Monitoring Camera designed to elevate your security measures. This advanced camera combines high-resolution imaging with radar technology, ensuring precise vehicle recognition and monitoring. Its robust design and smart features make it ideal for various environments, providing reliable performance day and night.

With easy installation and seamless integration into your existing security system, this camera is perfect for both residential and commercial applications.

Key features

  • High-quality imaging with 4MP resolution (1/1.8'' CMOS)
  • Built-in 77GHz high-frequency millimeter wave radar
  • Clear imaging against strong back light due to 140 dB WDR technology
  • Built-in ANPR engine, equipped with AI algorithm
  • Efficient H.265+ compression technology to save bandwidth and storage
  • Water and dust resistant (IP67) and vandal proof (IK10)
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Hikvision
Manufacturer Part Number
IDS-TCM403-GIR/POE/2812
Product Type
Network Camera
Technical information
Connectivity Technology
Wired
Effective resolution
4MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/1.38
Maximum Frame Rate
30fps
Minimum Focal Length
2.80mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Number of IR LEDs
3
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
2688 x 1520
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
50.00m
Certifications
Ingress protection
IP67
Display & graphics
Maximum video resolution
2688 x 1520
Environmental conditions
Maximum Operating Temperature
70°C
Minimum Operating Temperature
-30°C
Operating Humidity
95%
Exposure
Longest Shutter Speed
1/25 Second
Minimum Illumination
0.0001lux
Shortest Shutter Speed
1/100000 Second
Interfaces/ports
HDMI
No
Network (RJ-45)
Yes
Lens
Focal Length
2.8-12mm
Lens Included
Yes
Maximum Focal Length
2.80mm
Network & communication
Remote Management
No
Physical characteristics
Depth
429.50mm
Durability
Dust Resistant, Water Resistant
Form Factor
Bullet
Height
194.20mm
Weight
3.40kg
Width
120.00mm
Power description
Input Voltage
12-24V DC
Product information
Length
429.50mm
Storage
Storage Type
SD Card
Miscellaneous
Environmental status
Yes
Impact protection
IK10
Attributes
Indoor or outdoor use
Indoor, Outdoor
Input Voltage
12-24V DC
Weight
3.40kg

Specifications

Brand Name Hikvision
Manufacturer Part Number IDS-TCM403-GIR/POE/2812
Product Type Network Camera

Technical information

Connectivity Technology Wired
Effective resolution 4MP
Field of View Diagonal, Horizontal, Vertical
Lens Type Fixed
Maximum Aperture f/1.38
Maximum Frame Rate 30fps
Minimum Focal Length 2.80mm
Night Vision Yes
Night Vision Type Infrared (IR)
Number of IR LEDs 3
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution 2688 x 1520
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS
Night Vision Distance 50.00m

Certifications

Ingress protection IP67

Display & graphics

Maximum video resolution 2688 x 1520

Environmental conditions

Maximum Operating Temperature 70°C
Minimum Operating Temperature -30°C
Operating Humidity 95%

Exposure

Longest Shutter Speed 1/25 Second
Minimum Illumination 0.0001lux
Shortest Shutter Speed 1/100000 Second

Interfaces/ports

HDMI No
Network (RJ-45) Yes

Lens

Focal Length 2.8-12mm
Lens Included Yes
Maximum Focal Length 2.80mm

Network & communication

Remote Management No

Physical characteristics

Depth 429.50mm
Durability Dust Resistant, Water Resistant
Form Factor Bullet
Height 194.20mm
Weight 3.40kg
Width 120.00mm

Power description

Input Voltage 12-24V DC

Product information

Length 429.50mm

Storage

Storage Type SD Card

Miscellaneous

Environmental status Yes
Impact protection IK10

Attributes

Indoor or outdoor use Indoor, Outdoor
Input Voltage 12-24V DC
Weight 3.40kg

Hikvision IDS-TCM403-GIR/POE/2812 smart monitoring camera

Hikvision IDS-TCM403-GIR/POE/2812 smart monitoring camera, 4MP

Who this is for

For the installer — this is the smart monitoring camera supplied under Hikvision part number IDS-TCM403-GIR/POE/2812. Specify it by that part number.

The entries in the specification table are the ones held against this part number.

In plain English: this is a smart monitoring camera made by Hikvision. The part number IDS-TCM403-GIR/POE/2812 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this smart monitoring camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact smart monitoring camera I have been quoted? Check the manufacturer part number IDS-TCM403-GIR/POE/2812 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against IDS-TCM403-GIR/POE/2812 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Hikvision IDS-TCM403-GIR/POE/2812 smart monitoring camera
Hikvision

Hikvision IDS-TCM403-GIR/POE/2812 smart monitoring camera, 4MP

£2,608.47

Please note: this is a non-returnable item (excluding faulty goods)

Hikvision IDS-TCM403-GIR/POE/2812 is a smart monitoring camera.

Introducing the Hikvision iDS-TCM403-GIR/POE/2812, a cutting-edge 4MP Radar-Assisted ANPR Smart Monitoring Camera designed to elevate your security measures. This advanced camera combines high-resolution imaging with radar technology, ensuring precise vehicle recognition and monitoring. Its robust design and smart features make it ideal for various environments, providing reliable performance day and night.

With easy installation and seamless integration into your existing security system, this camera is perfect for both residential and commercial applications.

Key features
