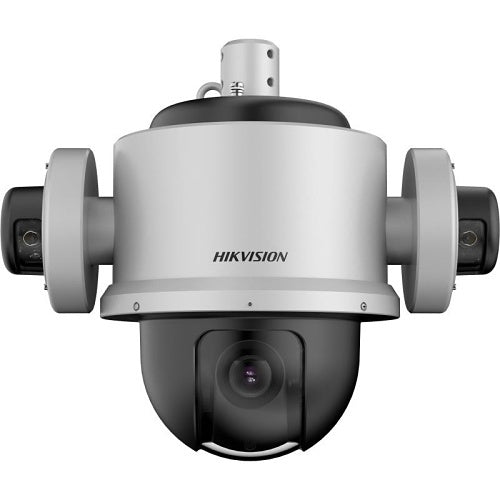

Hikvision DS-2DF8432IWG-CXF(316L) speed dome camera, 4MP
Free Delivery
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hikvision DS-2DF8432IWG-CXF(316L) is a speed dome camera from the Explosion-Proof range.
The Hikvision DS-2DF8432IWG-CXF(316L) is an explosion-proof 4MP IP Speed Dome Camera designed for high-quality imaging in demanding environments. It features a 32x optical zoom with a focal length range of 4.8mm to 153.6mm, supporting efficient H.265/H.265+ compression technology for optimized performance. The camera includes advanced imaging capabilities such as 3D DNR and 120 dB true WDR, enabling clear images in challenging lighting conditions.
Rated IP68 for water and dust resistance, it also provides an extensive night view with up to 100m IR distance while maintaining low power consumption.
Key features
- High quality imaging with 4MP resolution
- 32x Optical zoom, focal length 4.8mm to 153.6mm
- Efficient H.265 /H.265 compression technology
- Water and dust resistant (IP68 2m/2h)
- 3D DNR and low bitrate technology delivers clean and sharp images
- Clear imaging against strong back light due to 120 dB true WDR technology
- Expansive night view with up to 100m IR distance with low power consumption
Technical Details
Specifications
Brand Name
Hikvision
Manufacturer Part Number
DS-2DF8432IWG-CXF(316L)
Product Series
Explosion-Proof
Product Type
PTZ Security Camera
Technical information
Aperture
f/1.6
Effective resolution
4MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Zoom
Maximum Aperture
f/1.6
Maximum Frame Rate
30fps
Minimum Focal Length
4.80mm
Motion Detection
Yes
Night Vision
Yes
Night Vision Type
Infrared (IR)
Optical Zoom
32.0x
Power Consumption
60.0000W
Protocols
DHCP, DNS, FTP, HTTP, HTTPS, IPv4, IPv6, RTP, RTSP, SNMP, TCP, TLS/SSL, UDP
Video Formats
H.265 / HEVC, H.265+
Wide Dynamic Range
Yes
Audio
Audio Encoding
G.711, G.722.1, G.726
Camera
Image Sensor Type
CMOS
Certifications
CE marking
Yes
Ingress protection
IP68
Display & graphics
Image Sensor Size
1/2.8"
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Operating Temperature (T-T)
-40-60°C
Exposure
Longest Shutter Speed
1/1s
Minimum Illumination
0.0010lux
Shortest Shutter Speed
1/30000s
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
4.8-153.6mm
Focus Modes
Auto Focus, Manual Focus
Lens Included
Yes
Maximum Focal Length
153.60mm
Memory
Memory Card Supported
microSD, microSDHC, microSDXC
Physical characteristics
Durability
Dust Resistant, Water Resistant
Form Factor
Dome
Material
Stainless Steel
Weight
16.50kg
Power description
Input Voltage
100-240V AC
Maximum Power Consumption
60.00W
Storage
Storage Type
SD Card
Video
Maximum Resolution
2560 x 1440
Miscellaneous
Environmental certification
CE
Attributes
Environmental status
Yes
Input Voltage
100-240V AC
Weight
16.50kg
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | DS-2DF8432IWG-CXF(316L) |
| Product Series | Explosion-Proof |
| Product Type | PTZ Security Camera |
Technical information
| Aperture | f/1.6 |
|---|---|
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Zoom |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 4.80mm |
| Motion Detection | Yes |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Optical Zoom | 32.0x |
| Power Consumption | 60.0000W |
| Protocols | DHCP, DNS, FTP, HTTP, HTTPS, IPv4, IPv6, RTP, RTSP, SNMP, TCP, TLS/SSL, UDP |
| Video Formats | H.265 / HEVC, H.265+ |
| Wide Dynamic Range | Yes |
Audio
| Audio Encoding | G.711, G.722.1, G.726 |
|---|
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| CE marking | Yes |
|---|---|
| Ingress protection | IP68 |
Display & graphics
| Image Sensor Size | 1/2.8" |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
| Operating Temperature (T-T) | -40-60°C |
Exposure
| Longest Shutter Speed | 1/1s |
|---|---|
| Minimum Illumination | 0.0010lux |
| Shortest Shutter Speed | 1/30000s |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 4.8-153.6mm |
|---|---|
| Focus Modes | Auto Focus, Manual Focus |
| Lens Included | Yes |
| Maximum Focal Length | 153.60mm |
Memory
| Memory Card Supported | microSD, microSDHC, microSDXC |
|---|
Physical characteristics
| Durability | Dust Resistant, Water Resistant |
|---|---|
| Form Factor | Dome |
| Material | Stainless Steel |
| Weight | 16.50kg |
Power description
| Input Voltage | 100-240V AC |
|---|---|
| Maximum Power Consumption | 60.00W |
Storage
| Storage Type | SD Card |
|---|
Video
| Maximum Resolution | 2560 x 1440 |
|---|
Miscellaneous
| Environmental certification | CE |
|---|
Attributes
| Environmental status | Yes |
|---|---|
| Input Voltage | 100-240V AC |
| Weight | 16.50kg |
