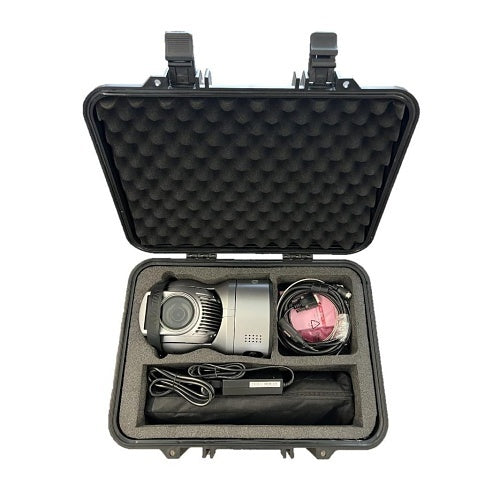

Hikvision IDS-MCD402-ES/36X/I/GLE speed dome kit, 3840 x 2160

Free Delivery

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Hikvision IDS-MCD402-ES/36X/I/GLE is a speed dome kit.

Discover the advanced capabilities of the Hikvision iDS-MCD402-ES/36X/I/GLE 4G Dual-lens ANPR Portable Speed Dome Kit. This cutting-edge device features dual cameras with 1/1.8" progressive scan CMOS sensors, ensuring high-quality imaging. Its magnetic base and tripod bracket allow for swift installation, while the replaceable battery ensures continuous operation.

Access the device remotely via IE browser or client, and stay informed with the embedded screen displaying vital information such as battery life, GPS, and connectivity status. Experience comprehensive coverage with 360° pan and a tilt range of -20° to 90°. Ideal for security professionals seeking reliable and versatile surveillance solutions.

Key features

  • Support for dual cameras, Lens1 : 1/1.8" progressive scan CMOS; Lens2 : 1/1.8" CMOS
  • Quick installation with the magnetic base and the tripod bracket
  • Replaceable battery for sustainable work
  • Supports accessing via IE browser and client, and remote operation
  • Embedded screen for status display, e.g. battery, GPS, 3G/4G, record status, storage capacity, Bluetooth, platform access, Wi-Fi, and smart algorithm mode
  • 360° endless pan and -20° to 90° (auto-flip) tilt movement range for PTZ
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Hikvision
Manufacturer Part Number
IDS-MCD402-ES/36X/I/GLE
Product Type
Dome Kit
Technical information
Connectivity Technology
Wireless
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Fixed
Maximum Frame Rate
30fps
Minimum Focal Length
2.80mm
Night Vision
Yes
Night Vision Type
Infrared (IR)
Optical Zoom
36.0x
Video Formats
H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution
3840 x 2160
Wide Dynamic Range
Yes
Camera
Image Sensor Type
CMOS
Night Vision Distance
100.00m
Certifications
Ingress protection
IP66
Display & graphics
Maximum video resolution
3840 x 2160
Environmental conditions
Maximum Operating Temperature
60°C
Minimum Operating Temperature
-20°C
Operating Humidity
95%
Exposure
Minimum Illumination
0.0005lux
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
2.8mm, 6-216mm
Lens Included
Yes
Maximum Focal Length
216.00mm
Network & communication
Remote Management
Yes
Physical characteristics
Depth
257.00mm
Form Factor
Dome
Height
257.00mm
Width
395.00mm
Product information
Length
500.00mm
Mount Type
Tripod Mount, Wall Mount
Miscellaneous
Indoor or outdoor use
Indoor, Outdoor
Attributes
Package Contents
AC power cord; Battery Charger DS-MH1491; C92-screwdriver; Composite cable; Lithium-ion battery; Mounting support plate for tripod; Portable plastic box; Safety rope , Tripod DS-MH1697

Specifications

Brand Name Hikvision
Manufacturer Part Number IDS-MCD402-ES/36X/I/GLE
Product Type Dome Kit

Technical information

Connectivity Technology Wireless
Field of View Diagonal, Horizontal, Vertical
Lens Type Fixed
Maximum Frame Rate 30fps
Minimum Focal Length 2.80mm
Night Vision Yes
Night Vision Type Infrared (IR)
Optical Zoom 36.0x
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG
Video Resolution 3840 x 2160
Wide Dynamic Range Yes

Camera

Image Sensor Type CMOS
Night Vision Distance 100.00m

Certifications

Ingress protection IP66

Display & graphics

Maximum video resolution 3840 x 2160

Environmental conditions

Maximum Operating Temperature 60°C
Minimum Operating Temperature -20°C
Operating Humidity 95%

Exposure

Minimum Illumination 0.0005lux

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 2.8mm, 6-216mm
Lens Included Yes
Maximum Focal Length 216.00mm

Network & communication

Remote Management Yes

Physical characteristics

Depth 257.00mm
Form Factor Dome
Height 257.00mm
Width 395.00mm

Product information

Length 500.00mm
Mount Type Tripod Mount, Wall Mount

Miscellaneous

Indoor or outdoor use Indoor, Outdoor

Attributes

Package Contents AC power cord; Battery Charger DS-MH1491; C92-screwdriver; Composite cable; Lithium-ion battery; Mounting support plate for tripod; Portable plastic box; Safety rope , Tripod DS-MH1697

Hikvision IDS-MCD402-ES/36X/I/GLE speed dome kit

Hikvision IDS-MCD402-ES/36X/I/GLE speed dome kit, 3840 x 2160

Who this is for

For the installer — this is the speed dome kit supplied under Hikvision part number IDS-MCD402-ES/36X/I/GLE. Specify it by that part number.

The entries in the specification table are the ones held against this part number.

In plain English: this is a speed dome kit made by Hikvision. The part number IDS-MCD402-ES/36X/I/GLE is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this speed dome kit is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact speed dome kit I have been quoted? Check the manufacturer part number IDS-MCD402-ES/36X/I/GLE against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against IDS-MCD402-ES/36X/I/GLE answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
