Hikvision DS-96256NI-H16R super NVR, 4096 x 2160
About this product
Please note: this is a non-returnable item (excluding faulty goods)

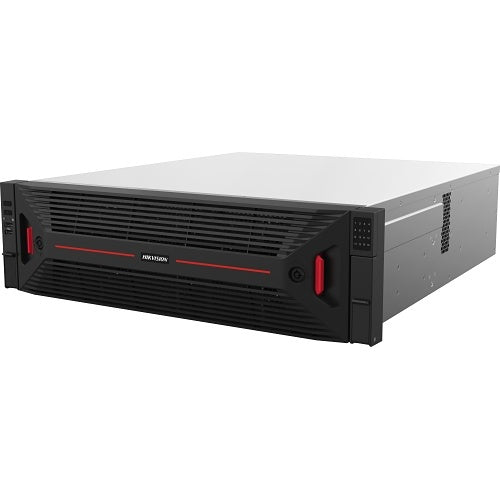

Hikvision DS-96256NI-H16R is a super NVR.
Introducing the Hikvision DS-96256NI-H16R, a powerful 256-channel 8K Super NVR designed for advanced surveillance needs. With the capability to support up to 256 IP camera inputs and decode up to 48-channel at 1080p, this NVR ensures high-quality video management. It boasts an impressive incoming and outgoing bandwidth of 1.25 Gbps, allowing for seamless data transmission.
The device is compatible with specialized cameras, including those for people counting and automatic number plate recognition. Its advanced streaming technology guarantees smooth live views, even in challenging network conditions. Additionally, with RAID support for various configurations and the ability to connect up to 8 IP speakers, this NVR offers reliable data storage and enhanced audio capabilities.
Elevate your security system with the Hikvision DS-96256NI-H16R today!
Key features
- Up to 256-channel IP camera inputs
- Up to 48-channel at 1080p decoding capacity
- Up to 1.25Gbps incoming bandwidth and 1.25Gbps outgoing bandwidth
- Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
- Advanced streaming technology enables smooth live view in poor network conditions
- Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks
- Up to 8-channel IP speakers can be connected
If you are matching this to an existing installation, work from the DS-96256NI-H16R part number rather than the description.
Specifications
Technical information
Controllers
Display & graphics
Environmental conditions
Interfaces/ports
Physical characteristics
Power description
Attributes
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | DS-96256NI-H16R |
Technical information
| Number of Channels | 256 |
|---|---|
| Protocols | DHCP, DNS, HTTP, HTTPS, IPv4, IPv6, iSCSI, NFS, RTSP, SNMP |
| Storage Capacity | 20TB |
| Video Formats | H.264 / AVC, H.264+, H.265 / HEVC, H.265+ |
Controllers
| RAID Levels | RAID 0, RAID 1, RAID 5, RAID 6 |
|---|
Display & graphics
| Maximum video resolution | 4096 x 2160 |
|---|
Environmental conditions
| Operating Humidity | 90% |
|---|---|
| Operating Temperature (T-T) | 0-50°C |
Interfaces/ports
| HDMI | Yes |
|---|---|
| Network (RJ-45) | Yes |
| VGA | Yes |
Physical characteristics
| Depth | 489.00mm |
|---|---|
| Form Factor | 3U |
| Height | 133.00mm |
| Width | 445.00mm |
Power description
| Input Voltage | 100-240V AC |
|---|---|
| Maximum Power Consumption | 75.00W |
Attributes
| Input Voltage | 100-240V AC |
|---|
