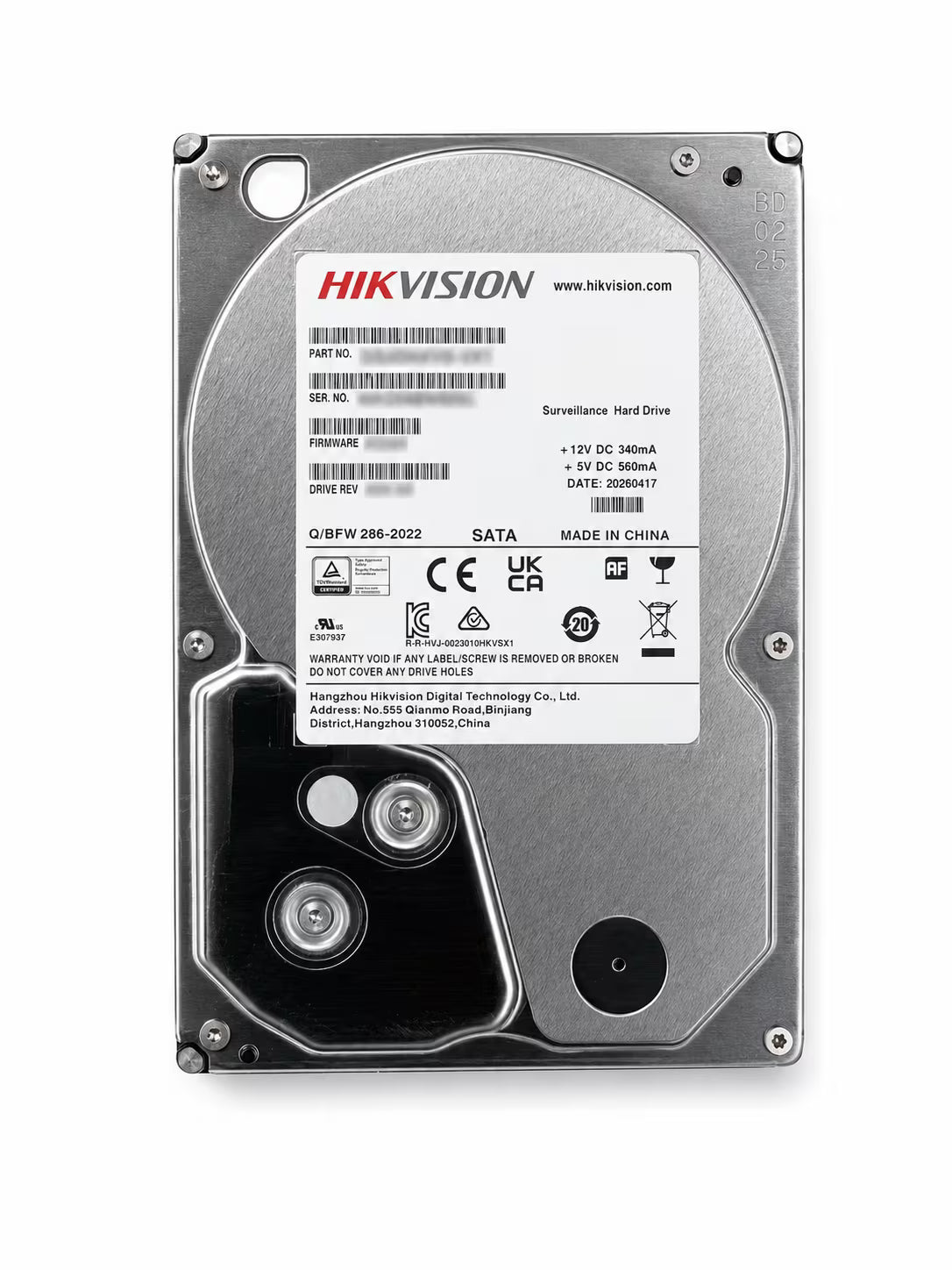

Hikvision DS-60HKVS-VX1 Surveillance HDD, 6TB
Free Delivery
Save £52.32
About this product
The Hikvision DS-60HKVS-VX1 is a surveillance hard drive with a SATA interface and a 5400 rpm rotation speed, designed for 24x7 operation. Its formatted capacity is 6 TB, where one terabyte (TB) is one trillion bytes; actual formatted capacity may vary.
Key features
- 6 TB formatted capacity (one terabyte (TB) = one trillion bytes; actual formatted capacity may vary)
- SATA interface
- 5400 rpm rotation speed
- Designed for 24x7 operation (24 hours/day, 7 days/week)
- Load / unload rating of 600 000 times
- Advanced Format 512e sector technology
- Industry-standard 3.5-inch form factor (the form factor, not the drive's physical size)
- Width 101.6 mm ± 0.25 mm, height up to 26.1 mm, length up to 147.0 mm; maximum weight 680 g
Frequently asked questions
What capacity is it?
6 TB formatted capacity. One terabyte (TB) is one trillion bytes, and actual formatted capacity may vary.
How many cameras does it support?
Up to 64 cameras' high-definition streams, a number defined by performance simulation with high definition cameras at 4 Mbit/s rate; actual results may vary.
What interface does it use?
SATA, with a 5400 rpm rotation speed.
Is it designed for 24x7 operation?
Yes: 24 hours/day, 7 days/week.
What is its operating temperature?
0 °C to 60 °C ambient (no condensation).
-
Download
- DS-60HKVS-VX1 Tech Sheet
Technical Details
Specifications
Brand
Hikvision
Model
DS-60HKVS-VX1
Manufacturer Part Number (MPN)
DS-60HKVS-VX1
Formatted Capacity
6 TB (one terabyte (TB) = one trillion bytes; actual formatted capacity may vary)
Interface
SATA
Interface Speed
6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s (read and write speed may vary depending on the host device, read and write conditions, and file size; may be restricted to the response speed of host system and by transmission characteristics)
Rotation Speed
5400 rpm
Buffer Size
256 MB (a mebibyte (MB) means 1 048 576 bytes)
Maximum Data Transfer Speed (Sustained) (Typ.)
176.4 MB/s (may be restricted to the response speed of host system and by transmission characteristics; 1 MB/s = 1 048 576 B/s)
Logical Data Block Length
HOST: 512 B, DISK: 4096 B (read–modify-write is supported)
Power Consumption (Typ.)
Operating 4.84 W (measured using 80% random read/write and 20 % performance idle), Active idle 2.81 W, Standby 0.36 W
Allowable Voltage
12 V ± 10 % / 5 V ± 5 % (specified at the HDD connector side, during HDD ready state; not less than DC -0.3 V (less than -0.6 V, 0.1 ms) when turning on or off the power)
Acoustics (Sound Power), Low Power Idle (Typ.)
24 dB (measuring method based on ISO 7779)
MTTF / AFR
1 000 000 hours / 0.88 % (POH: 8760 hours per one year of 24 x 7 operational capabilities for normal surveillance usage and environments; average HDA surface temperature 40°C or less, workloads 180 TB/year; continual or sustained operation at case HDA surface temperature above 40°C may degrade product reliability)
Rated Annual Workload
180 TB/year (data written, read or verified by commands from host system)
Load / Unload
600 000 times
Availability
24 hours/day, 7 days/week
Dimensions (Width x Height (Max) x Length (Max))
101.6 mm ± 0.25 mm x 26.1 mm x 147.0 mm
Weight (Max)
680 g
Operating Temperature (Ambient)
0 °C to 60 °C (No condensation)
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-60HKVS-VX1 |
| Manufacturer Part Number (MPN) | DS-60HKVS-VX1 |
| Formatted Capacity | 6 TB (one terabyte (TB) = one trillion bytes; actual formatted capacity may vary) |
| Interface | SATA |
| Interface Speed | 6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s (read and write speed may vary depending on the host device, read and write conditions, and file size; may be restricted to the response speed of host system and by transmission characteristics) |
| Rotation Speed | 5400 rpm |
| Buffer Size | 256 MB (a mebibyte (MB) means 1 048 576 bytes) |
| Maximum Data Transfer Speed (Sustained) (Typ.) | 176.4 MB/s (may be restricted to the response speed of host system and by transmission characteristics; 1 MB/s = 1 048 576 B/s) |
| Logical Data Block Length | HOST: 512 B, DISK: 4096 B (read–modify-write is supported) |
| Power Consumption (Typ.) | Operating 4.84 W (measured using 80% random read/write and 20 % performance idle), Active idle 2.81 W, Standby 0.36 W |
| Allowable Voltage | 12 V ± 10 % / 5 V ± 5 % (specified at the HDD connector side, during HDD ready state; not less than DC -0.3 V (less than -0.6 V, 0.1 ms) when turning on or off the power) |
| Acoustics (Sound Power), Low Power Idle (Typ.) | 24 dB (measuring method based on ISO 7779) |
| MTTF / AFR | 1 000 000 hours / 0.88 % (POH: 8760 hours per one year of 24 x 7 operational capabilities for normal surveillance usage and environments; average HDA surface temperature 40°C or less, workloads 180 TB/year; continual or sustained operation at case HDA surface temperature above 40°C may degrade product reliability) |
| Rated Annual Workload | 180 TB/year (data written, read or verified by commands from host system) |
| Load / Unload | 600 000 times |
| Availability | 24 hours/day, 7 days/week |
| Dimensions (Width x Height (Max) x Length (Max)) | 101.6 mm ± 0.25 mm x 26.1 mm x 147.0 mm |
| Weight (Max) | 680 g |
| Operating Temperature (Ambient) | 0 °C to 60 °C (No condensation) |
