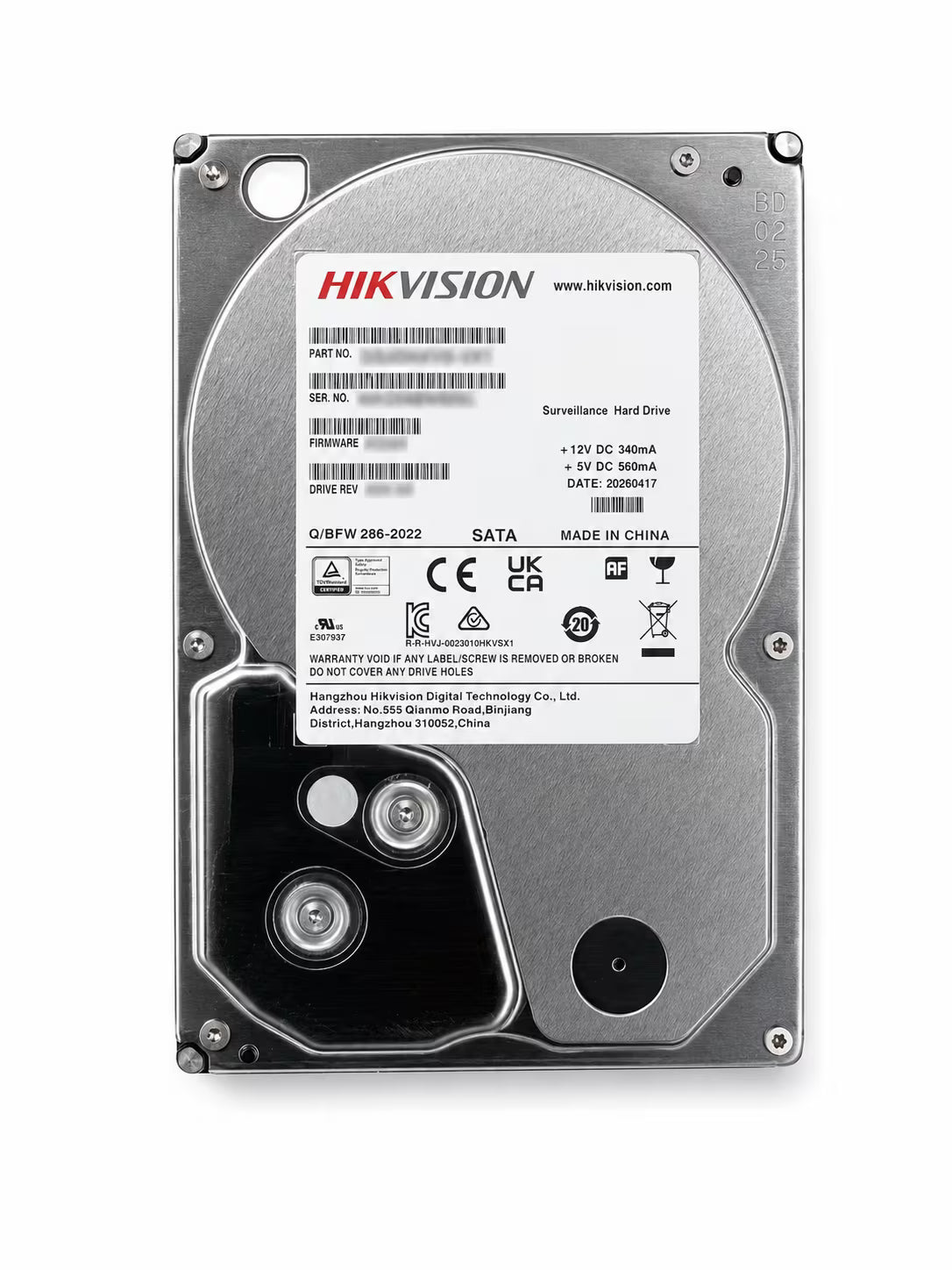

Hikvision DS-80HKVS-VX1 Surveillance HDD, 8TB
Free Delivery
Save £78.32
About this product
The Hikvision DS-80HKVS-VX1 is a surveillance hard drive with a SATA interface and a 7200 rpm rotation speed, designed for 24x7 operation. Its formatted capacity is 8 TB, where one terabyte (TB) is one trillion bytes; actual formatted capacity may vary.
Key features
- 8 TB formatted capacity (one terabyte (TB) = one trillion bytes; actual formatted capacity may vary)
- SATA interface
- 7200 rpm rotation speed
- Designed for 24x7 operation (24 hours/day, 7 days/week)
- 256 MB cache buffer
- Load / unload rating of 600 000 times
- Industry-standard 3.5-inch form factor, 26.1 mm height (3.5-inch is the form factor, not the drive's physical size)
- Width 101.85 mm, height up to 26.1 mm, length up to 147.0 mm; maximum weight 720 g
Frequently asked questions
What capacity is it?
8 TB formatted capacity. One terabyte (TB) is one trillion bytes, and actual formatted capacity may vary.
What rotation speed and interface does it have?
7200 rpm, with a SATA interface.
What is its rated annual workload?
360 TB/year, workload being the amount of data written, read or verified by commands from the host system.
Is it designed for 24x7 operation?
Yes: 24 hours/day, 7 days/week.
What is its operating temperature?
5 °C to 55 °C ambient (no condensation).
-
Download
- DS-80HKVS-VX1 Tech Sheet
Technical Details
Specifications
Brand
Hikvision
Model
DS-80HKVS-VX1
Manufacturer Part Number (MPN)
DS-80HKVS-VX1
Formatted Capacity
8 TB (one terabyte (TB) = one trillion bytes; actual formatted capacity may vary)
Interface
SATA
Interface Speed
6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s (read and write speed may vary depending on the host device, read and write conditions, and file size)
Rotation Speed
7200 rpm
Buffer Size
256 MB
Maximum Data Transfer Speed (Sustained) (Typ.)
220 MB/s
Power Consumption (Typ.)
Operating 9.29 W (operating watt is measured using 80% random read/write and 20 % performance idle), Active idle 5.61 W, Standby 0.60 W
Allowable Voltage
12 V ± 10 % / 5 V ± 5 % (input voltages are specified at the HDD connector side, during HDD ready state; not less than DC -0.3 V (less than -0.6 V, 0.1 ms) when turning on or off the power)
Acoustics (Sound Power), Low Power Idle (Typ.)
31 dB (measuring method based on ISO 7779)
Rated Annual Workload
360 TB/year (data written, read or verified by commands from host system)
Load / Unload
600 000 times
Availability
24 hours/day, 7 days/week
Dimensions (Width x Height (Max) x Length (Max))
101.85 mm x 26.1 mm x 147.0 mm
Weight (Max)
720 g
Operating Temperature (Ambient)
5 °C to 55 °C (No condensation)
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-80HKVS-VX1 |
| Manufacturer Part Number (MPN) | DS-80HKVS-VX1 |
| Formatted Capacity | 8 TB (one terabyte (TB) = one trillion bytes; actual formatted capacity may vary) |
| Interface | SATA |
| Interface Speed | 6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s (read and write speed may vary depending on the host device, read and write conditions, and file size) |
| Rotation Speed | 7200 rpm |
| Buffer Size | 256 MB |
| Maximum Data Transfer Speed (Sustained) (Typ.) | 220 MB/s |
| Power Consumption (Typ.) | Operating 9.29 W (operating watt is measured using 80% random read/write and 20 % performance idle), Active idle 5.61 W, Standby 0.60 W |
| Allowable Voltage | 12 V ± 10 % / 5 V ± 5 % (input voltages are specified at the HDD connector side, during HDD ready state; not less than DC -0.3 V (less than -0.6 V, 0.1 ms) when turning on or off the power) |
| Acoustics (Sound Power), Low Power Idle (Typ.) | 31 dB (measuring method based on ISO 7779) |
| Rated Annual Workload | 360 TB/year (data written, read or verified by commands from host system) |
| Load / Unload | 600 000 times |
| Availability | 24 hours/day, 7 days/week |
| Dimensions (Width x Height (Max) x Length (Max)) | 101.85 mm x 26.1 mm x 147.0 mm |
| Weight (Max) | 720 g |
| Operating Temperature (Ambient) | 5 °C to 55 °C (No condensation) |
