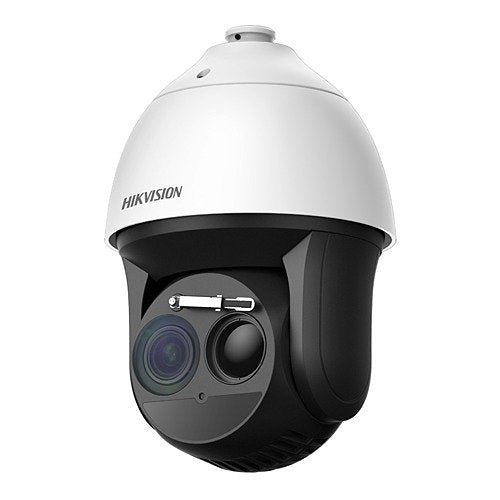

Hikvision DS-2TD4137T-25/W(B) thermal imaging camera, 4MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hikvision DS-2TD4137T-25/W(B) is a thermal imaging camera from the Bi-spectrum Thermography Speed Dome Series range.
Hikvision DS-2TD4137T-25/W Thermographic Thermal & Optical Bi-spectrum Network Speed Dome is applied to manufacture process supervision of pyrophoric materials in factories, electric substation, and hydropower station. The accurate temperature measurement system sends you alarms to protect you from property loss.
Key features
- Behavior analysis function, based on deep learning algorithm: line crossing, intrusion, region entrance and exit
- Temperature exception alarm for fire prevention
- Fire detection algorithm
- 384 × 288 (the resolution of output image is 1920 × 1080) resolution 17 µm, VOx UFPA, NETD ? 35 mK (25 °C, F# = 1.1)
- Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
- Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking
- Smart tracking linkage: thermal view and optical view
- Thermal channel supports EIS, conflicted with intelligent function
- Smoke detection for fire prevention
-
Download
- DS-2TD4137T-25/W(B) — User Manual
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Storage
Attributes
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | DS-2TD4137T-25/W(B) |
| Product Series | Bi-spectrum Thermography Speed Dome Series |
| Product Type | Thermal Imaging Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 4MP |
| Field of View | Horizontal, Vertical |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.3 |
| Maximum Frame Rate | 50fps |
| Minimum Focal Length | 6.00mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Optical Zoom | 40.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 200.00m |
Certifications
| Ingress protection | IP66 |
|---|
Display & graphics
| Maximum video resolution | 2688 x 1520 |
|---|
Environmental conditions
| Maximum Operating Temperature | 65°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/1 Second |
|---|---|
| Minimum Illumination | 0.0010lux |
| Shortest Shutter Speed | 1/30000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 6-240mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 240.00mm |
| Maximum Thermal Focal Length | 25.00mm |
| Minimum Aperture | f/4.6 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Form Factor | Dome |
|---|---|
| Weight | 9.00kg |
Power description
| Input Voltage | 24V AC, 36V DC, 48V DC |
|---|
Storage
| Storage Type | SD Card |
|---|
Attributes
| Features | Bi-spectrum Thermography |
|---|---|
| Input Voltage | 24V AC, 36V DC, 48V DC |
| Weight | 9.00kg |
Hikvision DS-2TD4137T-25/W(B) thermal imaging camera, 4MP
