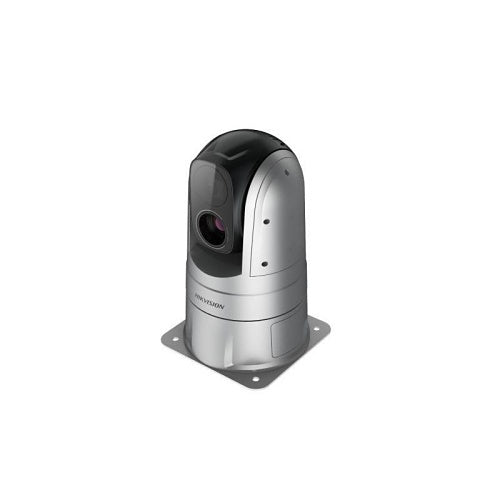

Hikvision DS-2TD4538-25A4/W thermal PTZ camera, 4MP

Free Delivery

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Hikvision DS-2TD4538-25A4/W is a thermal PTZ camera from the PT range.

Hikvision DS-2TD4538-25A4/W Bi-spectrum mobile thermal PTZ camera supports temperature measurement and perimeter protection. DS-2TD4538-25A4/W has a wide range of applications in fields such as fire engine, patrol vehicle in some scenarios like perimeter protection, construction site, etc.

Key features

  • 384 x 288 resolution, 12 um, VOx UFPA, NETD 35 mK (25°C, F1.0)
  • High accuracy temperature exception alarm, -20°C to 150°C (-4°F to 302°F), 8°C (14.4°F)
  • Image processing technology linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
  • Support GPS positioning function
  • 2.4GHz Wi-Fi, easy for set-up LTE-TDD/LTE-FDD/WCDMA 4G wireless network transmission, support Micro SIM card
  • Professionally designed structure, strong anti-shake capacity
  • E-mark and EN45545 on-board certification
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Hikvision
Manufacturer Part Number
DS-2TD4538-25A4/W
Product Series
PT
Product Type
Mobile & Vehicle Dash Camera
Technical information
Aperture
f/1
Effective resolution
4MP
Field of View
Horizontal, Vertical
Maximum Aperture
f/1.6
Maximum Frame Rate
30fps
Power Consumption
20.0000W
Protocols
DHCP, DNS, FTP, HTTP, HTTPS, IPv4, IPv6, RTP, RTSP, SNMP, TCP, UDP
Video Formats
H.264 / AVC, H.264+, H.265 / HEVC, H.265+, MJPEG
Wide Dynamic Range
Yes
Camera
Camera Type
PTZ Camera
Image Sensor Type
Vanadium Oxide Uncooled Focal Plane Arrays
Certifications
Ingress protection
IP67
Environmental conditions
Maximum Operating Temperature
70°C
Minimum Operating Temperature
-40°C
Operating Humidity
90%
Operating Temperature (T-T)
-40-70°C
Exposure
Longest Shutter Speed
1/1s
Shortest Shutter Speed
1/130000s
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
25mm
Maximum Focal Length
25.00mm
Minimum Aperture
f/1
Power description
Frequency
2GHz
Input Voltage
8-36V DC
Maximum Power Consumption
20.00W
Power over Ethernet (PoE)
Yes
Power Source
DC Power, PoE (Power over Ethernet)
Product information
Diameter
180.00mm
Attributes
Input Voltage
8-36V DC
Power Source
DC Power, PoE (Power over Ethernet)

Specifications

Brand Name Hikvision
Manufacturer Part Number DS-2TD4538-25A4/W
Product Series PT
Product Type Mobile & Vehicle Dash Camera

Technical information

Aperture f/1
Effective resolution 4MP
Field of View Horizontal, Vertical
Maximum Aperture f/1.6
Maximum Frame Rate 30fps
Power Consumption 20.0000W
Protocols DHCP, DNS, FTP, HTTP, HTTPS, IPv4, IPv6, RTP, RTSP, SNMP, TCP, UDP
Video Formats H.264 / AVC, H.264+, H.265 / HEVC, H.265+, MJPEG
Wide Dynamic Range Yes

Camera

Camera Type PTZ Camera
Image Sensor Type Vanadium Oxide Uncooled Focal Plane Arrays

Certifications

Ingress protection IP67

Environmental conditions

Maximum Operating Temperature 70°C
Minimum Operating Temperature -40°C
Operating Humidity 90%
Operating Temperature (T-T) -40-70°C

Exposure

Longest Shutter Speed 1/1s
Shortest Shutter Speed 1/130000s

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 25mm
Maximum Focal Length 25.00mm
Minimum Aperture f/1

Power description

Frequency 2GHz
Input Voltage 8-36V DC
Maximum Power Consumption 20.00W
Power over Ethernet (PoE) Yes
Power Source DC Power, PoE (Power over Ethernet)

Product information

Diameter 180.00mm

Attributes

Input Voltage 8-36V DC
Power Source DC Power, PoE (Power over Ethernet)

Hikvision DS-2TD4538-25A4/W thermal PTZ camera

Hikvision DS-2TD4538-25A4/W thermal PTZ camera, 4MP

Who this is for

For the installer — this is the thermal PTZ camera supplied under Hikvision part number DS-2TD4538-25A4/W. Specify it by that part number.

The entries in the specification table are the ones held against this part number.

In plain English: this is a thermal PTZ camera made by Hikvision. The part number DS-2TD4538-25A4/W is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this thermal PTZ camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact thermal PTZ camera I have been quoted? Check the manufacturer part number DS-2TD4538-25A4/W against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against DS-2TD4538-25A4/W answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
