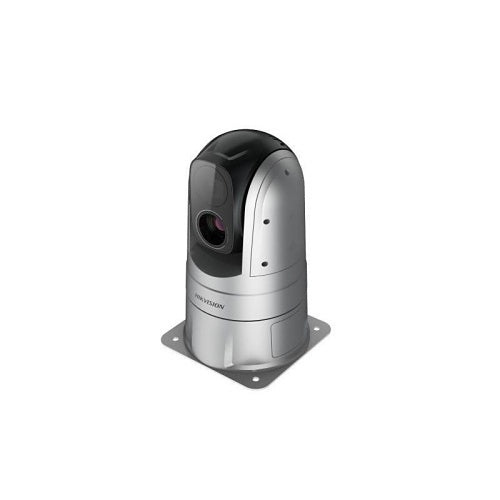

Hikvision DS-2TD4568-35A4/W thermal PTZ camera, 4MP
Free Delivery
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hikvision DS-2TD4568-35A4/W is a thermal PTZ camera from the PT range.
Hikvision DS-2TD4568-35A4/W Bi-spectrum mobile thermal PTZ camera supports temperature measurement and perimeter protection. DS-2TD4568-35A4/W has a wide range of applications in fields such as fire engine, patrol vehicle in some scenarios like perimeter protection, construction site, etc.
Key features
- 640 x 512 resolution, 12 um, VOx UFPA, NETD 35 mK (25°C, F1.0)
- Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), 8°C (14.4°F)
- Image processing technology linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- Support GPS positioning function
- 2.4GHz Wi-Fi, easy for set-up LTE-TDD/LTE-FDD/WCDMA 4G wireless network transmission, support Micro SIM card
- Professionally designed structure, strong anti-shake capacity
- E-mark and EN45545 on-board certification
Technical Details
Specifications
Brand Name
Hikvision
Manufacturer Part Number
DS-2TD4568-35A4/W
Product Series
PT
Product Type
PTZ Security Camera
Technical information
Aperture
f/1
Effective resolution
4MP
Field of View
Horizontal, Vertical
Maximum Aperture
f/1.6
Maximum Frame Rate
30fps
Power Consumption
25.0000W
Protocols
DHCP, DNS, FTP, HTTP, HTTPS, IPv4, IPv6, RTP, RTSP, SNMP, TCP, UDP
Video Formats
H.264 / AVC, H.264+, H.265 / HEVC, H.265+, MJPEG
Wide Dynamic Range
Yes
Camera
Camera Type
PTZ Camera
Image Sensor Type
Vanadium Oxide Uncooled Focal Plane Arrays
Certifications
Ingress protection
IP67
Environmental conditions
Maximum Operating Temperature
70°C
Minimum Operating Temperature
-40°C
Operating Humidity
90%
Operating Temperature (T-T)
-40-70°C
Exposure
Longest Shutter Speed
1/1s
Shortest Shutter Speed
1/130000s
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
35mm
Maximum Focal Length
35.00mm
Minimum Aperture
f/1
Power description
Frequency
2GHz
Input Voltage
8-36V DC
Maximum Power Consumption
25.00W
Power over Ethernet (PoE)
Yes
Power Source
DC Power, PoE (Power over Ethernet)
Product information
Diameter
180.00mm
Attributes
Input Voltage
8-36V DC
Power Source
DC Power, PoE (Power over Ethernet)
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | DS-2TD4568-35A4/W |
| Product Series | PT |
| Product Type | PTZ Security Camera |
Technical information
| Aperture | f/1 |
|---|---|
| Effective resolution | 4MP |
| Field of View | Horizontal, Vertical |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Power Consumption | 25.0000W |
| Protocols | DHCP, DNS, FTP, HTTP, HTTPS, IPv4, IPv6, RTP, RTSP, SNMP, TCP, UDP |
| Video Formats | H.264 / AVC, H.264+, H.265 / HEVC, H.265+, MJPEG |
| Wide Dynamic Range | Yes |
Camera
| Camera Type | PTZ Camera |
|---|---|
| Image Sensor Type | Vanadium Oxide Uncooled Focal Plane Arrays |
Certifications
| Ingress protection | IP67 |
|---|
Environmental conditions
| Maximum Operating Temperature | 70°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 90% |
| Operating Temperature (T-T) | -40-70°C |
Exposure
| Longest Shutter Speed | 1/1s |
|---|---|
| Shortest Shutter Speed | 1/130000s |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 35mm |
|---|---|
| Maximum Focal Length | 35.00mm |
| Minimum Aperture | f/1 |
Power description
| Frequency | 2GHz |
|---|---|
| Input Voltage | 8-36V DC |
| Maximum Power Consumption | 25.00W |
| Power over Ethernet (PoE) | Yes |
| Power Source | DC Power, PoE (Power over Ethernet) |
Product information
| Diameter | 180.00mm |
|---|
Attributes
| Input Voltage | 8-36V DC |
|---|---|
| Power Source | DC Power, PoE (Power over Ethernet) |
Hikvision DS-2TD4568-35A4/W thermal PTZ camera, 4MP
