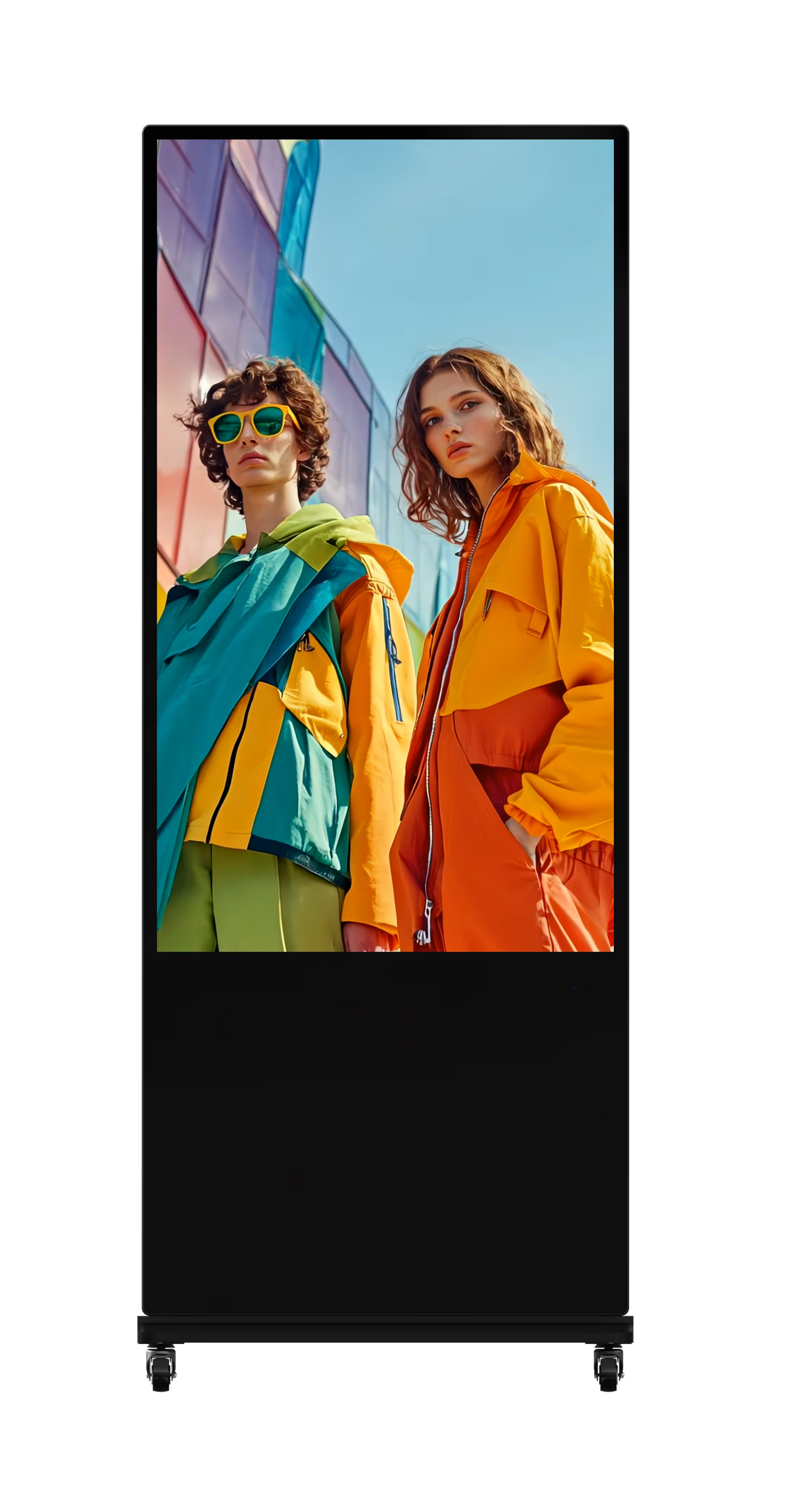

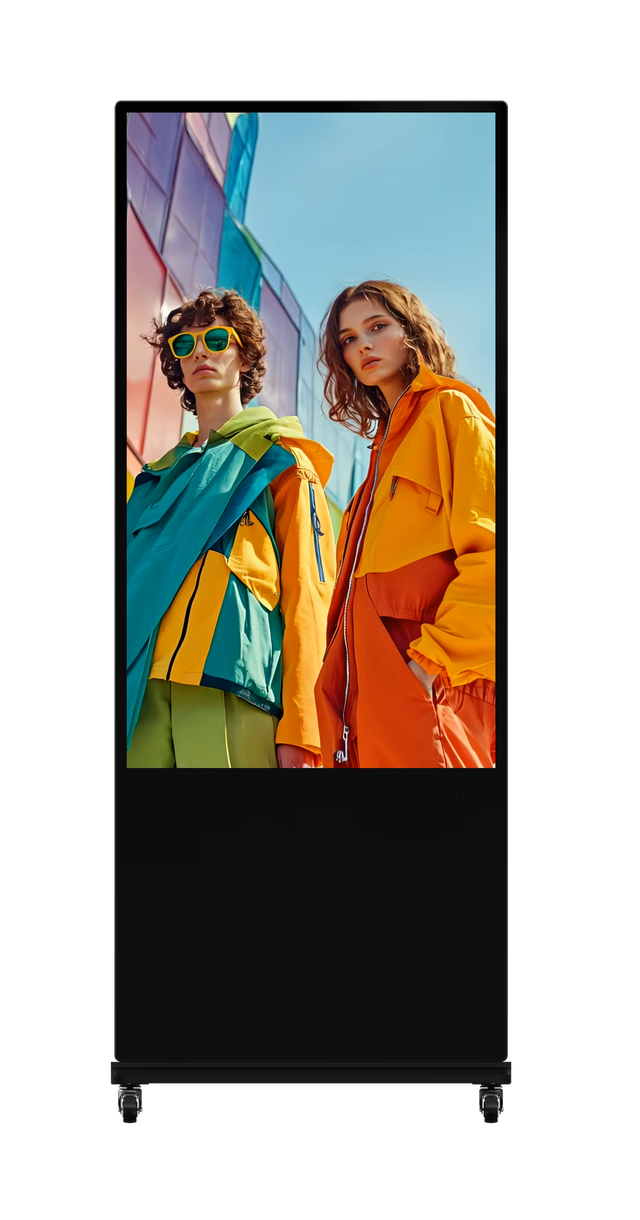

Hikvision DS-D6055UT-D/S Touchable Floor Standing Digital Signage, 55"

Display and touch

The DS-D6055UT-D/S has a 55 inch IPS panel at 3840 × 2160 with an E-LED backlight, in a 9 : 16 display ratio. Brightness is 500 cd/m², the contrast ratio 1200:1, the viewing angle 178°(H)/178°(V), the response time 8 ms and the refresh rate 60 Hz. The glass is frosted and anti-glare.

Touch is capacitive (G+G) with 10 touch points and a touch response time of < 25 ms, suitable for installing self ordering or navigation applications.

System and content

It runs Android 13 on a Cortex-A55, 4-core processor (main frequency 1.92 GHz), with 4 GB memory and 32 GB EMMC built-in storage. Content can follow a flexible program schedule, with play modes including play by day, play by week, play by loop and custom play, and one screen or more screens can be controlled and managed remotely.

Connections, power and installation

Interfaces are HDMI 2.0 (HDCP 2.2) × 1 in, 2 x speaker (8Ω 5 W) out, RJ45 × 1, Wi-Fi (2.4G/5G, 802.11 a/b/g/n/ac/ax) × 1, RS232 in × 1, RS232 out × 1, USB 2.0 × 1, USB 3.0 × 1 and BT 5.4 × 1.

Input voltage is 100 to 240 VAC, 50/60 Hz; power consumption is 108 W (typ), 155 W (max). Its working temperature is 0 °C to 40 °C, and it is rated for 7 × 24h reliability.

It is floor standing and measures 727 (W) × 1816 (H) × 63.8 (D) mm with the stand; net weight is 42.7 kg. The package includes the digital signage, a stand, a power cord, a remote control and a user manual.
