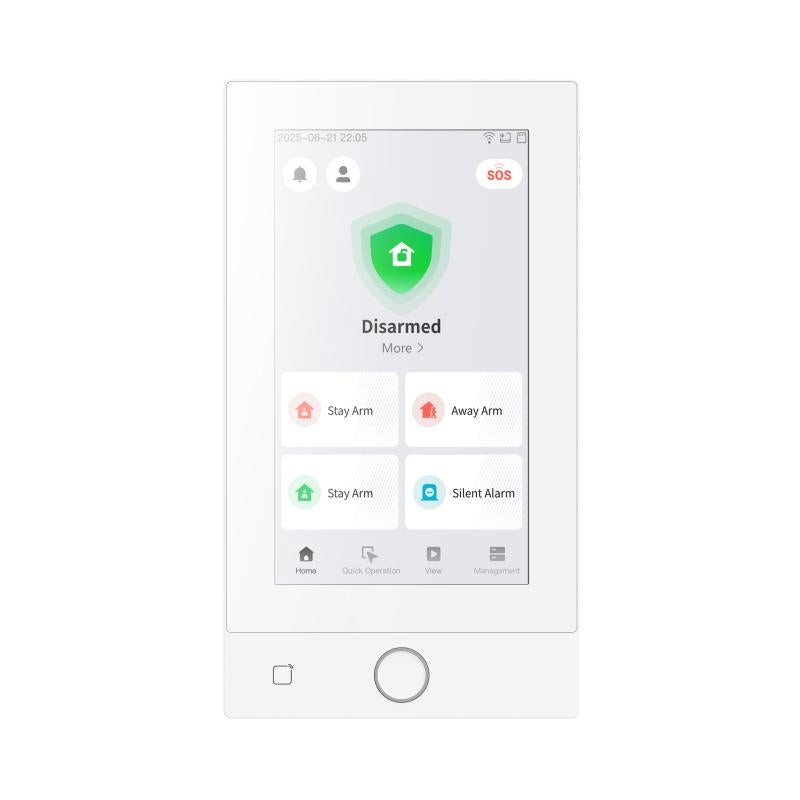

Hikvision DS-PK670MDW-HWE/White Touchscreen Alarm Keypad, 7" LCD, White

What it does

The DS-PK670MDW-HWE is a touchscreen keypad with a 7" Colorful LCD (resolution 600*1024) and an intuitive interface for system control. Shortcut keys give quick operation and flexible relay or area control.

Users authenticate with the built-in tag reader (M1/DESFire® card), a PIN of 4~6 digits or a keyfob; up to 64 wireless keyfobs are supported. The keypad keeps 200 event log records.

Where it is used

The application scenario is indoor, with wall mounting. The operating temperature is -10°C to 50°C and relative humidity 10%-90% non-condensing.

Installation notes

The keypad connects on a Half-Duplex RS-485 bus over 4-Core Alarm Cable (at least 2x0.5mm2+2x0.22mm2), and is powered by bus at 12 VDC nominal (9~24 VDC). Quiescent current is 270mA@12VDC, with max. current 400mA@12VDC.

It supports 2 wired zones and 1 relay output (1A 30VDC) for integration with external devices. Network connection is by LAN (10/100 Mbps self-adaptive) or Wi-Fi (802.11b/g/n, 2.4GHz).

Wireless interconnection uses 868Mhz R3 wireless technology with GFSK modulation, and a transmission range of 800m (open area). Tamper-proofing covers the front and rear.

Day to day

From the keypad, users can preview live cameras via Wi-Fi or LAN and review events, with alarm verification videos or pictures stored on an SD card (FAT32, up to 128G). A loudspeaker is built in.
