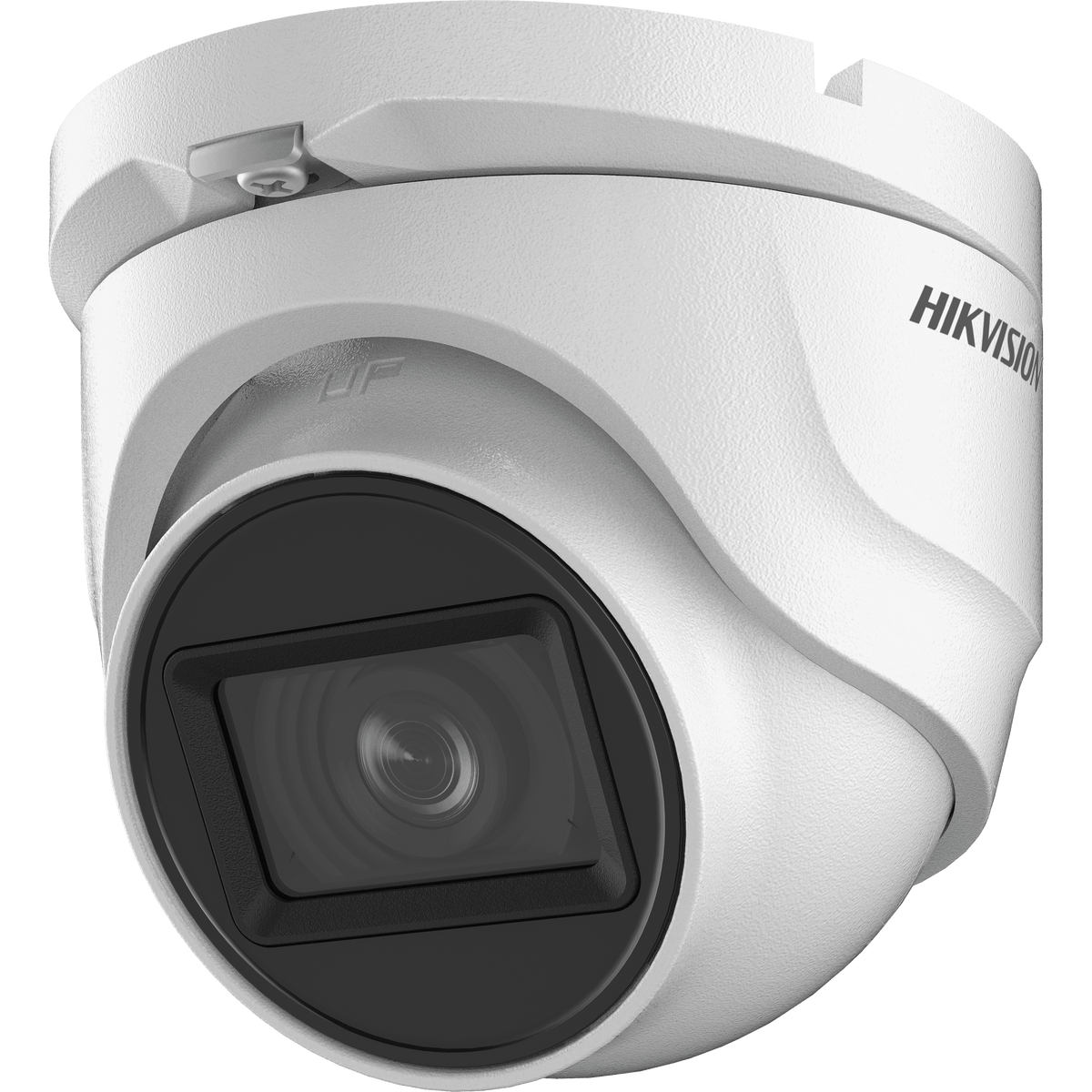

Hikvision DS-2CE76U1T-ITMF(2.8MM) 4-in-1 Turret Camera, 8MP, Up to 30m IR
About this product
The Hikvision DS-2CE76U1T-ITMF(2.8MM) is an 8 MP turret camera with a 2.8 mm fixed lens and 1 HD analog output switchable between TVI, AHD, CVI and CVBS, for analogue HD CCTV systems. EXIR 2.0 advanced infrared technology gives up to 30 m IR distance, and the camera is water and dust resistant (IP67).
Key features
- 8 MP resolution: 3840 (H) × 2160 (V) from an 8.29 megapixel progressive scan CMOS
- 4 in 1 output: switchable TVI/AHD/CVI/CVBS
- EXIR 2.0 infrared, up to 30 m IR distance
- 2.8 mm fixed lens with a horizontal FOV of 102.2°
- Digital WDR, BLC and HLC
- Water and dust resistant (IP67)
- 12 VDC ±25% power, max. 5.3 W
Frequently asked questions
What video signals does the DS-2CE76U1T-ITMF(2.8MM) output?
It has 1 HD analog output, switchable between TVI, AHD, CVI and CVBS.
How far does the infrared reach?
Up to 30 m, using EXIR 2.0 advanced infrared technology.
How is the camera powered?
By 12 VDC ±25%, max. 5.3 W. One power adapter per camera is recommended.
What frame rate does it give at 8 MP?
Over TVI it gives 8MP@12.5fps or 8MP@15fps; CVI also gives 8MP@12.5fps or 8MP@15fps.
What field of view does the 2.8 mm lens give?
A horizontal FOV of 102.2°.
What temperatures does it work in?
It operates from -40 °C to 60 °C with humidity of 90% or less (non-condensation).
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2CE76U1T-ITMF(2.8MM) |
| Manufacturer Part Number (MPN) | DS-2CE76U1T-ITMF(2.8MM) |
| Image Sensor | 8.29 megapixel progressive scan CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s; NTSC: 1/15 s to 1/50,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Signal System | PAL/NTSC |
| Lens Type | 2.8 mm fixed focal lens |
| Horizontal FOV (2.8 mm) | 102.2° |
| Lens Mount | M16 |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| Frame Rate (TVI) | 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps |
| Frame Rate (CVI) | 8MP@12.5fps, 8MP@15fps |
| Frame Rate (AHD) | 8M@12.5fps, 8M@15fps |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| WDR | Digital WDR |
| Image Enhancement | BLC, HLC |
| Noise Reduction | 2D DNR |
| White Balance | Auto/Manual |
| Video Output | Switchable TVI/AHD/CVI/CVBS, 1 HD analog output |
| Power | 12 VDC ±25%, max. 5.3 W |
| Material | Metal |
| Dimension | 90 mm × 79.37 mm (3.54" × 3.12") |
| Weight | Approx. 310 g (0.68 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Protection | IP67 |
