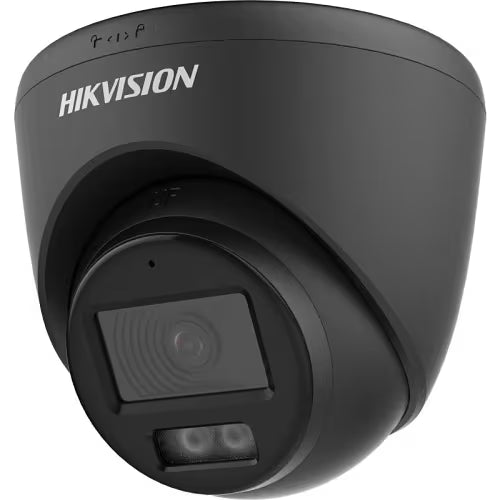

Hikvision DS-2CE72KF0T-LTS(2.8mm)/BLACK Two Way Audio Fixed Turret Camera, 3K, 2.8mm
About this product
The Hikvision DS-2CE72KF0T-LTS(2.8mm)/BLACK is a 3K two way audio fixed turret camera for HD analog (TVI) CCTV systems, with a built-in mic and built-in speaker for real-time communication. It gives 24/7 colour imaging with an F1.0 aperture and up to 40 m white light and 40 m IR distance.
Key features
- 3K, 2960 × 1664 resolution
- 24/7 colour imaging with F1.0 aperture
- Smart-Hybrid Light: up to 40 m white light and 40 m IR distance
- Built-in mic and built-in speaker for two-way audio
- Audio over coaxial cable
- 2.8 mm fixed lens, horizontal FOV: 105.0°
- Water and dust resistant (IP67)
- 3D DNR noise reduction
Frequently asked questions
How far can the DS-2CE72KF0T-LTS(2.8mm)/BLACK see at night?
Its supplement light reaches IR: up to 40 m and white light: up to 40 m.
Does it have two-way audio?
Yes. It has a built-in mic and built-in speaker for real-time communication via built-in two-way audio, with audio over coaxial cable.
What field of view does the 2.8 mm lens give?
Horizontal FOV: 105.0°, vertical FOV: 62.5°, diagonal FOV: 129°.
What power does it need?
12 VDC ± 25%, max. 5.3 W, with one power adapter per camera recommended.
How weather resistant is it?
It is water and dust resistant (IP67) and operates from -40 °C to 60 °C.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2CE72KF0T-LTS(2.8mm)/BLACK |
| Manufacturer Part Number (MPN) | DS-2CE72KF0T-LTS(2.8mm)/BLACK |
| Image Sensor | 3K CMOS |
| Max. Resolution | 2960 (H) × 1664 (V) |
| Min. Illumination | 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/30 s to 1/50,000 s,NTSC: 1/15 s to 1/50,000 s |
| Day & Night | ICR |
| Signal System | PAL/NTSC |
| Lens Type | 2.8 mm fixed lens |
| Field of View (2.8 mm) | horizontal FOV: 105.0°, vertical FOV: 62.5°, diagonal FOV: 129° |
| Lens Mount | M12 |
| Supplement Light Type | Smart,IR,White Light |
| Supplement Light Range | IR: Up to 40 m,White Light: Up to 40 m |
| Microphone Pickup Distance | In a radius of up to 5 m |
| Speaker Rated Power | 2 W |
| Speaker Range | In a radius of up to 5 m |
| Audio Function | Echo Cancellation, AI Noise Reduction, Automatic Gain Control |
| Frame Rate | TVI: 3K @10 fps/12.5 fps/20 fps/25 fps, 4 MP @25 fps/30 fps, 1080P @25 fps/30 fps |
| Noise Reduction | 3D DNR |
| Video Output | 1 HD analog output |
| Communication | HIKVISION-C |
| Angle Adjustment | Pan: 0° to 360°,Tilt: 0° to 75°,Rotate: 0° to 360° |
| Power | 12 VDC ± 25%, max. 5.3 W |
| Material | Main body: Metal; Enclosure: Plastic |
| Dimension | Ø110 mm × 102.7 mm |
| Weight | Approx. 375 g |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing) |
| Protection | IP67 |
| Colour | Black |
