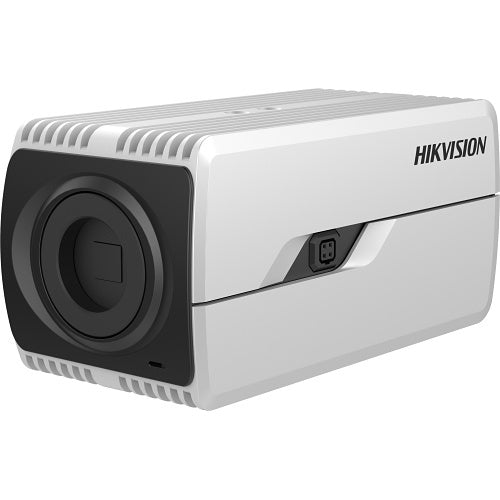

Hikvision iDS-2CD7046G2-AP varifocal box camera, 4MP

Free Delivery

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Hikvision iDS-2CD7046G2-AP is a varifocal box camera.

Hikvision has been dedicated to develop products with security since established. Hikvision always follows security by design principle and has adopted many methods of security technologies into our product development lifecycle, including terminal security, data security, application security, network security, and privacy protection. In the meantime, the security technologies used by Hikvision are all in compliance with local applicable laws and safety regulations.

These security measures could enhance product's cyber security protection capability and protect your devices as well as your data from malicious cyber attacks.

Key features

  • High quality imaging with 4 MP resolution
  • Excellent low-light performance via DarkFighter 2.0 technology
  • Clear imaging against strong back light due to 150 dB AWDR technology
  • Efficient H.265+ compression technology to save bandwidth and storage
  • 5 streams to meet a wide variety of applications
  • Built-in microphone for real-time audio security
  • Capture vehicles and humans of different speed clearly via ShotN technology
  • High frame rate, up to 2MP at 120fps and 4MP at 60fps
  • Built-in G-sensor for vibration detection
  • Built-in power meter for historical power statistics

If you are matching this to an existing installation, work from the iDS-2CD7046G2-AP part number rather than the description.

Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Hikvision
Manufacturer Part Number
iDS-2CD7046G2-AP
Technical information
Built-in Microphone
Yes
Effective resolution
4MP
Lens Mount Type
CS-Mount
Maximum Frame Rate
60fps
Motion Detection
Yes
Night Vision
Yes
Night Vision Type
Infrared (IR)
Power Consumption
9.2000W
Protocols
DHCP, DNS, FTP, HTTP, HTTPS, IPv4, IPv6, RTP, RTSP, SNMP, UDP, WebSocket
Video Formats
H.264 / AVC, H.264+, H.265 / HEVC, H.265+, MJPEG
Wide Dynamic Range
Yes
Audio
Audio Encoding
AAC, G.711, G.722.1, G.726
Camera
Image Sensor Type
CMOS
Display & graphics
Image Sensor Size
1/1.8"
Maximum video resolution
2688 x 1520
Environmental conditions
Maximum Operating Temperature
65°C
Minimum Operating Temperature
-30°C
Operating Humidity
95%
Operating Temperature (T-T)
-30-65°C
Storage Temperature (T-T)
-30-65°C
Exposure
Longest Shutter Speed
1 Second
Minimum Illumination
0.0005lux
Shortest Shutter Speed
1/100000 Second
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
3.5mm
Lens Included
Yes
Maximum Focal Length
3.50mm
Physical characteristics
Material
Aluminum Alloy
Power description
Input Voltage
12V DC, 24V AC
Maximum Power Consumption
9.60W
Power over Ethernet (PoE)
Yes
Power Source
AC Power, DC Power, PoE (Power over Ethernet)
Storage
Storage Type
SD Card
Video
Maximum Resolution
2688 x 1520
Attributes
Environmental status
Yes
Input Voltage
12V DC, 24V AC
Power Source
AC Power, DC Power, PoE (Power over Ethernet)

Specifications

Brand Name Hikvision
Manufacturer Part Number iDS-2CD7046G2-AP

Technical information

Built-in Microphone Yes
Effective resolution 4MP
Lens Mount Type CS-Mount
Maximum Frame Rate 60fps
Motion Detection Yes
Night Vision Yes
Night Vision Type Infrared (IR)
Power Consumption 9.2000W
Protocols DHCP, DNS, FTP, HTTP, HTTPS, IPv4, IPv6, RTP, RTSP, SNMP, UDP, WebSocket
Video Formats H.264 / AVC, H.264+, H.265 / HEVC, H.265+, MJPEG
Wide Dynamic Range Yes

Audio

Audio Encoding AAC, G.711, G.722.1, G.726

Camera

Image Sensor Type CMOS

Display & graphics

Image Sensor Size 1/1.8"
Maximum video resolution 2688 x 1520

Environmental conditions

Maximum Operating Temperature 65°C
Minimum Operating Temperature -30°C
Operating Humidity 95%
Operating Temperature (T-T) -30-65°C
Storage Temperature (T-T) -30-65°C

Exposure

Longest Shutter Speed 1 Second
Minimum Illumination 0.0005lux
Shortest Shutter Speed 1/100000 Second

Interfaces/ports

Network (RJ-45) Yes

Lens

Focal Length 3.5mm
Lens Included Yes
Maximum Focal Length 3.50mm

Physical characteristics

Material Aluminum Alloy

Power description

Input Voltage 12V DC, 24V AC
Maximum Power Consumption 9.60W
Power over Ethernet (PoE) Yes
Power Source AC Power, DC Power, PoE (Power over Ethernet)

Storage

Storage Type SD Card

Video

Maximum Resolution 2688 x 1520

Attributes

Environmental status Yes
Input Voltage 12V DC, 24V AC
Power Source AC Power, DC Power, PoE (Power over Ethernet)

Hikvision iDS-2CD7046G2-AP varifocal box camera

Hikvision iDS-2CD7046G2-AP varifocal box camera, 4MP

Who this is for

For the installer — this is the varifocal box camera supplied under Hikvision part number iDS-2CD7046G2-AP. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a varifocal box camera made by Hikvision. The part number iDS-2CD7046G2-AP is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this varifocal box camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact varifocal box camera I have been quoted? Check the manufacturer part number iDS-2CD7046G2-AP against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against iDS-2CD7046G2-AP answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
