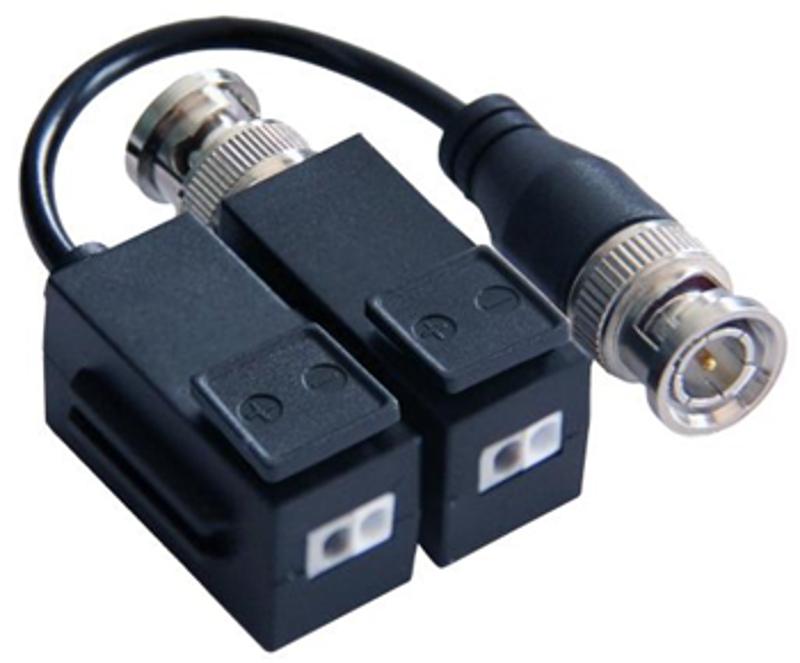

Hikvision DS-1H18-A Video Balun, Max 350m, UTP Cat5e/6
About this product
The Hikvision DS-1H18-A is a 1-channel video balun for real-time transmission over UTP cat5e/6, with a transmission distance of max 350m.
Key features
- Real-time transmission over UTP cat5e/6
- Transmission distance max 350m
- Compatible format: HD-TVI/TVI/AHD/CVBS
- Resolution: 720P/960P/1080P/3MP/4MP/5MP/8MP
- Built-in solid state TVS (Transient Voltage Suppressor) for surge protection
- 60 dB crosstalk and noise immunity
- Wave filter design and anti-static design
- ABS engineering plastic housing
Frequently asked questions
How far can the DS-1H18-A transmit video?
Transmission distance is max 350m over UTP CAT 5E/6 cable.
How many video channels does it carry?
1 channel.
What connectors does it have?
A BNC-M coaxial video connector and a tool-less push-pin terminal block for the twisted-pair cable.
Does it have surge protection?
Yes. It has a built-in solid state TVS (Transient Voltage Suppressor) for surge protection, with 2KV (common-code) on the coaxial cable connector and 2KV (different-code) and 2KV (common-code) on the UTP cable connector, per IEC61000-4-5.
What are its operating conditions?
Operating temperature -20º ~55º C and humidity 0~95% (non-condensing).
Technical Details
Specifications
Brand
Hikvision
Model
DS-1H18-A
Manufacturer Part Number (MPN)
DS-1H18-A
Transmission Signal
1 channel
Transmission Distance
Max 350m
Category Type
UTP CAT 5E/6
Coaxial Video Connector
BNC-M
Twisted-Pair Video Connector
Tool-less push-pin terminal block
Compatible Format
HD-TVI/TVI/AHD/CVBS
Resolution
720P/960P/1080P/3MP/4MP/5MP/8MP
Anti-Interference
>60dB
ESD
Contact discharge electricity level3, air discharge electricity level3, per IEC61000-4-2
Coaxial Cable Connector
2KV (common-code), per IEC61000-4-5
UTP Cable Connector
2KV (different-code), 2KV (common-code), per IEC61000-4-5
Impedance (BNC Male)
75 ohms
Impedance (UTP Cable)
100 ohms
Shell
ABS engineering plastic
Weight
39 g
MTBF
>10000 h
Operating Temperature
-20º ~55º C
Storage Temperature
-40º ~ 150º C
Humidity
0~95% (non-condensing)
Colour
Black
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-1H18-A |
| Manufacturer Part Number (MPN) | DS-1H18-A |
| Transmission Signal | 1 channel |
| Transmission Distance | Max 350m |
| Category Type | UTP CAT 5E/6 |
| Coaxial Video Connector | BNC-M |
| Twisted-Pair Video Connector | Tool-less push-pin terminal block |
| Compatible Format | HD-TVI/TVI/AHD/CVBS |
| Resolution | 720P/960P/1080P/3MP/4MP/5MP/8MP |
| Anti-Interference | >60dB |
| ESD | Contact discharge electricity level3, air discharge electricity level3, per IEC61000-4-2 |
| Coaxial Cable Connector | 2KV (common-code), per IEC61000-4-5 |
| UTP Cable Connector | 2KV (different-code), 2KV (common-code), per IEC61000-4-5 |
| Impedance (BNC Male) | 75 ohms |
| Impedance (UTP Cable) | 100 ohms |
| Shell | ABS engineering plastic |
| Weight | 39 g |
| MTBF | >10000 h |
| Operating Temperature | -20º ~55º C |
| Storage Temperature | -40º ~ 150º C |
| Humidity | 0~95% (non-condensing) |
| Colour | Black |
