Hikvision DS-C30S-DEC Video Wall Decoding Board, 32 Decoding Channels, Up to 16 MP

Visit Hikvision
Free Delivery
Save £368.87

About this product

The Hikvision DS-C30S-DEC is a decoding board for a Hikvision video wall controller, the core control device of a screen splicing control system. It decodes H.264, H.265, Smart264, Smart265 and MJPEG video, up to a maximum of 16 channels of 1080p@30 fps, 32 channels of 720p@30 fps, 4 channels of 8 MP or 1 channel of 16 MP.

Key features

  • 32 video decoding channels
  • Outputs a maximum of 16 channels of 1080p@30 fps data
  • Decodes a maximum of 16 MP
  • Video decoding formats: H.264, H.265, Smart264, Smart265, MJPEG
  • Audio decoding formats: G711-A, G711-U, G722.1, G726-16/U, MPEG, AAC-LC
  • A maximum of 8 decoding boards per chassis

Frequently asked questions

How many channels can the Hikvision DS-C30S-DEC decode?

It has 32 video decoding channels, and supports decoding a maximum of 16 channels of 1080p@30 fps, 32 channels of 720p@30 fps, 4 channels of 8 MP, or 1 channel of 16 MP.

How many DS-C30S-DEC boards can go in one chassis?

A maximum of 8 boards per chassis.

Which video formats does the DS-C30S-DEC decode?

H.264, H.265, Smart264, Smart265 and MJPEG.

Which casings is the DS-C30S-DEC used with?

The optional accessories named for it include the DS-C30S-S11 and DS-C30S-S23 video wall controller casings.

Save £368.87
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand
Hikvision
Model
DS-C30S-DEC
Manufacturer Part Number (MPN)
DS-C30S-DEC
Occupied slot
Input slot
Max board quantity per chassis
8
Video decoding format
H.264, H.265, Smart264, Smart265, MJPEG
Video decoding channels
32
Video decoding capability
Supports decoding a maximum of 16 channels of 1080p@30 fps, 32 channels of 720p@30 fps, 4 channels of 8 MP, or 1 channel of 16 MP. Smart H.265/Smart H.264/H.264/H.265: 16 channels of 1080p@30 fps; MJPEG: 2 channels of 1080p@30 fps
Video decoding resolution
≤ 16 MP
Audio decoding format
G711-A, G711-U, G722.1, G726-16/U, MPEG, AAC-LC
Optional accessories
DS-C30S-S11 Video Wall Controller Casing, DS-C30S-S23 Video Wall Controller Casing, DS-C30S-02DPI/4K DP Input Board
Specifications

Specifications

Brand Hikvision
Model DS-C30S-DEC
Manufacturer Part Number (MPN) DS-C30S-DEC
Occupied slot Input slot
Max board quantity per chassis 8
Video decoding format H.264, H.265, Smart264, Smart265, MJPEG
Video decoding channels 32
Video decoding capability Supports decoding a maximum of 16 channels of 1080p@30 fps, 32 channels of 720p@30 fps, 4 channels of 8 MP, or 1 channel of 16 MP. Smart H.265/Smart H.264/H.264/H.265: 16 channels of 1080p@30 fps; MJPEG: 2 channels of 1080p@30 fps
Video decoding resolution ≤ 16 MP
Audio decoding format G711-A, G711-U, G722.1, G726-16/U, MPEG, AAC-LC
Optional accessories DS-C30S-S11 Video Wall Controller Casing, DS-C30S-S23 Video Wall Controller Casing, DS-C30S-02DPI/4K DP Input Board

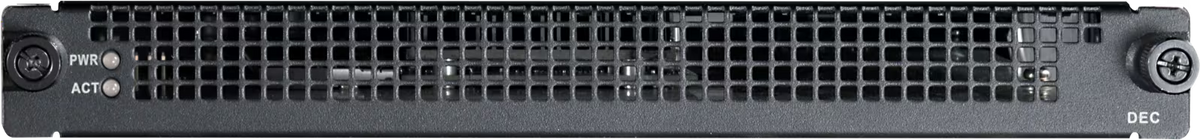

Hikvision DS-C30S-DEC Video Wall Decoding Board

Hikvision DS-C30S-DEC Video Wall Decoding Board, 32 Decoding Channels, Up to 16 MP

What it does

Hikvision's video wall controller is an FPGA-based pure hardware image processing device built from a main control board and service boards. The DS-C30S-DEC is its decoding board.

It supports decoding a maximum of 16 channels of 1080p@30 fps, 32 channels of 720p@30 fps, 4 channels of 8 MP, or 1 channel of 16 MP. In MJPEG the figure is 2 channels of 1080p@30 fps.

Installation notes

The board occupies an input slot, and a chassis takes a maximum of 8 boards. Optional accessories are the DS-C30S-S11 and DS-C30S-S23 video wall controller casings and the DS-C30S-02DPI/4K DP input board.

Hikvision DS-C30S-DEC Video Wall Decoding Board
Hikvision

Hikvision DS-C30S-DEC Video Wall Decoding Board, 32 Decoding Channels, Up to 16 MP

£1,844.37 £2,213.24

The Hikvision DS-C30S-DEC is a decoding board for a Hikvision video wall controller, the core control device of a screen splicing control system. It decodes H.264, H.265, Smart264, Smart265 and MJPEG video, up to a maximum of 16 channels of 1080p@30 fps, 32 channels of 720p@30 fps, 4 channels of 8 MP or 1 channel of 16 MP.

Key features

Frequently asked questions

How many channels can the Hikvision DS-C30S-DEC decode?

It has 32 video decoding channels, and supports decoding a maximum of 16 channels of 1080p@30 fps, 32 channels of 720p@30 fps, 4 channels of 8 MP, or 1 channel of 16 MP.

How many DS-C30S-DEC boards can go in one chassis?

A maximum of 8 boards per chassis.

Which video formats does the DS-C30S-DEC decode?

H.264, H.265, Smart264, Smart265 and MJPEG.

Which casings is the DS-C30S-DEC used with?

The optional accessories named for it include the DS-C30S-S11 and DS-C30S-S23 video wall controller casings.
