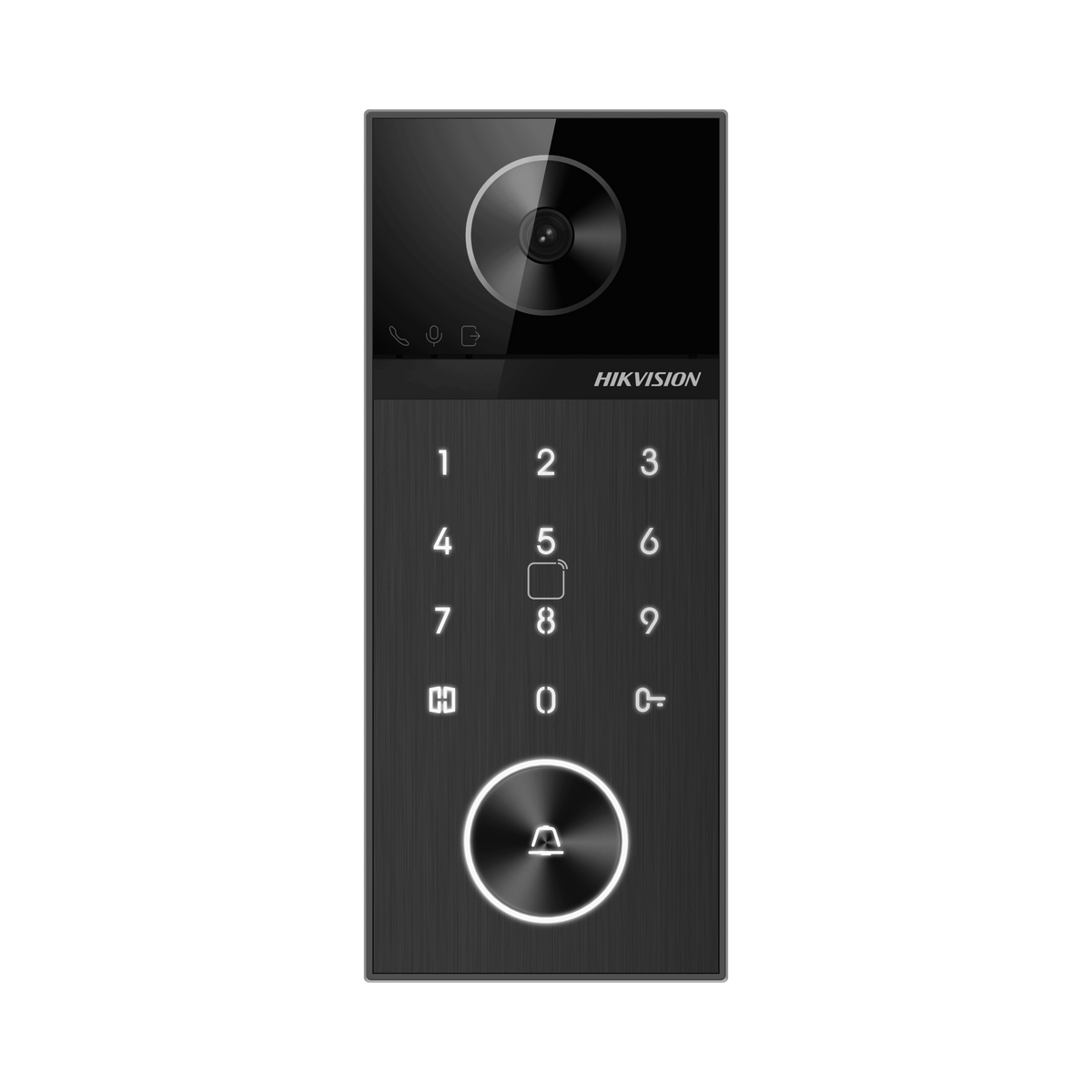

Hikvision DS-KV6124-WBE1 Villa Door Station, 4MP, 150° Viewing Angle

What it does

The DS-KV6124-WBE1 is a villa door station with a 4MP camera (main stream up to 4MP 2688x1520P), a 150° horizontal and 75° vertical field of view, 120 dB WDR and IR light up to 3 m. A built-in omnidirectional microphone and built-in loudspeaker provide audio with noise suppression and echo cancellation.

It controls 2 locks through 2 relays (Max. 30 VDC 2 A), and the door can be opened by card, PIN code, Bluetooth, Hik-Connect or an indoor station. M1 cards are read at 13.56 MHz from 2 to 2.5 cm.

Where it is used

Its application environment is outdoor, with an IP65 protective level, a working temperature of -40 °C to 60 °C and working humidity of 10% to 90% (no-condensing).

Installation notes

The door station is surface mounted and measures 164 mm × 69 mm × 24.7 mm. Power is 12 VDC, 1.2 A or standard IEEE 802.3at PoE, with power consumption under 10 W, and it connects through 1 RJ-45, 10/100 Mbps self-adaptive network interface.

It has 4 alarm inputs (including exit button and door contact input), 1 RS-485 interface and a power supply output of Max. 12 VDC, 1 A. Hikvision lists the DS-KABV24-A wall-mounted bracket, DS-KABV6114-G surface gang box and DS-KABV6114-RS rain shielder as accessories for it.

Day to day

A TF card of up to 128 G can be fitted.
