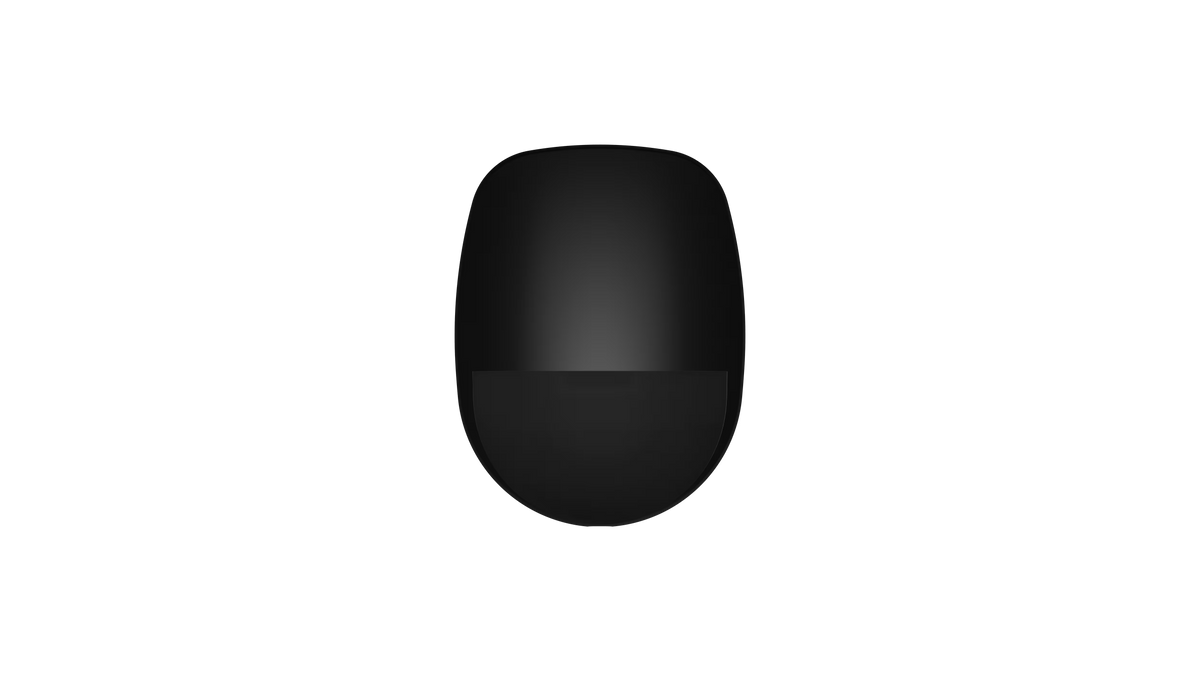

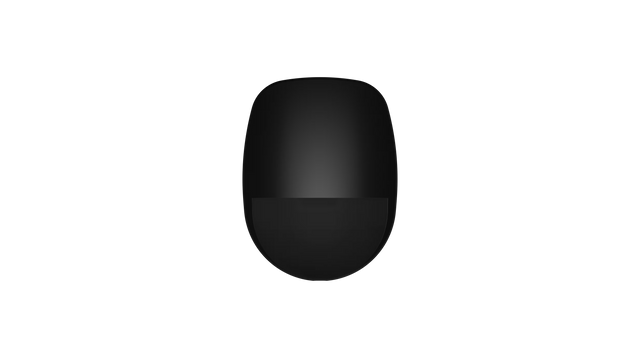

Hikvision DS-PDP15P-EG2-WE(B)/BLACK Wireless Internal PIR Detector, 15m Detection Range, 30kg Pet Immunity
About this product
The Hikvision DS-PDP15P-EG2-WE(B)/BLACK is a black wireless internal PIR detector for indoor wireless intrusion alarm systems, with a 15m detection range and up to 30 kg pet immunity. It uses Tri-X Wireless two-way RF transmission at 868MHz with AES-128 encryption and runs on a CR123A battery for up to 5 years (standby time).
Key features
- Passive infrared detection, 15m range, 84 detection zones
- Up to 30 kg pet immunity
- SEC (Smart Environmental Control): advanced digital signal processing and 3D optics
- Tri-X Wireless two-way RF at 868MHz with AES-128 encryption
- Transmission range (free space) 1.6 km
- Frequency hopping against jamming
- CR123A × 1 battery, up to 5 years (standby time)
- Front and rear tamper protection
Frequently asked questions
What is the detection range of the DS-PDP15P-EG2-WE(B)/BLACK?
15m, with 84 detection zones.
Is it pet immune?
Yes: up to 30 kg pet immunity.
What battery does it use and how long does it last?
CR123A × 1; standard battery life is up to 5 years (standby time).
What is its wireless range?
1.6 km in free space, using Tri-X Wireless two-way RF at 868MHz.
How high should it be mounted?
At a mounting height of 1.8 m to 2.4 m on a wall; a wall & ceiling bracket is an optional accessory.
Can it be configured remotely?
Yes: it is fully remote configurable through the app.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-PDP15P-EG2-WE(B)/BLACK |
| Manufacturer Part Number (MPN) | DS-PDP15P-EG2-WE(B)/BLACK |
| Detection Method | Passive Infrared |
| Detection Range | 15m |
| Detection Zones | 84 |
| Detectable Speed | 0.3～2m/s |
| Sensitivity | High;Auto;Pet |
| Pet Immunity | 30 kg |
| White Light Filter | 6500lux |
| Digital Temperature Compensation | Support |
| Creep Zone Protection | Support |
| Sealed Optics | Support |
| Tamper Protection | Front;Rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
| LED Indicator | Blue (Alarm) |
| Transmission Technology | Tri-X Wireless |
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 868MHz |
| Transmission Security | AES-128 Encryption |
| Transmission Range (Free Space) | 1.6 km |
| Enrolling Method | Power up;Remote ID;QR Code |
| Standard Battery Life | Up to 5 years (standby time) |
| Battery Type | CR123A × 1 |
| Typical Voltage | 3V |
| Operation Temperature | -10°C to 55°C (14 °F to 131 °F) |
| Operation Humidity | 10% to 90% |
| Dimension (W x H x D) | 65.5 mm × 103 mm × 48.5 mm |
| Weight | 128 g |
| Mounting Height | 1.8 m to 2.4 m |
| Mounting Method | Wall |
| Application Scenario | Indoor |
| Bracket | Optional Wall & Ceiling Accessory |
| Colour | Black |
Hikvision DS-PDP15P-EG2-WE(B)/BLACK Wireless Internal PIR Detector, 15m Detection Range, 30kg Pet Immunity
