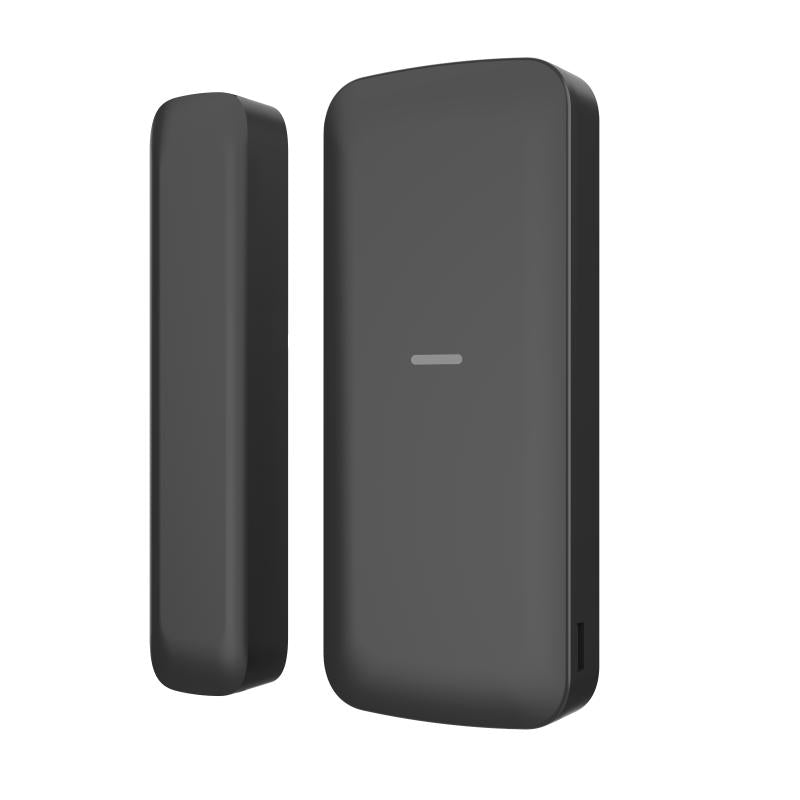

Hikvision DS-PDMCS-EG2-WE(B)/BLACK Wireless Magnet Shock Detector, 868MHz, Black
About this product
The Hikvision DS-PDMCS-EG2-WE(B)/Black is a wireless magnet shock detector with a black cover and a slim design for an unobtrusive installation. It detects by opening contact and reports over Tri-X Wireless two-way RF at 868MHz with AES-128 encryption, and it is fully remote configurable through an app.
Key features
- Detection method: opening contact, with a detection gap of 43 mm max
- Tri-X Wireless, two-way RF wireless at 868MHz
- Transmission range of 1.6 km in free space
- AES-128 encrypted transmission with frequency hopping against jamming
- Standard battery life up to 5 years (standby time)
- Front and rear tamper protection
- Alarm input: Normally Closed; Normally Open; Impulse Count
- Battery powered: CR2450 x 1
Frequently asked questions
What battery does the DS-PDMCS-EG2-WE(B) use and how long does it last?
It is battery powered by one CR2450 battery. The standard battery life is up to 5 years (standby time).
What is the wireless range of the DS-PDMCS-EG2-WE(B)?
The transmission range is 1.6 km in free space, using two-way RF wireless at 868MHz.
What is the detection gap of the DS-PDMCS-EG2-WE(B)?
The detection gap is 43 mm max.
How is the detector enrolled?
Enrolling methods are power up, Remote ID and QR Code.
Can the DS-PDMCS-EG2-WE(B) be used outdoors?
The application scenario is indoor, with an operation temperature of -10°C to 55°C.
Is the wireless signal encrypted?
Yes. Transmission security is AES-128 encryption, with frequency hopping against jamming.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-PDMCS-EG2-WE(B)/BLACK |
| Manufacturer Part Number (MPN) | DS-PDMCS-EG2-WE(B)/BLACK |
| Detection Method | Opening Contact |
| Detection Gap | 43 mm Max |
| Digital Processing | Support |
| Tamper Protection | Front;Rear |
| Alarm Input | Normally Closed;Normally Open;Impulse Count |
| LED Indicator | Blue (alarm) |
| Transmission Technology | Tri-X Wireless |
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 868MHz |
| Transmission Security | AES-128 Encryption |
| Transmission Range (Free Space) | 1.6 km |
| Enrolling Method | Power up;Remote ID;QR Code |
| Standard Battery Life | Up to 5 years (standby time) |
| Battery Type | CR2450 x 1 |
| Typical Voltage | 3V |
| Operation Temperature | -10°C to 55°C (14°F to 131°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operation Humidity | 10% to 90% |
| Dimension (WxHxD) | 24mm × 104mm × 24.4mm; 13 mm × 34.4 mm × 11.4 mm |
| Weight | 59 g |
| Application Scenario | Indoor |
| Colour | Black |
