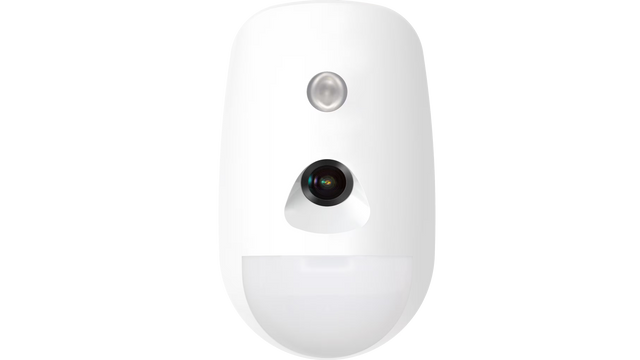

Hikvision DS-PDPC12P-EG2-WE Wireless PIR-Camera Detector, 12m Detection, 868MHz
About this product
The Hikvision DS-PDPC12P-EG2-WE is a fully supervised two-way wireless PIR-camera detector with a built-in camera, for video verification via motion pictures sent to an ARC or to personal phones via apps. It detects to 12m over a coverage angle of 85.9° and communicates on 868MHz using CAM-X Wireless Technology.
Key features
- PIR detection range 12m, coverage angle 85.9°
- Built-in CMOS camera with lens coverage of 88° (H), 68° (V)
- 1 IR LED with an IR range of 12m
- Pet immunity up to 30Kg
- CAM-X Wireless Technology on 868MHz, two-way, AES-128 encryption
- RF range 800m (open space)
- CR123A x 3 batteries included, standard battery life 6 years
- Fully remote configurable through app
Frequently asked questions
What does the camera in the Hikvision DS-PDPC12P-EG2-WE do?
It provides video verification via motion pictures sent to an ARC or to personal phones via apps, with JPEG images at 160x120, 320x240 or 640x480.
What is the detection range of the DS-PDPC12P-EG2-WE?
The PIR detection range is 12m with a coverage angle of 85.9°.
Is the DS-PDPC12P-EG2-WE pet immune?
Yes, pet immunity is up to 30Kg.
What batteries does it use and how long do they last?
It uses CR123A x 3 batteries, which are included, with a standard battery life of 6 years.
What is the wireless range?
RF range is 800m (open space), on 868MHz with two-way CAM-X Wireless Technology.
How high should it be mounted?
Installation height is 1.8 to 2.4m.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-PDPC12P-EG2-WE |
| Manufacturer Part Number (MPN) | DS-PDPC12P-EG2-WE |
| PIR detection range | 12m |
| Coverage angle | 85.9° |
| Detection speed | 0.3 to 2 m/s |
| Creep zone protection | Supported |
| Auto sensitivity | Supported |
| Pet immunity | Up to 30Kg |
| Digital temperature compensation | Supported |
| Technology | Digital microprocessor based |
| Sealed optics | Supported |
| Direct light filter | 6500lux |
| Tamper protection | Front and back |
| LED indicator | Alarm (blue) |
| Encapsulated PCB | Supported |
| Lens coverage | 88° (H), 68° (V) |
| Sensor type | CMOS |
| Auto day and night | Color/Black & White |
| IR LED | 1 IR LED |
| IR range | 12m |
| Image type | JPEG |
| Image size | 160x120, 320x240, 640x480 |
| Wireless technology | CAM-X Wireless Technology |
| Two-way wireless communication | Supported |
| Transmission frequency | 868MHz |
| RF range | 800m (open space) |
| Transmission encryption | AES-128 encryption |
| Enrolling methods | Power up, remote ID and QR code |
| Signal strength indicators | Supported |
| Environment temperature indicator | Supported |
| Battery | CR123A x 3 (included) |
| Standard battery life | 6 years |
| Dimension (W × H × D) | 72.2mm × 120.5mm × 56.7mm |
| Weight | 210g |
| Storage temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operating temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Operating humidity | 10% to 90% |
| Installation height | 1.8 to 2.4m |
| Bracket | Optional wall and ceiling accessory |
