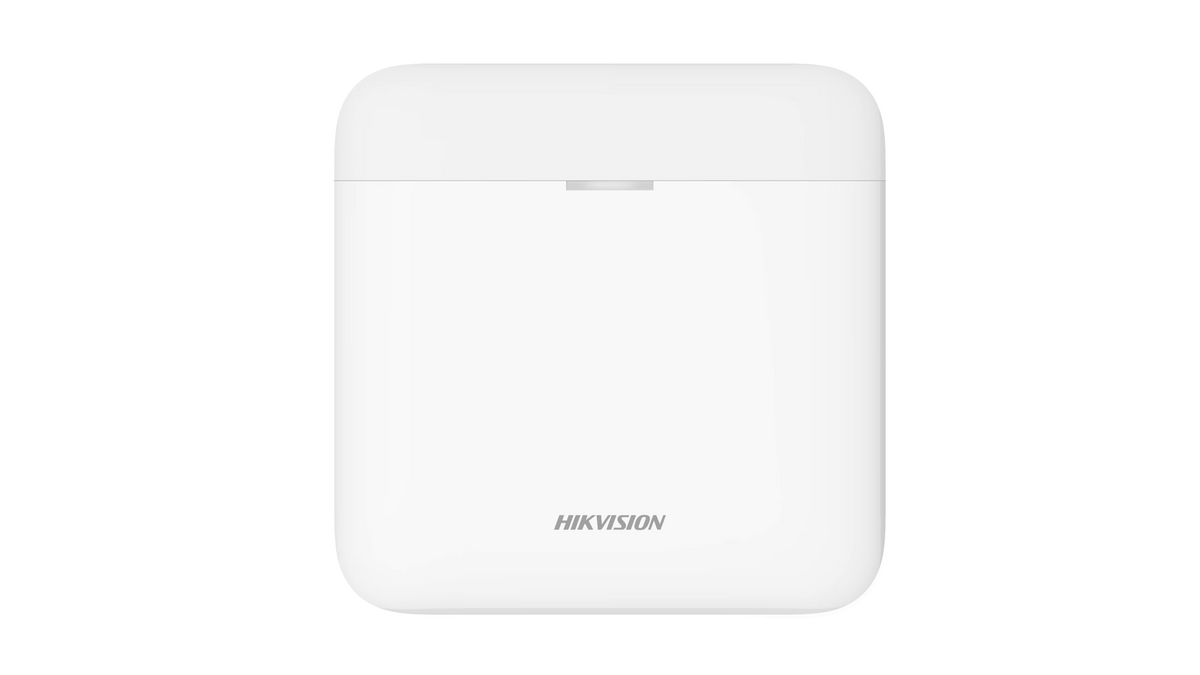

Hikvision DS-PR1-WE(B) Wireless Repeater Plus, 868 MHz, 2000 m (Open Area)
About this product
The Hikvision DS-PR1-WE(B) Wireless Repeater Plus is used for extending RF distance in an alarm system, using 868 MHz two-way communication with an RF distance of 2000 m (open area). It finds and connects up to 8 PIRCAM or smoke detectors automatically and gives up to 24 hrs battery backup after mains is lost.
Key features
- 868MHz two-way wireless communication
- RF distance: 2000 m (open area)
- AES-128 wireless security
- Up to 24 hrs battery backup after mains lost
- Finds and connects up to 8 PIRCAM or smoke detectors automatically, with smart auto-pairing
- LED display showing the different feedbacks
- Tamper protection: 1, front and back
- Wall mounting
Frequently asked questions
What is the range of the Hikvision DS-PR1-WE(B)?
Its RF distance is 2000 m (open area).
How many detectors can the DS-PR1-WE(B) connect automatically?
It finds and connects up to 8 PIRCAM or smoke detectors automatically, with smart auto-pairing.
Does the DS-PR1-WE(B) have battery backup?
Yes. It has a built-in Li battery with a life span of up to 24 hours at normal temperature; the battery working time can be significantly reduced at low temperatures.
How is the DS-PR1-WE(B) powered?
From a 100 VAC to 240 VAC power supply, with the built-in Li battery as backup.
What frequency does the DS-PR1-WE(B) use?
868 MHz, with two-way communication and AES-128 wireless security.
How is the DS-PR1-WE(B) installed?
By wall mounting.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-PR1-WE(B) |
| Manufacturer Part Number (MPN) | DS-PR1-WE(B) |
| Auto pairing | Supported |
| Serial port | 2, for debug |
| Tamper-proof | 1, front and back |
| Power switch | 1 |
| Battery type | Built in Battery Li |
| Power supply | 100 VAC to 240 VAC |
| Operation humidity | 10％ to 90％ |
| Operation temperature | ﹣10°C to +55°C (please make sure the adapter is connected) |
| Battery life span | Up to 24 hours at normal temperature (The battery working time can be significantly reduced at low temperatures) |
| RF frequency | 868 MHz |
| RF method | Two-way communication |
| RF modulation | 2GFSK |
| RF distance | 2000 m (open area) |
| Wireless security | AES-128 |
| Installation method | Wall mounting |
| Dimension (WxHxD) | 170.0 × 170.0 × 38.6 mm |
| Shell material | Plastic |
| Weight | 526.5 g |
| Colour | White |
