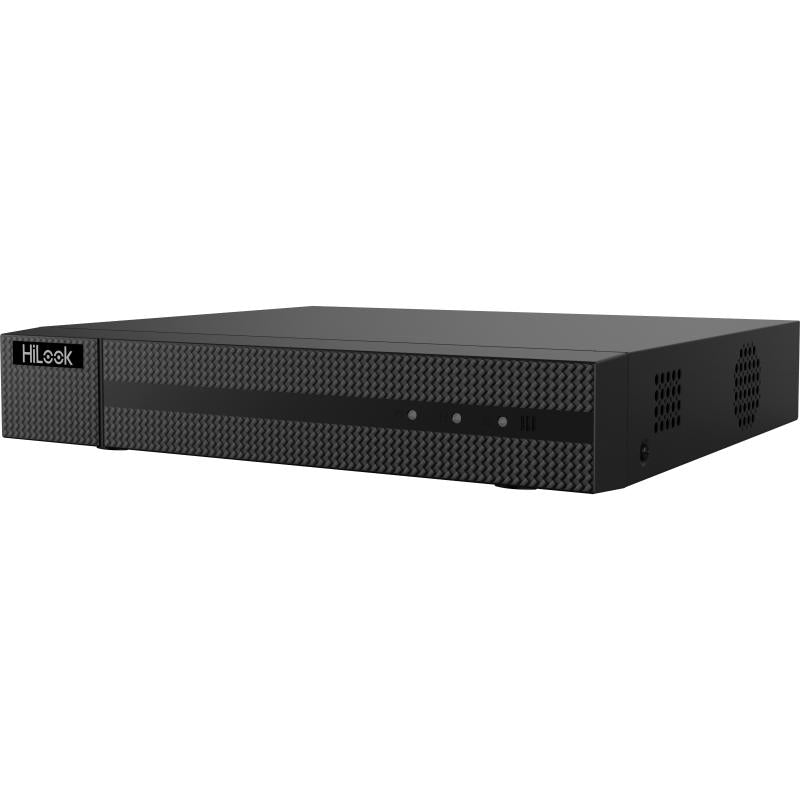

HiLook DVR-216Q-M1/T 16-ch 1080p 1U H.265 DVR, Motion Detection 2.0, 1 SATA up to 10 TB
Free Delivery
£
172
65
(Incl. VAT)
About this product
The HiLook DVR-216Q-M1/T is a 16-ch 1080p 1U H.265 DVR for CCTV systems using HDTVI, AHD, CVI, CVBS and IP cameras, with encoding up to 1080p @ 15 fps. Deep learning-based motion detection 2.0 runs on all analog channels to classify human and vehicle, and up to 24 network cameras can be connected.
Key features
- 16-ch analog video input over BNC, supporting coaxitron connection
- 5 signals input adaptively: HDTVI, AHD, CVI, CVBS and IP
- Encoding up to 1080p @ 15 fps
- Up to 24 network cameras can be connected (enhanced IP mode)
- Motion detection 2.0 classifies human and vehicle to reduce false alarms from leaves and lights
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
- 1 SATA interface, up to 10 TB capacity for each disk
- HDMI output up to 4K (3840 × 2160)/30Hz plus VGA output
Frequently asked questions
How many cameras can the HiLook DVR-216Q-M1/T record?
It has 16-ch analog video input. IP video input is 2-ch (up to 18-ch), or 8-ch (up to 24-ch) with enhanced IP mode on, and up to 24 network cameras can be connected.
Which camera types does it work with?
It takes 5 signals input adaptively: HDTVI, AHD, CVI, CVBS and IP. IP cameras using H.265+/H.265/H.264+/H.264 are supported, at up to 6 MP resolution.
What hard drive capacity does it support?
It has 1 SATA interface with up to 10 TB capacity for each disk.
Does it reduce false alarms?
Yes. Deep learning-based motion detection 2.0 is enabled by default for all analog channels; it classifies human and vehicle and reduces false alarms caused by objects like leaves and lights.
What power supply does it need?
The power supply is 12 VDC, 2 A, and consumption is ≤ 24 W (without HDD).
What monitor outputs does it have?
It has 1-ch HDMI output up to 4K (3840 × 2160)/30Hz and 1-ch VGA output up to 1920 × 1080/60Hz.
£
172
65
Price
Technical Details
Specifications
Brand
HiLook
Model
DVR-216Q-M1/T
Manufacturer Part Number (MPN)
DVR-216Q-M1/T
Analog Video Input
16-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
IP Video Input
2-ch (up to 18-ch); Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps; up to 6 MP resolution
IP camera support
H.265+/H.265/H.264+/H.264 IP cameras
HDTVI Input
3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 2K(2304 x 1296)@20 fps, 1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
AHD Input
5 MP(2560 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
HDCVI Input
3K(2880 × 1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
CVBS Input
PAL/NTSC
HDMI Output
1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Audio Input
1-ch(up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback
16-ch
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Video Bitrate
32 Kbps to 6 Mbps
Dual-Stream
Support
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Remote Connection
128
Total Bandwidth
128 Mbps
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface
1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
SATA
1 SATA interface
Capacity
Up to 10 TB capacity for each disk
USB Interface
2 × USB 2.0
Power Supply
12 VDC, 2 A
Consumption
≤ 24 W (without HDD)
Working Temperature
-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
263 × 225 × 48 mm (10.3 × 8.8 × 1.9 inch)
Specifications
| Brand | HiLook |
|---|---|
| Model | DVR-216Q-M1/T |
| Manufacturer Part Number (MPN) | DVR-216Q-M1/T |
| Analog Video Input | 16-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| IP Video Input | 2-ch (up to 18-ch); Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps; up to 6 MP resolution |
| IP camera support | H.265+/H.265/H.264+/H.264 IP cameras |
| HDTVI Input | 3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 2K(2304 x 1296)@20 fps, 1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps |
| AHD Input | 5 MP(2560 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps |
| HDCVI Input | 3K(2880 × 1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps |
| CVBS Input | PAL/NTSC |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Audio Input | 1-ch(up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Synchronous Playback | 16-ch |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Video Bitrate | 32 Kbps to 6 Mbps |
| Dual-Stream | Support |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Remote Connection | 128 |
| Total Bandwidth | 128 Mbps |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Network Interface | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| SATA | 1 SATA interface |
| Capacity | Up to 10 TB capacity for each disk |
| USB Interface | 2 × USB 2.0 |
| Power Supply | 12 VDC, 2 A |
| Consumption | ≤ 24 W (without HDD) |
| Working Temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 263 × 225 × 48 mm (10.3 × 8.8 × 1.9 inch) |
