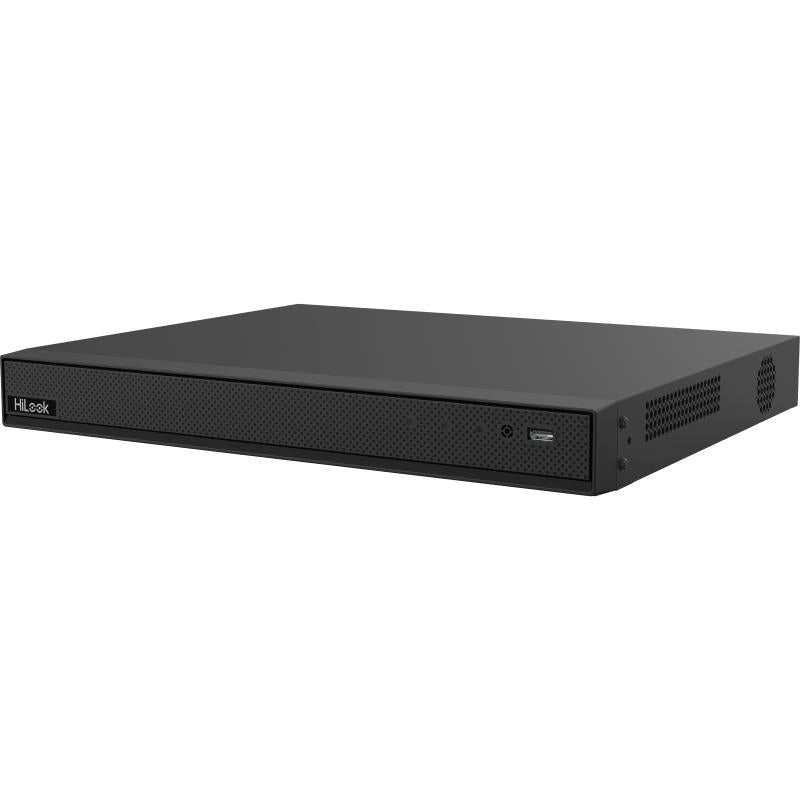

HiLook NVR-216MH-C/16P(E) 16-ch 1U 4K PoE NVR, 16 PoE Ports, 2 SATA, Up to 8TB per Disk
About this product
The HiLook NVR-216MH-C/16P(E) is a 16-ch 1U 4K PoE NVR for IP CCTV systems, with 16-ch IP video input and 16 PoE interfaces to IEEE 802.3 af/at. It has 2 SATA interfaces with up to 8TB capacity for each disk, a 1 RJ-45 10/100/1000 Mbps network interface, and HDMI/VGA simultaneous output with HDMI up to 4K (3840 × 2160)/30Hz.
Key features
- 16-ch IP video input
- 16 PoE interfaces (RJ-45 10/100 Mbps), IEEE 802.3 af/at, PoE power 150W
- 80 Mbps outgoing bandwidth
- HDMI output up to 4K (3840 × 2160)/30Hz and VGA output, HDMI/VGA simultaneous output
- Recording resolutions include 8MP, 6MP, 5MP, 4MP, 3MP and 1080p
- 2 SATA interfaces, up to 8TB capacity for each disk
- Motion Detection 2.0 human/vehicle analysis on 4-ch
- H.265+/H.265/H.264+/H.264 video formats
Frequently asked questions
How many cameras can the NVR-216MH-C/16P(E) take?
It has 16-ch IP video input and 16 PoE interfaces (RJ-45 10/100 Mbps self-adaptive Ethernet).
How much PoE power does it supply?
PoE power is 150W, to IEEE 802.3 af/at.
How much storage does it support?
It has 2 SATA interfaces, with up to 8TB capacity for each disk.
What video outputs does it have?
1-ch HDMI up to 4K (3840 × 2160)/30Hz and 1-ch VGA up to 1920 × 1080p/60Hz, with HDMI/VGA simultaneous output.
How many channels can it decode at once?
8-ch@1080p(30fps) with AI & 4K off, or 6-ch@1080p(30fps) with AI/4K on. The length or width of camera resolution (each track) cannot exceed 4096 pixels.
Does it support Hik-Connect?
Hik-Connect is among its network protocols, alongside DDNS and HTTPS, with up to 32 remote connections.
Specifications
Specifications
| Brand | HiLook |
|---|---|
| Model | NVR-216MH-C/16P(E) |
| Manufacturer Part Number (MPN) | NVR-216MH-C/16P(E) |
| IP Video Input | 16-ch |
| Outgoing Bandwidth | 80 Mbps |
| Human/Vehicle Analysis (Motion Detection 2.0) | 4-ch |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output | 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Decoding Format | H.265+, H.265, H.264+, H.264, MPEG4 |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Decoding Capability | AI&4K Off: 8-ch@1080p(30fps); AI/4K On: 6-ch@1080p(30fps). *: The length or width of camera resolution (each track) cannot exceed 4096 pixels |
| Synchronous Playback | 16-ch |
| Remote Connection | 32 |
| Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Network Interface | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| PoE Power | 150W |
| PoE Standard | IEEE 802.3 af/at |
| SATA | 2 |
| Capacity | Up to 8TB capacity for each disk |
| USB Interface | 2 × USB 2.0 |
| Power Supply | AC100V~240V, 190W |
| Consumption | ≤ 10 W (without enabling PoE) |
| Working Temperature | -10 to +55° C (14 to 131° F) |
| Working Humidity | 10 to 90 % |
| Chassis | 1U |
| Dimension (W × D × H) | 384 × 315 × 52 mm (15.12" × 12.38" × 2.03") |
| Weight | ≤ 3.7 kg (8.1 lb) |
