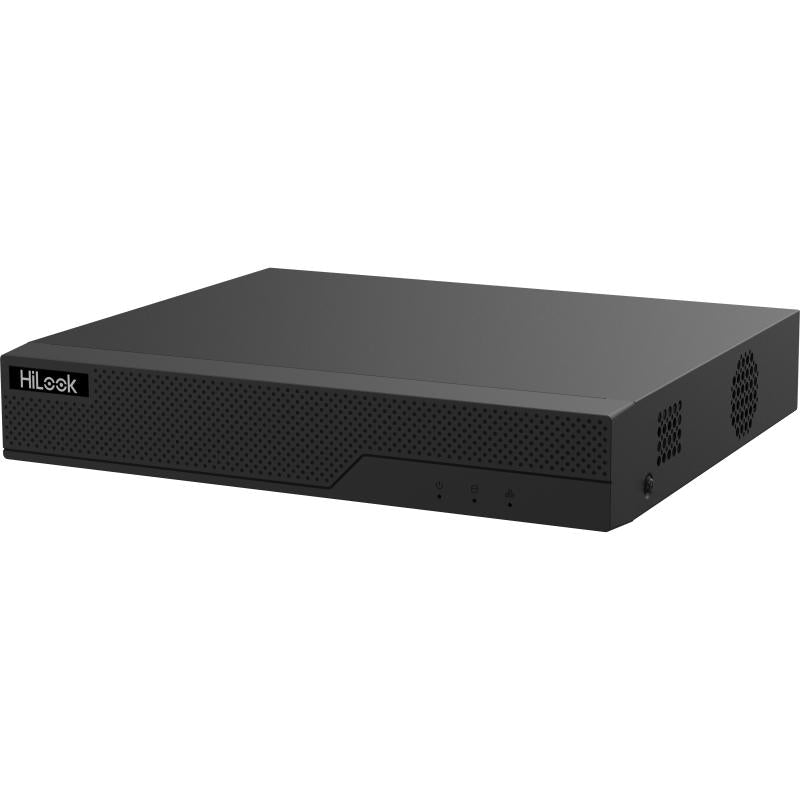

HiLook NVR-104MH-C/4P(E)/2TB 1U 4K PoE NVR, 4 PoE Ports, 2TB Storage
About this product
The HiLook NVR-104MH-C/4P(E)/2TB is a 4-ch 1U 4K PoE network video recorder (NVR) for IP CCTV systems, with up to 4-ch IP camera inputs and 4 PoE ports. It comes with 2TB of storage fitted and records H.265+/H.265/H.264+/H.264 video at up to 40 Mbps incoming bandwidth.
Key features
- 2TB of storage fitted
- Up to 4-ch IP camera inputs
- 4 PoE ports to IEEE 802.3 af/at, PoE power ≤ 50 W
- H.265+/H.265/H.264+/H.264 video formats with up to 40 Mbps incoming bandwidth
- Recording resolutions including 8MP, 6MP, 5MP, 4MP, 3MP and 1080p
- HDMI output up to 4K (4096x2160)/30Hz and VGA output up to 1080P (1920×1080)/60Hz, simultaneous
- 1 SATA interface, up to 8TB capacity for each disk
- Motion Detection 2.0 human/vehicle analysis: 1-ch
Frequently asked questions
How many cameras can the NVR-104MH-C/4P(E)/2TB record?
It takes up to 4-ch IP camera inputs and has 4 PoE ports to IEEE 802.3 af/at.
How much storage does it come with?
This version comes with 2TB of storage fitted. The recorder has 1 SATA interface, with up to 8TB capacity for each disk.
What camera resolutions can it record?
Recording resolutions include 8MP, 6MP, 5MP, 4MP, 3MP and 1080p, with up to 40 Mbps incoming bandwidth. The length or width of camera resolution (each track) cannot exceed 4096 pixels.
What power does it need?
Power supply is 48 VDC or ≤ 65W. Consumption is ≤ 10 W without enabling PoE, and PoE power is ≤ 50 W.
Which video outputs does it have?
It has a 1-ch HDMI output at up to 4K (4096x2160)/30Hz and a 1-ch VGA output at up to 1080P (1920×1080)/60Hz, with HDMI/VGA simultaneous output.
Can it be accessed remotely?
Its network protocols include Hik-Connect, DDNS and HTTPS, and it supports 32 remote connections.
Specifications
Specifications
| Brand | HiLook |
|---|---|
| Model | NVR-104MH-C/4P(E)/2TB |
| Manufacturer Part Number (MPN) | NVR-104MH-C/4P(E)/2TB |
| IP Video Input | 4-ch |
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI Output | 1-ch, 4K (4096x2160)/30Hz, 4K (3840×2160)/30Hz, 2K (2560×1440)/60Hz, 1080P (1920×1080)/60Hz, UXGA (1600×1200)/60Hz, SXGA (1280×1024)/60Hz, 720P (1280×720)/60Hz |
| VGA Output | 1-ch, 1080P (1920×1080)/60Hz, UXGA (1600×1200)/60Hz, SXGA (1280×1024)/60Hz, 720P (1280×720)/60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Decoding Format | H.265+,H.265,H.264+,H.264,MPEG4 |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Camera resolution limit | The length or width of camera resolution (each track) cannot exceed 4096 pixels |
| Synchronous Playback | 4-ch |
| Motion Detection 2.0 Human/Vehicle Analysis | 1-ch |
| Remote Connection | 32 |
| Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Network Interface | 1 RJ-45 10 /100 Mbps self-adaptive Ethernet interface |
| PoE Interface | 4-ch, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| PoE Power | ≤ 50 W |
| PoE Standard | IEEE 802.3 af/at |
| SATA | 1 |
| Capacity | Up to 8TB capacity for each disk |
| USB Interface | 2 × USB 2.0 |
| Power Supply | 48 VDC or ≤ 65W |
| Consumption | ≤ 10 W (without enabling PoE) |
| Working Temperature | -10 to +55° C (14 to 131° F) |
| Working Humidity | 10 to 90 % |
| Chassis | 1U |
| Dimension (W × D × H) | 263× 223 × 48 mm (10.34" × 8.76" × 1.9") |
| Certification | CE |
| Fitted storage | 2TB |
