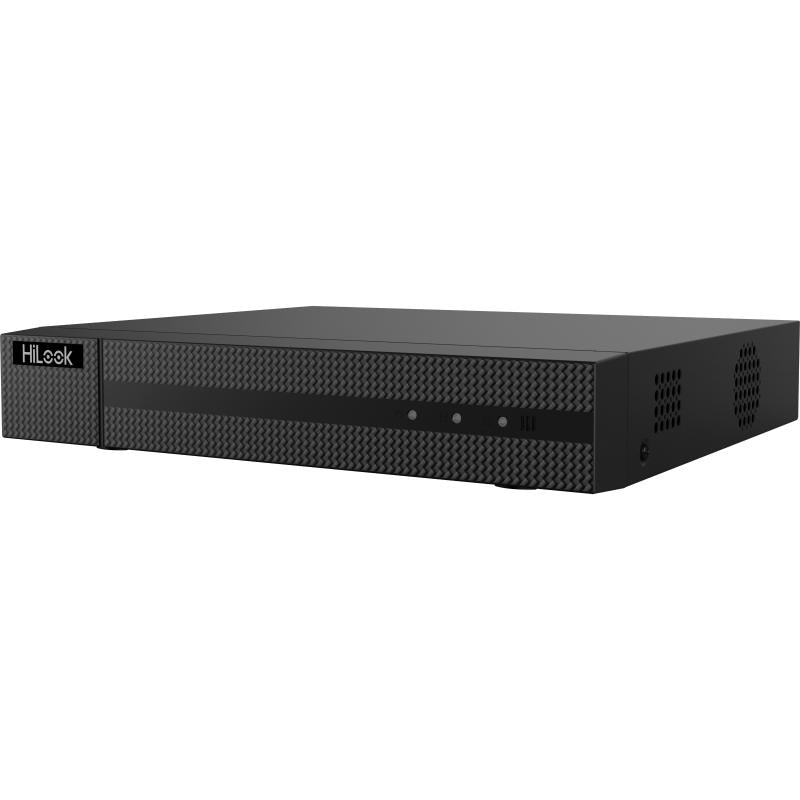

HiLook DVR-204U-M1/T 4-ch 5MP AcuSense DVR, 1U, H.265 Pro+
£
102
45
(Incl. VAT)
RRP: £122.94
About this product
The HiLook DVR-204U-M1/T is a 4-ch 5MP 1U H.265 AcuSense DVR for analog and IP CCTV systems, recording 4 analog channels plus IP cameras on 1 SATA hard drive of up to 10 TB. It accepts 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP) and uses deep learning-based motion detection 2.0 to classify human and vehicle across all analog channels.
Key features
- 4 analog channels plus 2-ch IP input (up to 6-ch), or 4-ch (up to 8-ch) with enhanced IP mode on
- 5 signals input adaptively: HDTVI/AHD/CVI/CVBS/IP
- Motion Detection 2.0 with human and vehicle classification on all analog channels
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
- Encoding up to 4K/8MP @ 8fps (1-ch); 3K/5MP @12fps
- 1 SATA interface, up to 10 TB capacity for each disk
- HDMI/VGA simultaneous output, up to 1920 × 1080/60Hz
- 1U case, 263 × 225 × 48 mm
Frequently asked questions
How many cameras can the DVR-204U-M1/T record?
It has 4-ch analog video input, plus IP video input of 2-ch (up to 6-ch), or 4-ch (up to 8-ch) each up to 4 Mbps with enhanced IP mode on.
What camera types does it accept?
It takes 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP), and supports H.265+/H.265/H.264+/H.264 IP cameras.
What hard drive does it take?
It has 1 SATA interface, supporting up to 10 TB capacity for each disk.
Does it detect people and vehicles?
Yes. Deep learning-based motion detection 2.0 is enabled by default for all analog channels and can classify human and vehicle, with quick search by object or event type.
What power supply does it need?
12 VDC, 1.5 A, with consumption of ≤ 15 W (without HDD).
Can it connect over Wi-Fi?
It is connectable to a Wi-Fi network by Wi-Fi dongle through the USB interface; it also has 1 RJ45 10M/100M self-adaptive Ethernet interface.
£
102
45
RRP: £122.94
Save £20.49
Price
Technical Details
Specifications
Brand
HiLook
Model
DVR-204U-M1/T
Manufacturer Part Number (MPN)
DVR-204U-M1/T
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle
IP Video Input
2-ch (up to 6-ch); Enhanced IP mode on: 4-ch (up to 8-ch), each up to 4 Mbps; Up to 8 MP resolution
Analog Video Input
4-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input
8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20 fps,2K(2304x1296)@20 fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30 fps
AHD Input
5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
HDCVI Input
8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30 fps
CVBS Input
PAL/NTSC
HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode
HDMI/VGA simultaneous output
Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ); 4-ch via coaxial cable
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback
4-ch
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate (main stream)
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps; 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Video Bitrate
32 Kbps to 10 Mbps
Dual-Stream
Support
Audio Compression
G.711u
Total Bandwidth
96 Mbps
Remote Connection
32
Network Protocol
TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Network Interface
1, RJ45 10M/100M self-adaptive Ethernet
Wi-Fi
Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
SATA
1 SATA interface
Capacity
Up to 10 TB capacity for each disk
Alarm In/Out
N/A
USB Interface
2 × USB 2.0
Power Supply
12 VDC, 1.5 A
Consumption
≤ 15 W (without HDD)
Working Temperature
-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
263 × 225 × 48 mm (10.3 × 8.8 × 1.9 inch)
Weight
≤ 1.16 kg (without HDD, 2.6 lb.)
Specifications
| Brand | HiLook |
|---|---|
| Model | DVR-204U-M1/T |
| Manufacturer Part Number (MPN) | DVR-204U-M1/T |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle |
| IP Video Input | 2-ch (up to 6-ch); Enhanced IP mode on: 4-ch (up to 8-ch), each up to 4 Mbps; Up to 8 MP resolution |
| Analog Video Input | 4-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI Input | 8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20 fps,2K(2304x1296)@20 fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30 fps |
| AHD Input | 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| HDCVI Input | 8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30 fps |
| CVBS Input | PAL/NTSC |
| HDMI Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ); 4-ch via coaxial cable |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Synchronous Playback | 4-ch |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate (main stream) | 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps; 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) |
| Video Bitrate | 32 Kbps to 10 Mbps |
| Dual-Stream | Support |
| Audio Compression | G.711u |
| Total Bandwidth | 96 Mbps |
| Remote Connection | 32 |
| Network Protocol | TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP |
| Network Interface | 1, RJ45 10M/100M self-adaptive Ethernet |
| Wi-Fi | Connectable to Wi-Fi network by Wi-Fi dongle through USB interface |
| SATA | 1 SATA interface |
| Capacity | Up to 10 TB capacity for each disk |
| Alarm In/Out | N/A |
| USB Interface | 2 × USB 2.0 |
| Power Supply | 12 VDC, 1.5 A |
| Consumption | ≤ 15 W (without HDD) |
| Working Temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 263 × 225 × 48 mm (10.3 × 8.8 × 1.9 inch) |
| Weight | ≤ 1.16 kg (without HDD, 2.6 lb.) |
