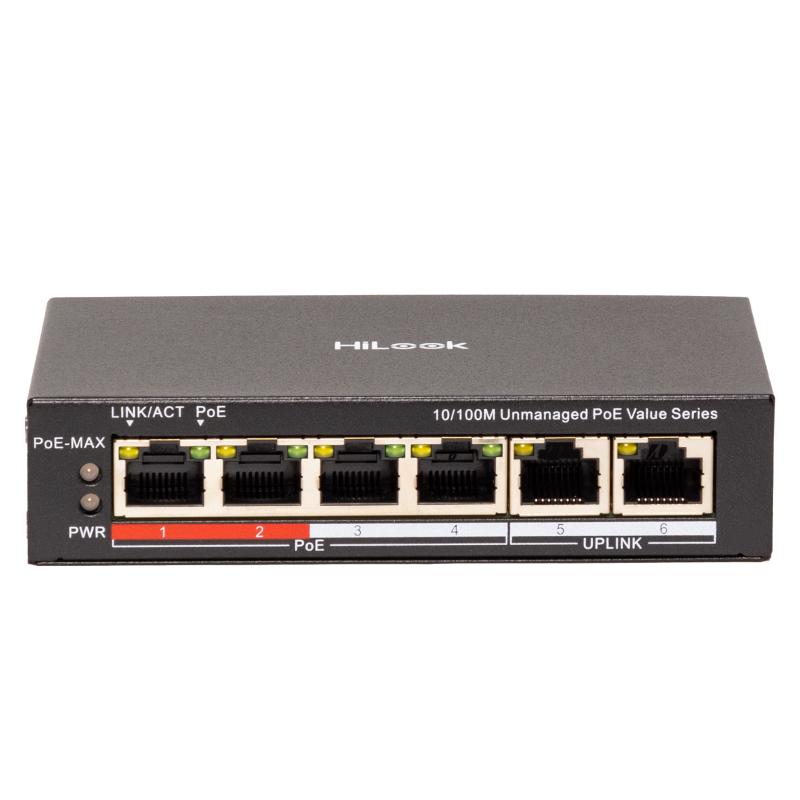

HiLook NS-0106P-45(B) 4 Port Fast Ethernet Unmanaged PoE Switch, 45W PoE Budget, Up to 250m Long Range PoE
About this product
The HiLook NS-0106P-45(B) is a 4 port Fast Ethernet unmanaged PoE switch with 4 × 10/100 Mbps PoE ports, 2 × 10/100 Mbps RJ45 ports and a 45 W PoE power budget. Its Long Range dialing function extends PoE on ports 1 to 4 up to 250 m, though long range performance may vary depending on camera model or cable condition.
Key features
- 4 × 10/100 Mbps PoE ports and 2 × 10/100 Mbps RJ45 ports
- 45 W PoE power budget
- Max. port power of 30 W
- IEEE 802.3af and IEEE 802.3at PoE standards
- Long range PoE transmission up to 250 m on ports 1 to 4
- 6 kV surge protection
- Metal shell with fan-free design
Frequently asked questions
What is the PoE power budget of the NS-0106P-45(B)?
The PoE power budget is 45 W, with a max. port power of 30 W, to IEEE 802.3af and IEEE 802.3at.
How far can it send PoE?
With the Long Range dialing function, ports 1 to 4 reach up to 250 m. Long range performance may vary depending on camera model or cable condition.
Which ports supply PoE?
Ports 1 to 4 are 10/100 Mbps PoE ports; the other 2 are 10/100 Mbps RJ45 ports.
What power does the switch need?
A 54VDC, 0.92A power supply. Max. power consumption is 50 W, and 3 W in idle.
How is it installed?
It is desk-mounted, in a metal, fan-free shell measuring 121.10 mm × 27.60 mm × 83.10 mm.
What operating conditions is it rated for?
An operating temperature of 0 °C to 40 °C and operating humidity of 5% to 95% (no condensation).
Specifications
Specifications
| Brand | HiLook |
|---|---|
| Model | NS-0106P-45(B) |
| Manufacturer Part Number (MPN) | NS-0106P-45(B) |
| Ports | 4 × 10/100 Mbps PoE port, 2 × 10/100 Mbps RJ45 port |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Port | PoE: Ports 1 to 4 |
| PoE Power Pin | End-span: 1/2(-), 3/6(+) |
| Max. Port Power | 30 W |
| PoE Power Budget | 45 W |
| Long Range | Ports 1 to 4: up to 250 m (long range performance may vary depending on camera model or cable condition) |
| MAC Address Table | 2 K |
| Switching Capacity | 1.2 Gbps |
| Packet Forwarding Rate | 0.89 Mpps |
| Internal Cache | 768 Mbits |
| Power Supply | 54VDC, 0.92A |
| Max. Power Consumption | 50 W |
| Power Consumption In Idle | 3 W |
| Surge Protection | 6 kV |
| Shell | Metal material, fan-free design |
| Installation Mode | Desk-Mounted |
| Dimensions (W × H × D) | 121.10 mm × 27.60 mm × 83.10 mm (4.77'' × 1.08'' × 3.27'') |
| Net Weight | 0.2 kg (0.44 lb) |
| Gross Weight | 0.5 kg (1.1 lb) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
