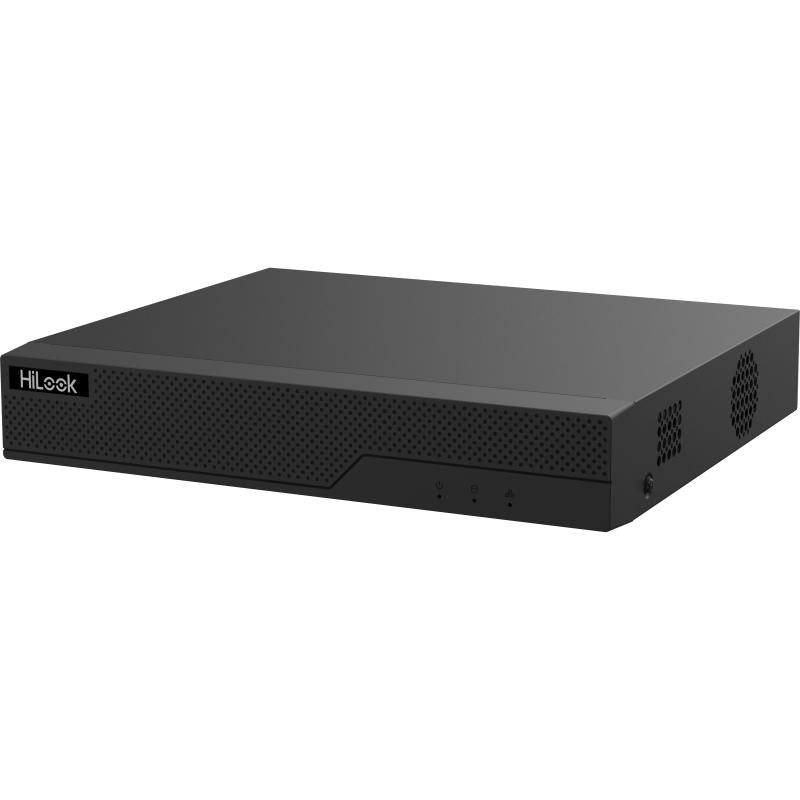

HiLook NVR-108MH-C/8P(E) 4K PoE Network Video Recorder, 8 Channels, 8 PoE Ports
About this product
The HiLook NVR-108MH-C/8P(E) is an 8-ch 1U 4K POE NVR for IP CCTV systems, with an 8-port PoE interface to IEEE 802.3 af/at for up to 8-ch IP camera inputs. It records at resolutions up to 8MP in H.265+/H.265/H.264+/H.264 video formats, takes 80 Mbps incoming bandwidth, has 1 SATA interface with up to 8TB capacity for each disk, and its HDMI output reaches 4K (4096x2160)/30Hz.
Key features
- 8-ch IP video input with 80 Mbps incoming bandwidth
- 8-port PoE interface, IEEE 802.3 af/at
- PoE power ≤ 75W
- Recording resolution up to 8MP
- H.265+/H.265/H.264+/H.264 video formats
- 1 SATA interface, up to 8TB capacity for each disk
- HDMI output up to 4K (4096x2160)/30Hz, with HDMI/VGA simultaneous output
- Motion Detection 2.0 Human/Vehicle Analysis on 4-ch
Frequently asked questions
How many hard drives does the NVR-108MH-C/8P(E) take, and how large can the drive be?
It has 1 SATA interface, with up to 8TB capacity for each disk.
Does the NVR-108MH-C/8P(E) have PoE ports for cameras?
Yes. It has an 8-port PoE interface (RJ-45 10/100 Mbps self-adaptive Ethernet interface) to IEEE 802.3 af/at, with PoE power of ≤ 75W.
How many cameras can the NVR-108MH-C/8P(E) record, and at what resolution?
Up to 8-ch IP camera inputs, with 80 Mbps incoming bandwidth and recording resolutions up to 8MP.
What monitor outputs does it have?
A 1-ch HDMI output up to 4K (4096x2160)/30Hz and a 1-ch VGA output up to 1080P (1920×1080)/60Hz, with HDMI/VGA simultaneous output.
What power does it need?
The power supply is 48 VDC or ≤ 90W, with consumption of ≤ 10 W without enabling PoE.
Can it be viewed remotely?
Hik-Connect is among its supported network protocols, and it allows up to 32 remote connections.
Specifications
Specifications
| Brand | HiLook |
|---|---|
| Model | NVR-108MH-C/8P(E) |
| Manufacturer Part Number (MPN) | NVR-108MH-C/8P(E) |
| Motion Detection 2.0 (Human/Vehicle Analysis) | 4-ch |
| IP Video Input | 8-ch |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI Output | 1-ch, 4K (4096x2160)/30Hz, 4K (3840×2160)/30Hz, 2K (2560×1440)/60Hz, 1080P (1920×1080)/60Hz, UXGA (1600×1200)/60Hz, SXGA (1280×1024)/60Hz, 720P (1280×720)/60Hz |
| VGA Output | 1-ch, 1080P (1920×1080)/60Hz, UXGA (1600×1200)/60Hz, SXGA (1280×1024)/60Hz, 720P (1280×720)/60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Decoding Format | H.265+, H.265, H.264+, H.264, MPEG4 |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Decoding Capability | AI&4K Off: 8-ch@1080p(30fps); AI/4K On: 6-ch@1080p(30fps); camera resolution length or width (each track) cannot exceed 4096 pixels |
| Synchronous Playback | 8-ch |
| Remote Connection | 32 |
| Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Network Interface | 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| PoE Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| PoE Power | ≤ 75W |
| PoE Standard | IEEE 802.3 af/at |
| SATA | 1 |
| HDD Capacity | Up to 8TB capacity for each disk |
| USB Interface | 2 × USB 2.0 |
| Power Supply | 48 VDC or ≤ 90W |
| Consumption | ≤ 10 W (without enabling PoE) |
| Working Temperature | -10 to +55° C (14 to 131° F) |
| Working Humidity | 10 to 90 % |
| Chassis | 1U |
| Dimension (W × D × H) | 263 × 223 × 48 mm (10.34" × 8.76" × 1.9") |
| Weight | ≤ 1.5 kg (3.3 lb) |
| CE | 55032/55035/61000-3-2/61000-3-3/50130-4 |
