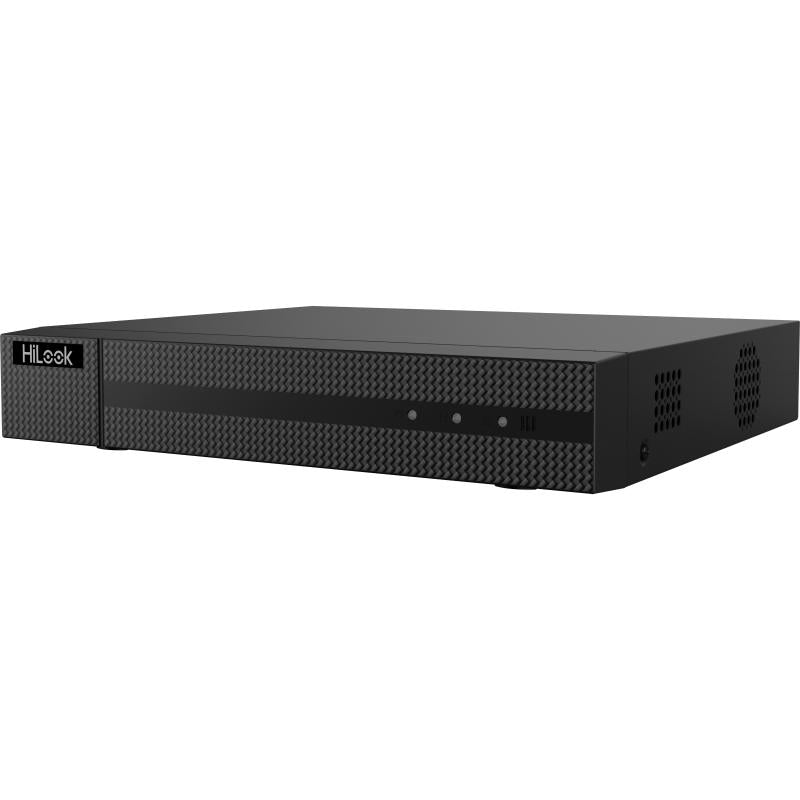

HiLook DVR-208U-M1/T 5MP AcuSense Digital Video Recorder, 8 Channels
Free Delivery
£
162
45
(Incl. VAT)
Storage Size: None
Storage Size: 4TB (1 x 4TB Western Digital)
Storage Size: 8TB (1 x 8TB Western Digital)
Storage Size: 2TB (1 x 2TB Western Digital)
Storage Size: 6TB (1 x 6TB Western Digital)
Storage Size: 10TB (1 x 10TB Western Digital)
About this product
The HiLook DVR-208U-M1/T is an 8-ch 5MP 1U H.265 AcuSense DVR for HD analogue and IP CCTV systems, taking 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP) across 8-ch of analogue video input plus IP camera inputs. It records up to 4K/8MP @ 8fps or 3K/5MP @12fps, has 1 SATA interface with up to 10 TB capacity for each disk, and uses deep learning-based motion detection 2.0 to classify human and vehicle.
Key features
- 8-ch analogue video input over BNC, supporting coaxitron connection
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- IP video input of 4-ch (up to 12-ch), or 8-ch (up to 16-ch) with Enhanced IP mode on, up to 8 MP resolution
- Encoding up to 4K/8MP @ 8fps; 3K/5MP @12fps
- Motion detection 2.0 classifies human and vehicle on all analogue channels
- 1 SATA interface, up to 10 TB capacity for each disk
- HDMI output up to 4K (3840 × 2160)/30Hz, with HDMI/VGA simultaneous output
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
Frequently asked questions
How many hard drives does the DVR-208U-M1/T take, and how large can the drive be?
It has 1 SATA interface, with up to 10 TB capacity for each disk.
Which cameras work with the DVR-208U-M1/T?
It takes 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP): 8-ch of analogue video input over BNC, plus IP video input of 4-ch (up to 12-ch), or 8-ch (up to 16-ch) with Enhanced IP mode on, from H.265+/H.265/H.264+/H.264 IP cameras.
What resolution and frame rate does it record at?
Encoding ability is up to 4K/8MP @ 8fps or 3K/5MP @12fps; on the main stream it records 4 MP@15 fps and 1080p at 25 fps (P)/30 fps (N).
Does the DVR-208U-M1/T reduce false alarms?
Yes. Deep learning-based motion detection 2.0 is enabled by default for all analogue channels, classifying human and vehicle to reduce false alarms caused by objects like leaves and lights, and quick search by object or event type is supported.
What power does it need?
It runs from 12 VDC, 2 A, with consumption of ≤ 15 W without HDD.
What monitor outputs does it have?
A 1-ch HDMI output up to 4K (3840 × 2160)/30Hz and a 1-ch VGA output up to 1920 × 1080/60Hz, with HDMI/VGA simultaneous output.
£
162
45
Price
Technical Details
Specifications
Brand
HiLook
Model
DVR-208U-M1/T
Manufacturer Part Number (MPN)
DVR-208U-M1/T
Human/Vehicle Analysis
Deep learning-based motion detection 2.0, enabled by default for all analog channels; classifies human and vehicle
IP Video Input
4-ch (up to 12-ch); Enhanced IP mode on: 8-ch (up to 16-ch), each up to 4 Mbps; up to 8 MP resolution; supports H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
8-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input
8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20 fps, 2K(2304x1296)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30 fps
AHD Input
5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30fps
HDCVI Input
8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30 fps
CVBS Input
PAL/NTSC
HDMI Output
1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode
HDMI/VGA simultaneous output
Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ); 4-ch via coaxial cable
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Synchronous Playback
8-ch
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate (main stream)
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps; 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Frame Rate (sub-stream)
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate
32 Kbps to 10 Mbps
Dual-Stream
Support
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Total Bandwidth
128 Mbps
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Remote Connection
64
Network Interface
1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Wi-Fi
Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
SATA
1 SATA interface
HDD Capacity
Up to 10 TB capacity for each disk
USB Interface
Rear panel: 2 × USB 2.0
Power Supply
12 VDC, 2 A
Consumption
≤ 15 W (without HDD)
Working Temperature
-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
263 × 225 × 48 mm (10.3 × 8.8 × 1.9 inch)
Weight
≤ 1.6 kg (without HDD, 3.5 lb.)
Specifications
| Brand | HiLook |
|---|---|
| Model | DVR-208U-M1/T |
| Manufacturer Part Number (MPN) | DVR-208U-M1/T |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0, enabled by default for all analog channels; classifies human and vehicle |
| IP Video Input | 4-ch (up to 12-ch); Enhanced IP mode on: 8-ch (up to 16-ch), each up to 4 Mbps; up to 8 MP resolution; supports H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | 8-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI Input | 8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20 fps, 2K(2304x1296)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30 fps |
| AHD Input | 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30fps |
| HDCVI Input | 8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30 fps |
| CVBS Input | PAL/NTSC |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ); 4-ch via coaxial cable |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input) |
| Synchronous Playback | 8-ch |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate (main stream) | 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps; 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) |
| Frame Rate (sub-stream) | WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Video Bitrate | 32 Kbps to 10 Mbps |
| Dual-Stream | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Total Bandwidth | 128 Mbps |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP |
| Remote Connection | 64 |
| Network Interface | 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Wi-Fi | Connectable to Wi-Fi network by Wi-Fi dongle through USB interface |
| SATA | 1 SATA interface |
| HDD Capacity | Up to 10 TB capacity for each disk |
| USB Interface | Rear panel: 2 × USB 2.0 |
| Power Supply | 12 VDC, 2 A |
| Consumption | ≤ 15 W (without HDD) |
| Working Temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 263 × 225 × 48 mm (10.3 × 8.8 × 1.9 inch) |
| Weight | ≤ 1.6 kg (without HDD, 3.5 lb.) |
