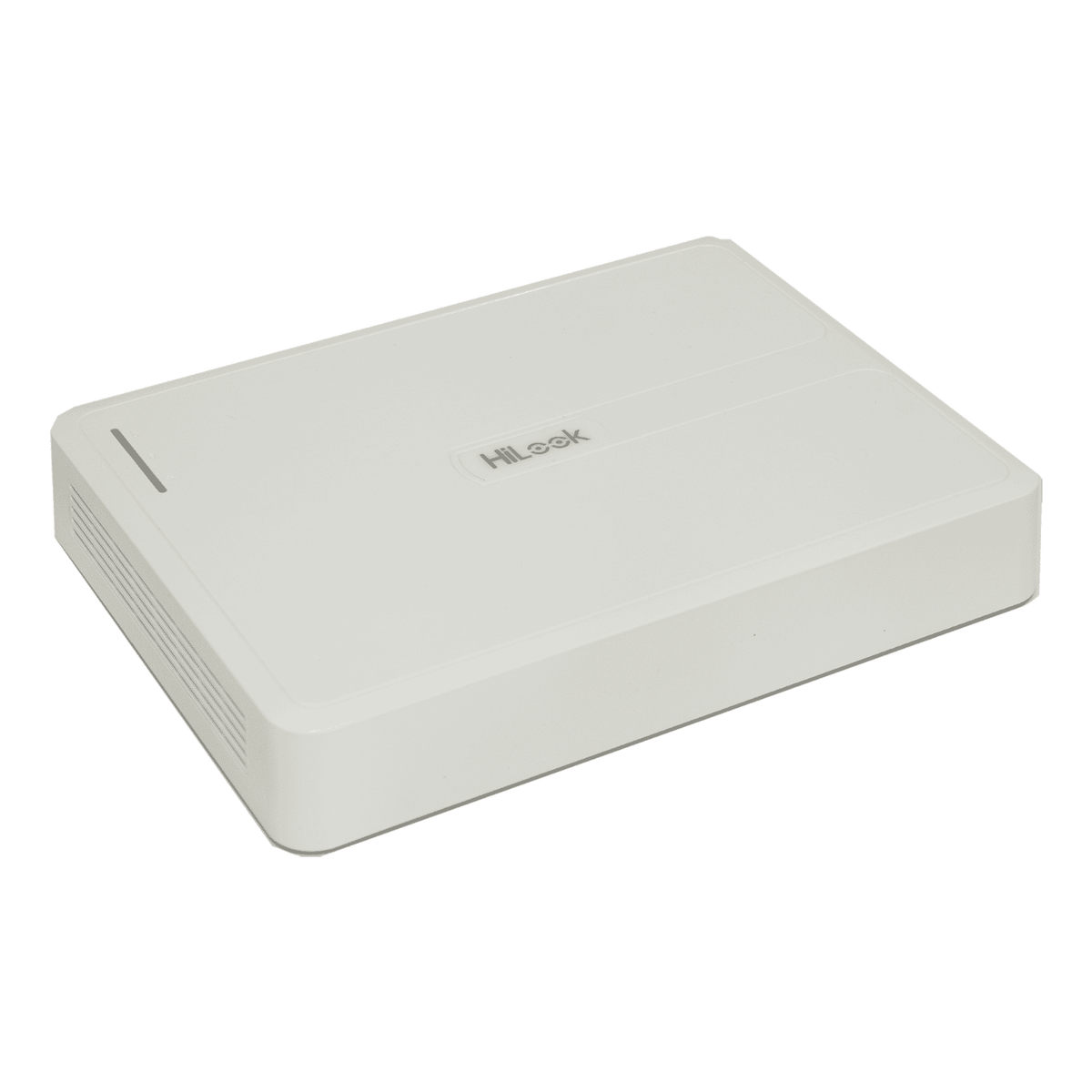

HiLook DVR-116G-M1/T 16-Ch Hybrid Turbo-HD DVR, 1080P-Lite, H.265 Pro+, 1×SATA

Introduction to the HiLook DVR-116G-M1/T and its key features

Overview:The HiLook DVR-116G-M1/T is a compact 16-channel hybrid Turbo-HD digital video recorder (DVR) from the HiLook 1080P-Lite series. Designed for small businesses, offices and residential installations that need a low-cost yet capable video recorder, this model supports mixed analogue and IP camera deployments, efficient H.265-family compression, and an AI-enhanced Motion Detection 2.0 (human/vehicle classification) to reduce false alarms and speed up event searches.

Key selling points include support for 16 analogue BNC inputs plus up to 18 IP channels, H.265 Pro+ compression to lower storage and bandwidth needs, simultaneous HDMI and VGA outputs up to 1920×1080, and a compact mini 1U chassis that keeps installation tidy.

Detailed specifications and the benefits they deliver

The DVR packs a set of practical specifications aimed at common SME CCTV deployments. Below are the main specifications grouped by function and the benefits each brings to real-world installations.

• Analogue inputs:16 × BNC (supports HD‑TVI/AHD/CVI/CVBS; coaxitron supported). Benefit: allows reuse of existing analogue cameras and gradual migration to IP without replacing all cameras at once.
• IP inputs:Up to 18 channels (up to 5 MP). Benefit: flexibility to add higher-resolution IP cameras for critical areas while keeping other channels analogue.
• Compression:H.265 Pro+/H.265 Pro/H.265 and H.264+/H.264. Benefit: H.265 Pro+ reduces storage usage and bandwidth compared with legacy codecs, lowering long-term costs for HDDs and remote viewing.
• Encoding capability:Up to 1080p Lite @ 15 fps on main stream (model modes vary). Benefit: sufficient resolution for many retail and office applications where full 1080p at higher frame rates is not mandatory.
• Playback:16-channel synchronous playback. Benefit: quick review of multi-camera incidents without cycling individual channels.

• Video outputs:HDMI + VGA simultaneous outputs (up to 1920×1080). Benefit: connect to a wall display and a local monitor at the same time for flexible monitoring setups.
• Audio:Audio over coax for analogue channels (16ch), plus 1 × RCA audio input and 1 × RCA audio output; two-way audio supported on primary input. Benefit: basic audio capture and intercom capability where required.

• SATA:1 × SATA (single HDD). Benefit: a simple internal storage option for recordings; easy to replace or upgrade the drive.
• Note: confirm region limitations before specifying HDDs for extended retention.
• USB:2 × USB 2.0. Benefit: export clips and connect a mouse for local operation.
• Network:1 × RJ‑45 10/100 Mbps; remote connections up to 128. Benefit: remote monitoring and management are supported for small teams and installers.
• Power:12 VDC, 2 A; power consumption ≤ 7 W (without HDD). Benefit: low power draw reduces ongoing operational costs and simplifies power provisioning.

• Chassis:Mini 1U (≈ 285 × 210 × 45–48 mm). Benefit: compact footprint fits small racks, cabinets or shelf mounting.
• Operating range:−10 °C to 55 °C, 10%–90% RH. Benefit: works in typical indoor environments for retail, office and light industrial use.
• Smart features:Motion Detection 2.0 (human/vehicle classification) and quick search by object/event type. Benefit: fewer false alarms and faster forensic searches, saving time for operators.

Use cases and scenarios where the DVR excels

The HiLook DVR-116G-M1/T is built for situations where cost, simplicity and mixed camera systems are key requirements. Typical deployments include:

• Small retail stores:Use analogue cameras to cover entrances, counters and aisles while adding 1–2 IP cameras for high-value areas. H.265 Pro+ reduces storage needs for continuous recording and Motion Detection 2.0 cuts false alarms from moving displays and staff.
• Offices and professional suites:Monitor shared reception areas, hallways and parking. The compact chassis and low power draw make it suitable for closet or under-desk installation.
• Small warehouses and light industrial:Hybrid support allows older analogue cameras to remain in place while new IP cameras are added to monitor loading docks or critical storage zones.
• Multi-room residential or small apartment blocks:Owners can centralise recording for multiple flats, using analogue cameras for corridors and IP cameras for entrance gates.
• Temporary or staged systems:Low cost and simple setup make it a practical choice for short-term installations where quick deployment and later migration are planned.

How it compares with similar products on the market

When evaluating the DVR-116G-M1/T, consider how hybrid DVRs differ from pure NVRs and from other DVR models:

• Hybrid DVR vs NVR:Hybrid DVRs like this HiLook unit accept both analogue and IP cameras, making them ideal for phased upgrades. Pure NVRs handle IP cameras only and can offer higher resolution options and PoE convenience but require all-IP camera fleets.
• H.265 Pro+ advantages:Compared to older H.264 systems, H.265 variants reduce storage and bandwidth significantly. H.265 Pro+ is an optimized implementation that balances compression and playback efficiency for budget recorders.
• Compared to higher-end DVRs/NVRs:The DVR-116G-M1/T is designed for cost-sensitive projects. It provides core features (AI motion filtering, mixed inputs, efficient codecs) but lacks multi-HDD redundancy, higher throughput for many high-resolution IP streams, and advanced enterprise features found in larger Hikvision/third-party enterprise NVRs.
• Compared to other HiLook models:The 16-channel capacity is a sweet spot for many small sites. Smaller 4/8-channel models are cheaper but offer less scalability, while higher-end models may provide RAID, multiple SATA bays or larger network throughput for numerous high-res IP cameras.

Conclusion — why the HiLook DVR-116G-M1/T is a strong choice

For small businesses and homeowners who need a cost-effective, flexible recorder, the HiLook DVR-116G-M1/T is an attractive option. The combination of 16 analogue inputs plus the ability to add IP channels gives installers a practical migration path, while the synchronous 16-channel playback and simultaneous HDMI/VGA outputs make daily monitoring and incident review straightforward.

Before specifying the unit, confirm region-specific details such as maximum supported HDD size and the latest firmware from official product resources. If your site needs multi-drive redundancy, very high IP camera counts or full 4K recording across many channels, consider stepping up to a higher-tier model or a dedicated NVR.
